2002 Lexus LS430
Strut

This is a Arnott Industries Strut (Note: Arnott Industries New). This Strut is guaranteed to fit your 2002 Lexus LS430 . SKU number 75-23693-AI

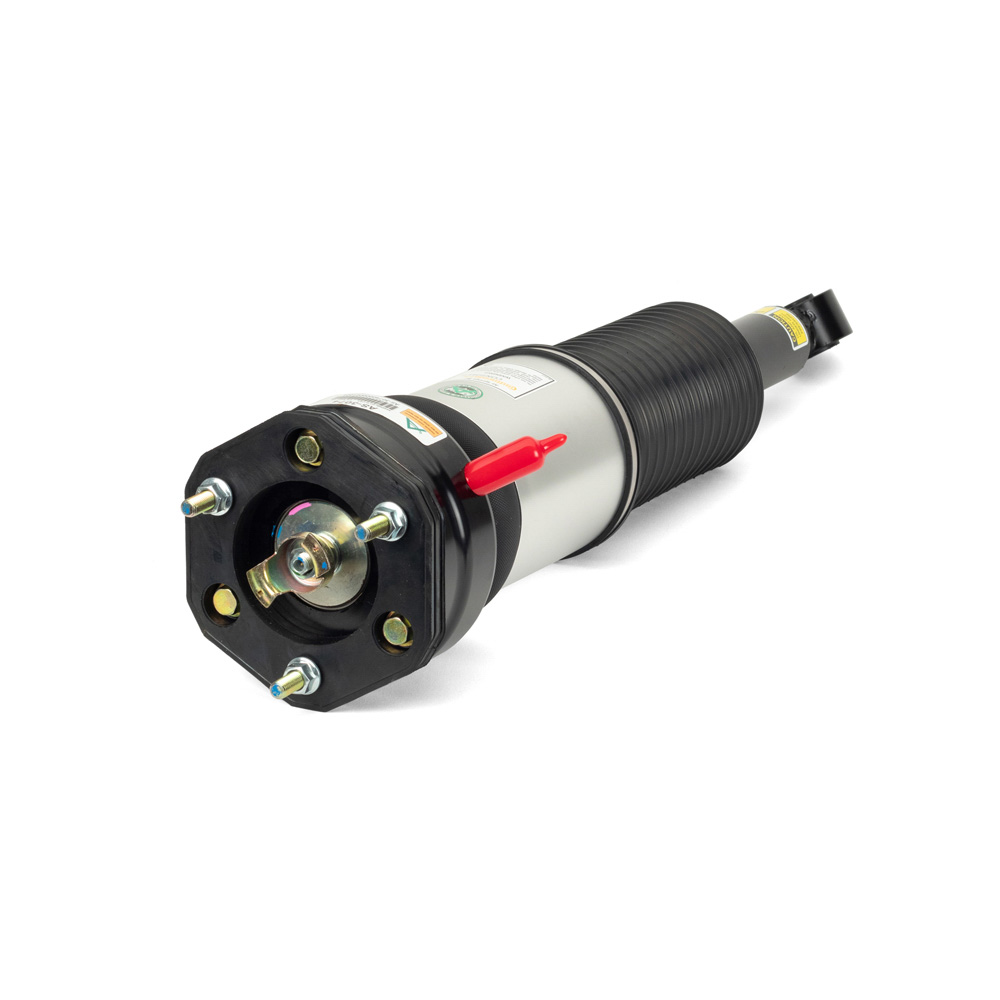

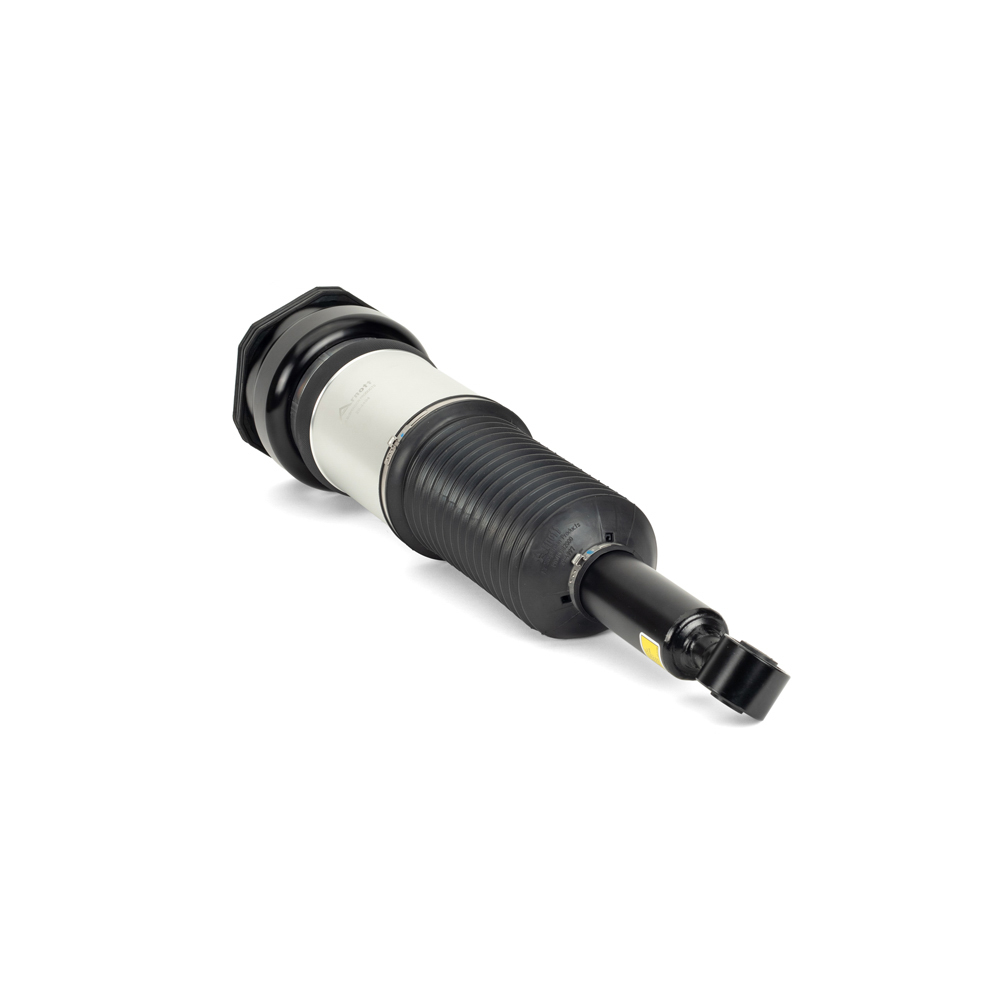

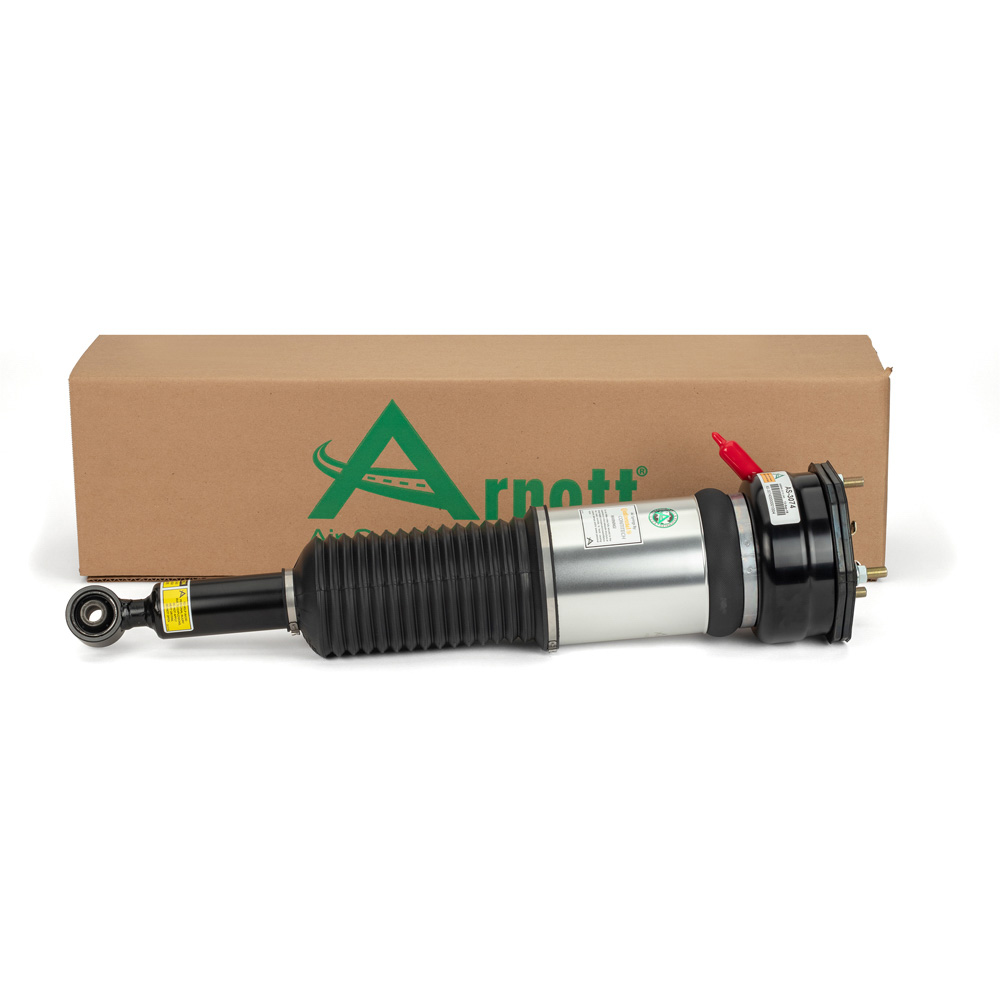

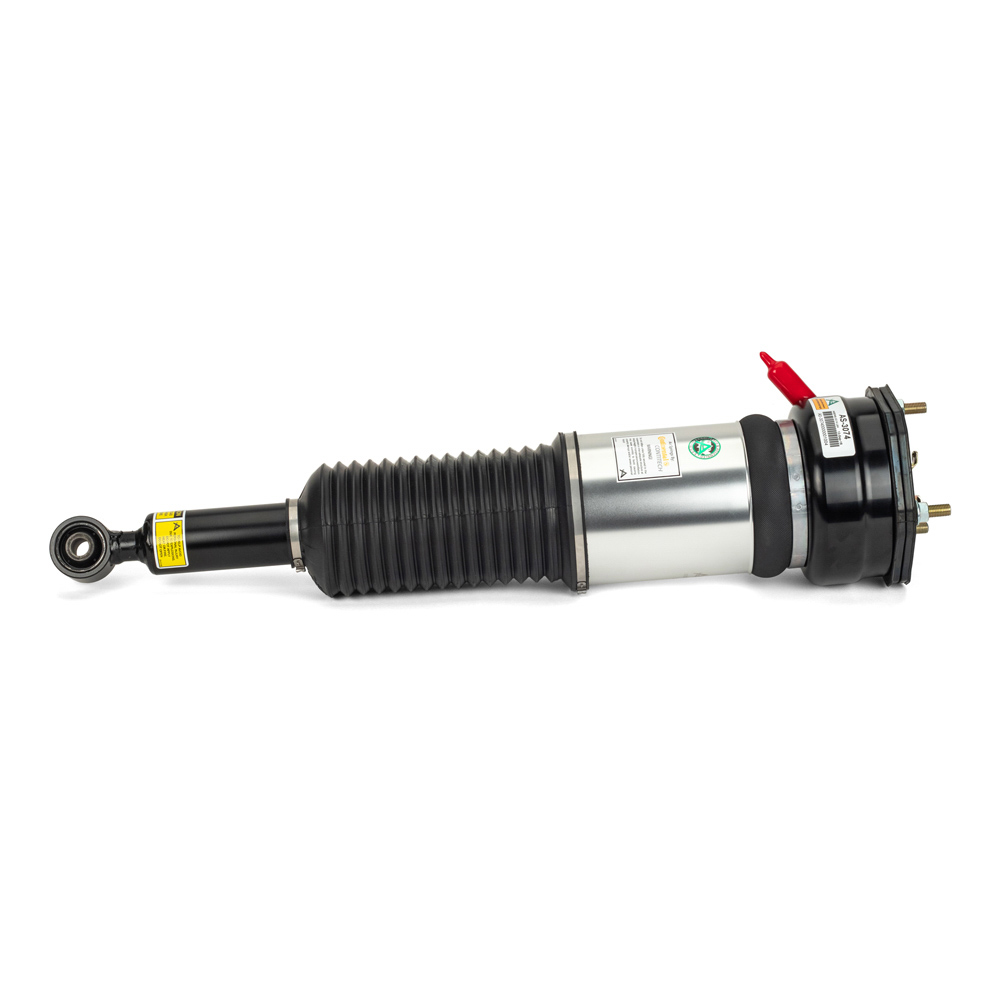

AS-3074 is an Arnott engineered new air suspension strut for the Rear Left side of the 2001-2006 Lexus LS 430 (UCF30 Chassis) with the Height Adjustable Suspension option including the LS Ultimate Luxury edition. This new assembly replaces the O.E. strut and features a new, not remanufactured, custom- tuned shock absorber valved to provide the luxury ride LS owners expect. The Arnott strut features a new heavy-duty air bladder from ContiTech which is protected by an aluminum can along with a CNC-machined top mount made from aircraft-quality aluminum and special rubber coated steel vibration isolator plates. This new air strut is assembled in the USA with Arnott's long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, OE style quick connect air fitting and a dust boot to protect the shock.

Travel Length - 184 MM; Compressed Length - 400 MM; Extended Length - 584 MM; Contents - Air Shock Assembly; Mounting Hardware; Boot Color - Black; Body End Measuring Point - Center Eye; Internal Damper Type - Hydraulic; Lower Mount Type - Loop/Eyelet; Coil Over Springs Included - N/A; Dust Shield Material - N/A; Adjustable - No; Spring Seat Included - No; Progressive Spring Rate - Progressive; Spring Rate Type - Progressive; Air Bladder Material - Rubber; Shock Absorber Rod End Measuring Point - Shoulder of Stud; Grade Type - Standard; Upper Mount Type - Stud; Internal Construction Type - Twin-tube; Shock/strut Design - Twin-tube; Air Adjustable - Yes; Air Bladder - Yes; Air Ride Suspension - Yes; Bearing Plate Included - Yes; Boot/dust Shield Included - Yes; Heavy Duty Crimping Rings - Yes; Mounting Hardware Included - Yes; Protective Aluminum Can - Yes; Shock Spring Assisted - Yes; Spring Isolators Included - Yes; Springs Included - Yes; Upper Mounting Isolator Included - Yes
