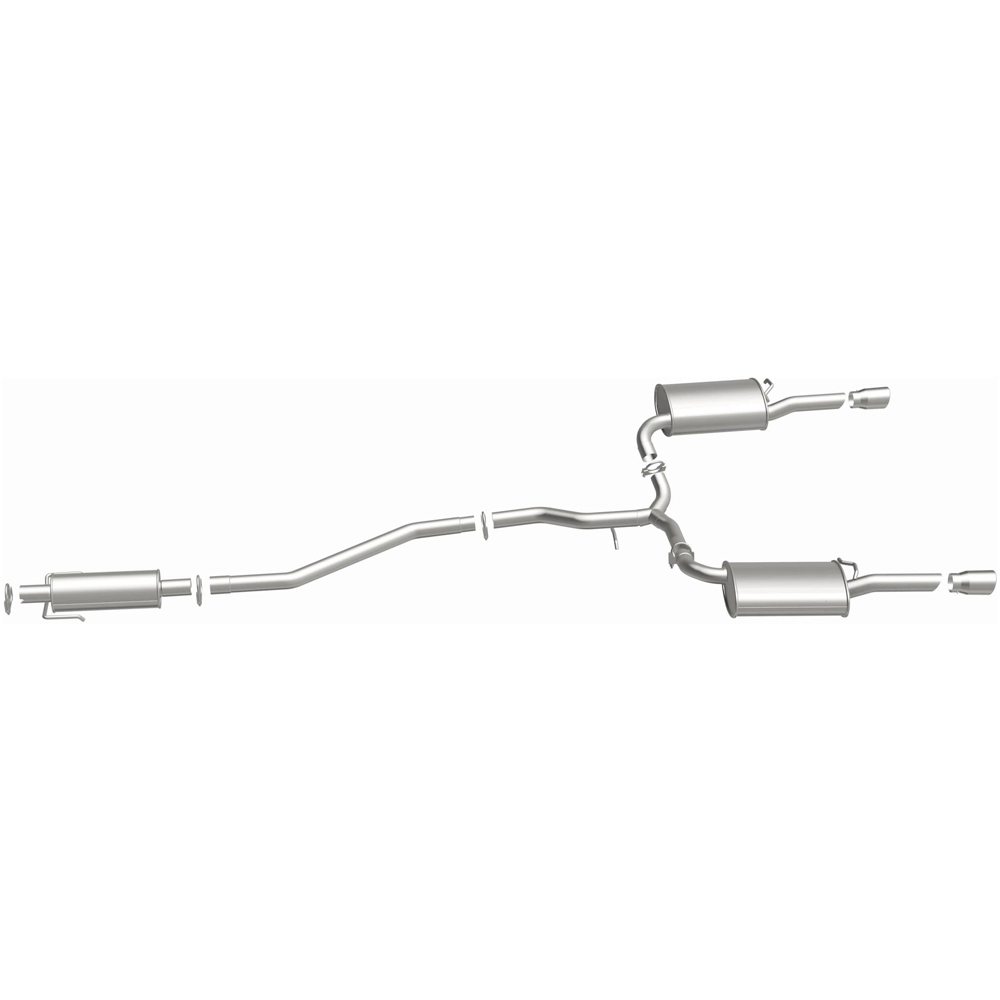

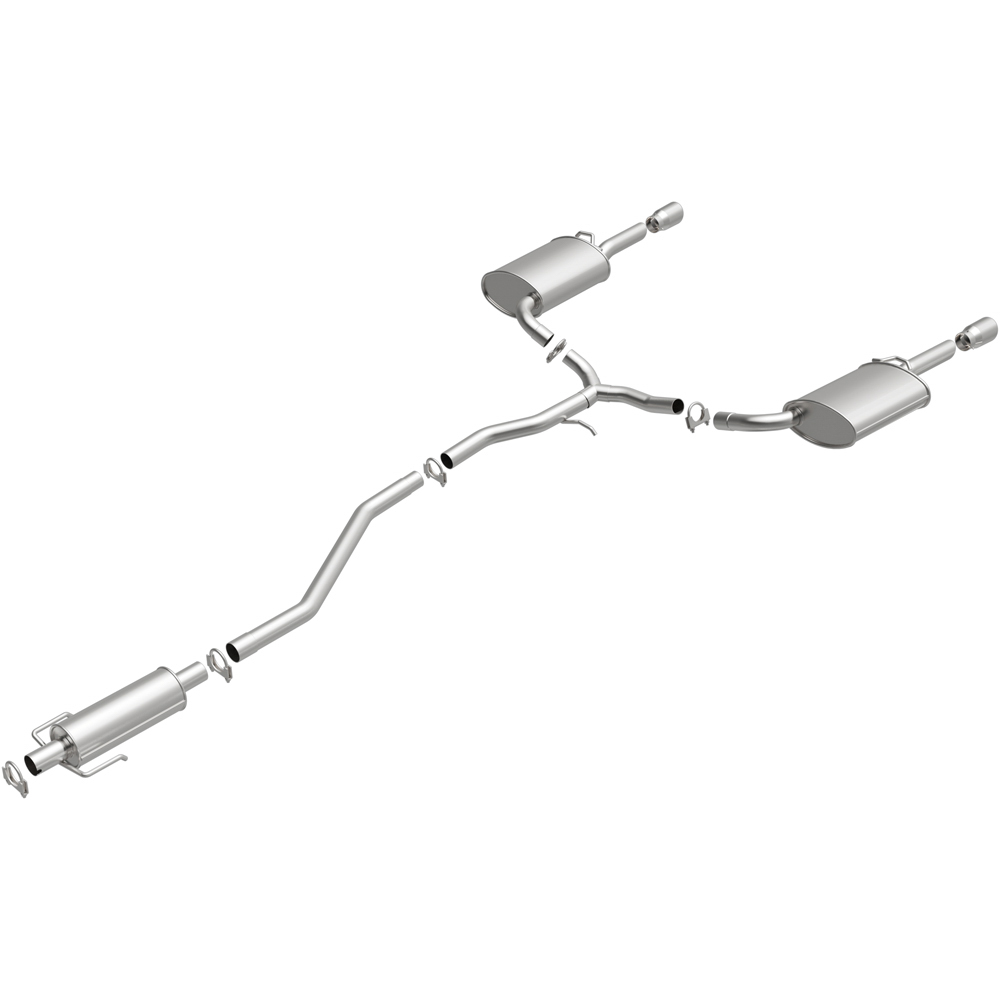

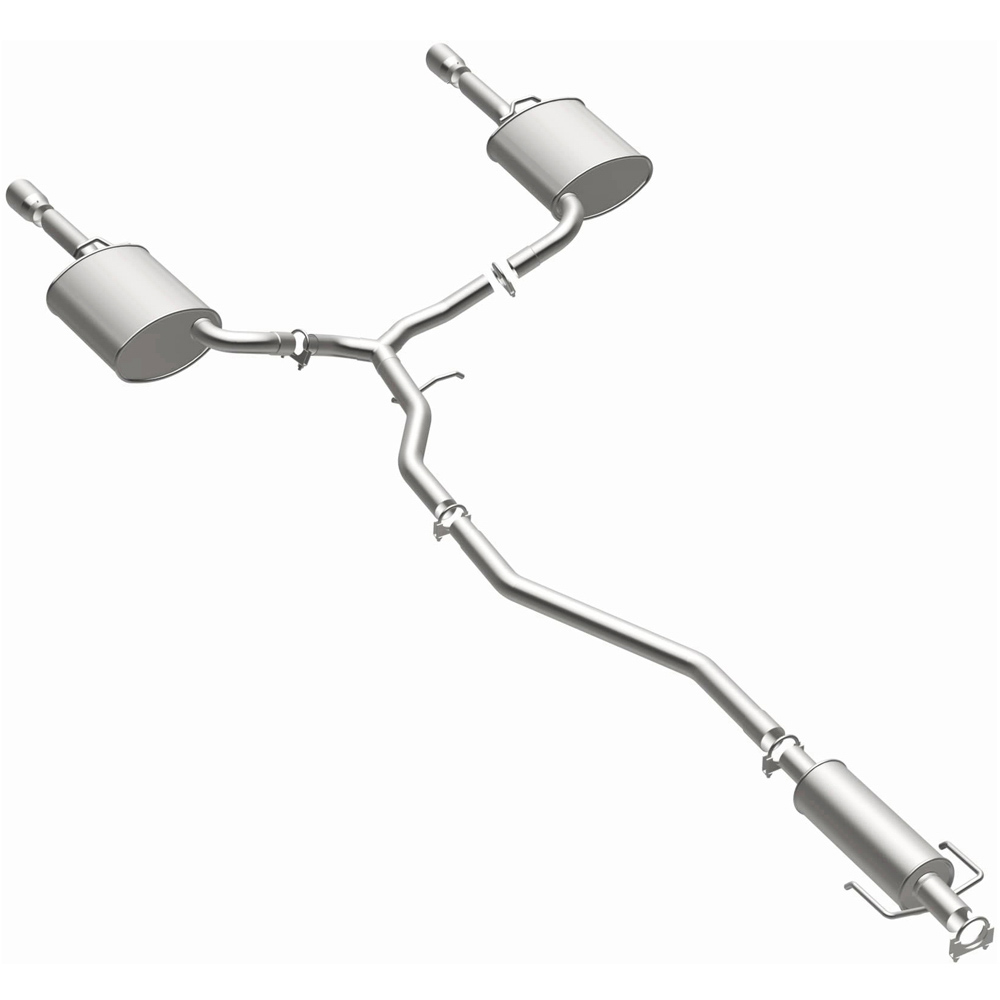

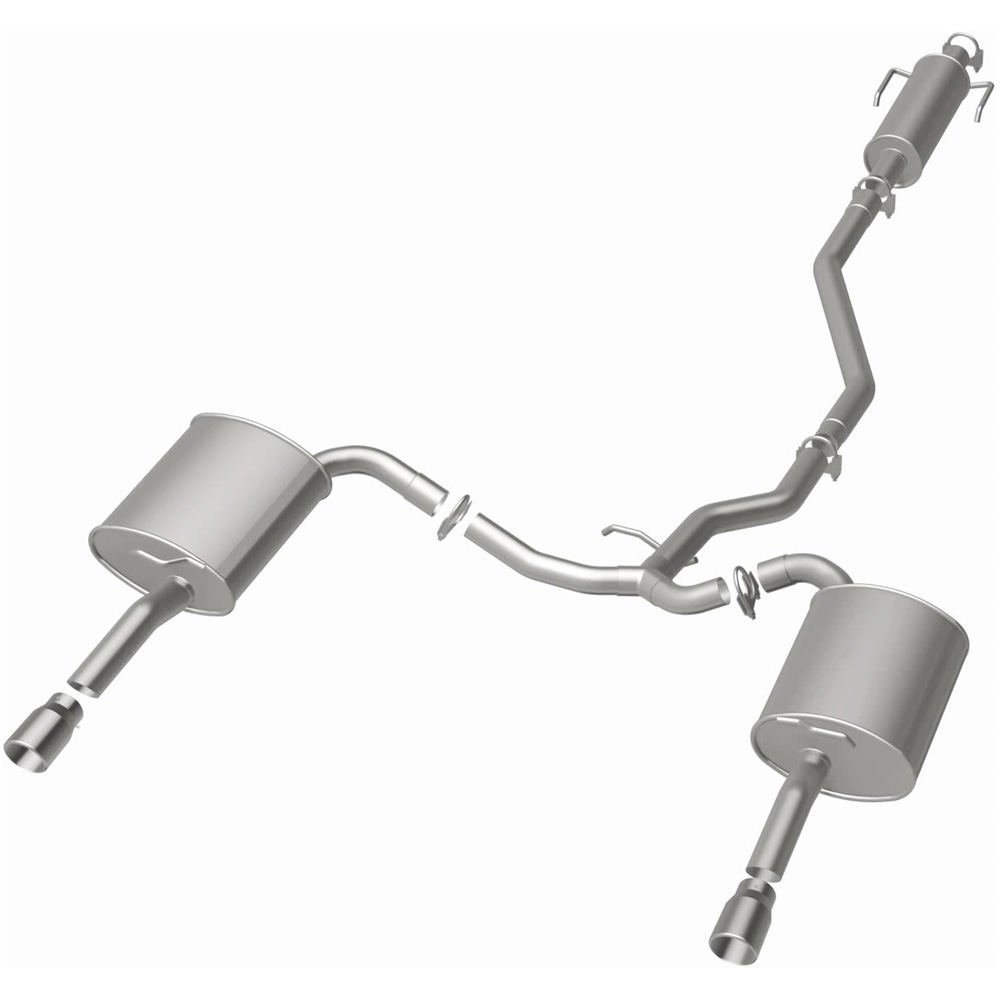

2012 Ford Fusion
Exhaust System Kit

This is a BRExhaust Exhaust System Kit (Note: BRExhaust Replacement Exhaust System). This Exhaust System Kit is guaranteed to fit your 2012 Ford Fusion . SKU number U8-40507-BRE

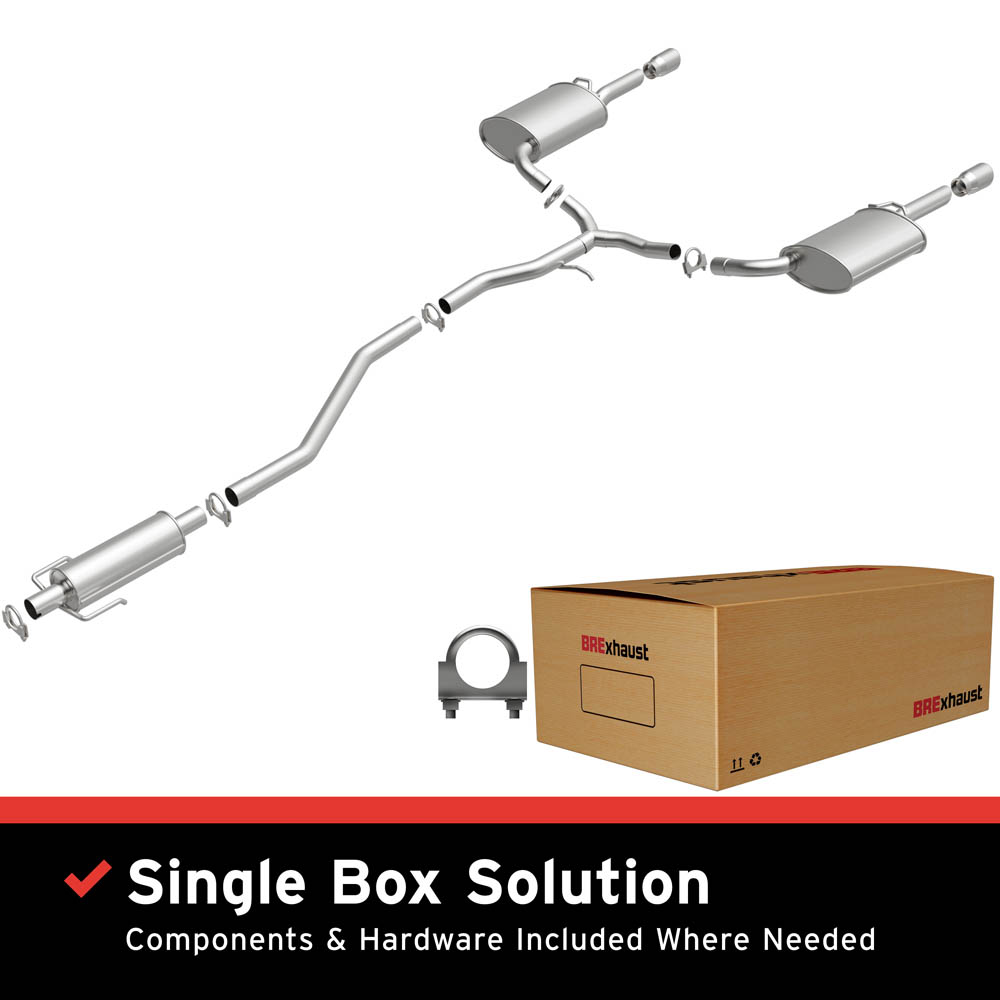

BRExhaust Direct-Fit Replacement Exhaust Kit 106-0642 takes the guesswork out of replacing your exhaust system while providing a reliable and high-quality alternative to the OEM exhaust. You will find all of the gaskets and clamps needed to get the job done in the carefully packaged box. 106-0642’s precision mandrel bent pipes facilitate superior exhaust flow compared to the crush-bent pipes commonly used in competing aftermarket replacement exhaust systems. The multi-piece, bolt-on design ensures the exhaust system is easy to install yourself and fits perfectly to help get you back on the road in no time. No bending or welding is required for installation. BRExhaust Direct-Fit Replacement Exhaust Kit 106-0642 includes (2) 2.125in. U-Bolt Clamps, (3) 2.25in. U-Bolt Clamps and interchanges with OE parts 6E5Z-5230-AB, 6E5Z-5230-BA, 7H6Z-5230-AA, 9E5Z-5230-F, 9H6Z-5230-B, AE5Z-5230-B. BRExhaust Direct-Fit Replacement Exhaust Kit 106-0642 features durable Aluminized Steel construction and is covered by a 2 year warranty.

Catalytic Converter Included - No; Clamping Type - U Bolt; Clamps Included - Yes; Exhaust Tip Diameter - 3 in.; Exhaust Tip Finish - Polished; Exhaust Tip Material - Stainless Steel; Exhaust Tip Quantity - 2; Exhaust Tip Shape - Slant-Cut; Exit Style - OEM Location; Finish - Satin; Gasket Or Seal Included - No; Grade Type - Regular; Hangers Included - Yes; Hardware Included - Yes; Inlet Type - Clamp On; Main Piping Diameter - 2.25 in.; Mounting Bracket Included - No; Muffler (Front) Body Height - 5 in.; Muffler (Front) Body Length - 9.75 in.; Muffler (Front) Body Width - 5 in.; Muffler (Rear Left) Body Height - 5 in.; Muffler (Rear Left) Body Length - 13.25 in.; Muffler (Rear Left) Body Width - 11 in.; Muffler (Rear Right) Body Height - 5 in.; Muffler (Rear Right) Body Length - 13.25 in.; Muffler (Rear Right) Body Width - 11 in.; Muffler Body Material - Aluminized Steel; Muffler Finish - Aluminized; Muffler Quantity - 3; Pipe Material - Aluminized Steel; Prop 65 Y/N - No; Spring Bolt Kit Included - No
