2012 Jaguar XJ
Strut

This is a Arnott Industries Strut (Note: Arnott Industries New). This Strut is guaranteed to fit your 2012 Jaguar XJ . SKU number 75-23599-AI

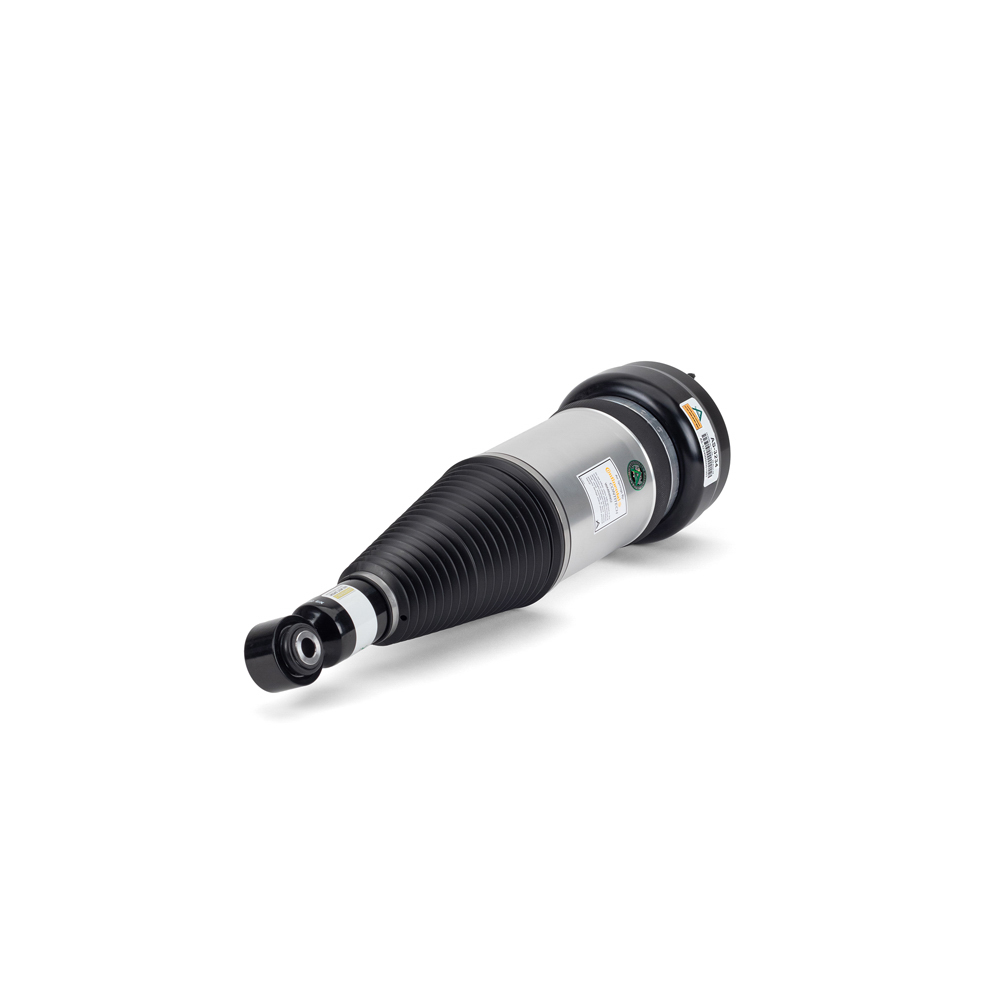

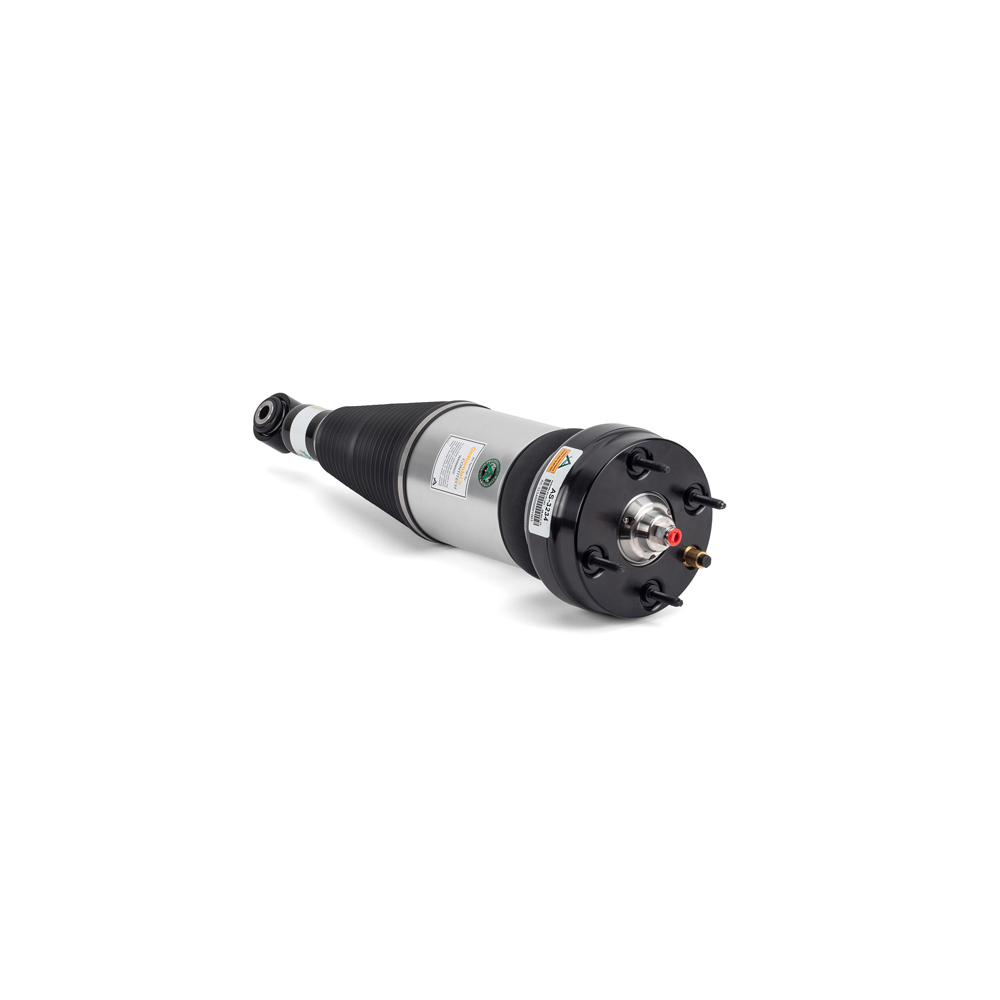

The Arnott designed new rear air strut AS-3234 for the 2011-2019 Jaguar XJ (X351 Chassis) fits both standard and long wheel base models equipped with rear or all-wheel drive. Arnott's struts which are completely new, and not remanufactured, bypass Jaguar's active damping and feature a custom-made and tuned premium monotube shock absorber designed to provide a responsive yet comfortable ride. The Arnott-designed strut eliminates many of the common high wear weaknesses of the OE strut such as the leaky upper seal, noisy upper mount, and the weak lower rubber seal. The Arnott strut is built with a new ContiTech air bladder, heavy duty crimping rings, polyurethane bump stop, O-Rings and new, OE-inspired, dampening coil.

Travel Length - 130 MM; Compressed Length - 340.6 MM; Extended Length - 470.6 MM; Contents - Air Shock Assembly; Air Fitting; Boot Color - Black; Body End Measuring Point - Center Eye; Internal Damper Type - Hydraulic; Lower Mount Type - Loop/Eyelet; Internal Construction Type - Monotube; Shock/strut Design - Monotube; Coil Over Springs Included - N/A; Dust Shield Material - N/A; Adjustable - No; Mounting Hardware Included - No; Spring Seat Included - No; Progressive Spring Rate - Progressive; Spring Rate Type - Progressive; Air Bladder Material - Rubber; Shock Absorber Rod End Measuring Point - Shoulder of Stud; Grade Type - Standard; Upper Mount Type - Stud; Air Adjustable - Yes; Air Bladder - Yes; Air Ride Suspension - Yes; Bearing Plate Included - Yes; Boot/dust Shield Included - Yes; Heavy Duty Crimping Rings - Yes; Protective Aluminum Can - Yes; Shock Spring Assisted - Yes; Spring Isolators Included - Yes; Springs Included - Yes; Upper Mounting Isolator Included - Yes
