2014 Mazda CX-5
Shock Absorber

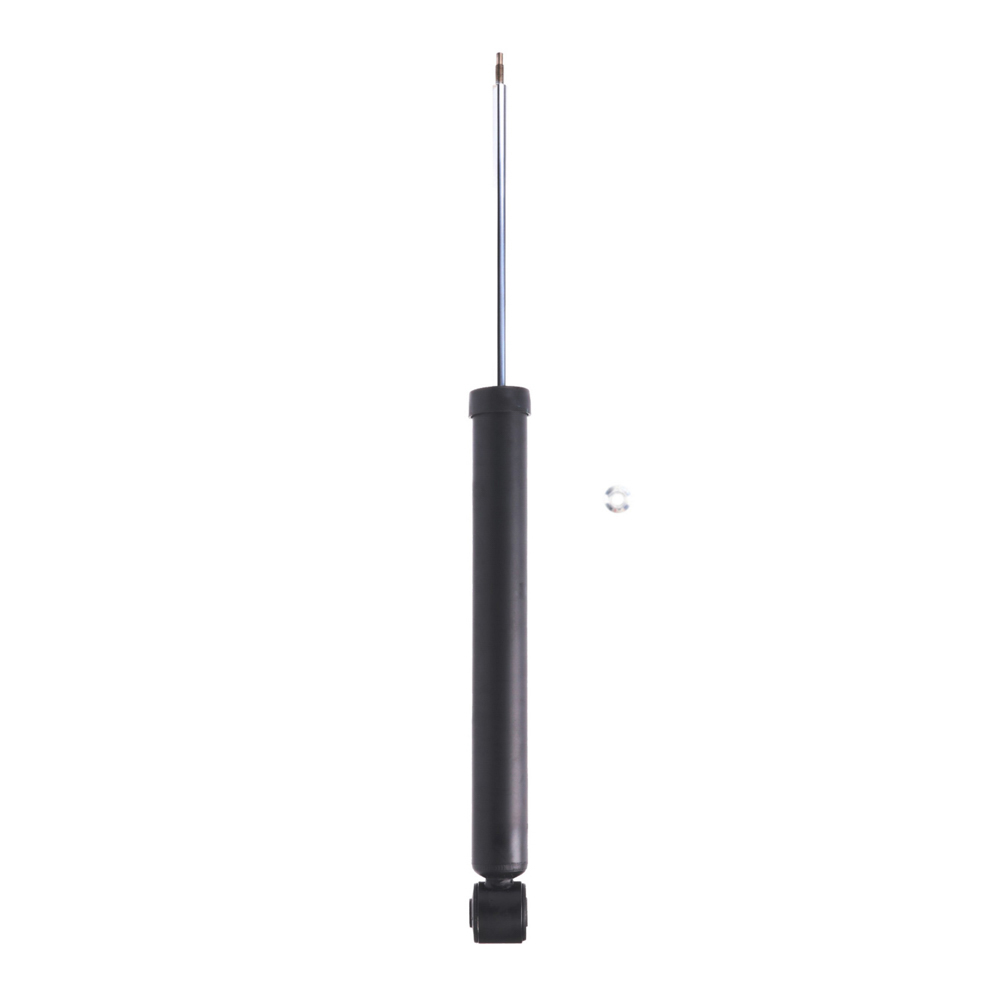

This is a Monroe Shocks & Struts Shock Absorber (Note: Monroe Shocks & Struts Brand). This Shock Absorber is guaranteed to fit your 2014 Mazda CX-5 . SKU number U8-14315-BCZC

Designed to deliver consistent performance, Monroe® Restore™ shock absorbers provide a high level of handling and control while filtering out noise, vibration and harshness. They are available for domestic and import passenger cars, light trucks and SUVs.

Compressed Length - 16.3 in.; Compressed Length - 414 mm; Extended Length - 26.09; Extended Length - 662.7 mm; Travel Length - 9.88 in.; Travel Length - 251 mm; Shock Stroke - 9.88 in.; Shock Stroke - 251 mm; Lower Mount Type - Loop (Eyelet) Bushing and Sleeve; Upper Mount Type - Stem; Shock Absorber Rod End Measuring Point - Base of Stem; Shock Absorber Body End Measuring Point - Center of Loop; Gas Charged - Yes; Mounting Hardware Included - No; Body Diameter - 1.77 in.; Body Diameter - 45 mm; Cylinder Outside Diameter - 1.77 in.; Cylinder Outside Diameter - 45 mm; Body Material - Steel; Cylinder Material - Steel; Body Color - Black; Color - Black; Finish - Painted; Cylinder Finish - Painted; Boot Included - No; Dust Shield Included - Yes; Dust Shield Material - PE; Rod Diameter - 0.487; Rod Diameter - 12.4 mm; Internal Rebound Spring - No; Internal Construction Type - Twin Tube; Grade Type - Premium; Type - Telescopic; Adjustable Damping - No; Active or Passive Suspension - Passive; Adjustable Compression - No; Adjustable Rebound - No; Valving Type - Progressive; Self-Leveling - No; Adjustable Ride Height - No; Air Adjustable - No; Air Ride Suspension - No; Bladder(s) Included - No; Bladder Sleeve(s) Included - No; Bladder Heavy Duty Crimping Rings Included - No; Coil Over Springs Included - No; Bearing Plate Included - No; Spring Included - No; Coil Spring Insulator(s) Included - No; Spring Isolators Included - No; Spring Seat Included - No; Remote Reservoir - No; Strut Mount Insulator(s) Included - No; New or Remanufactured - New
