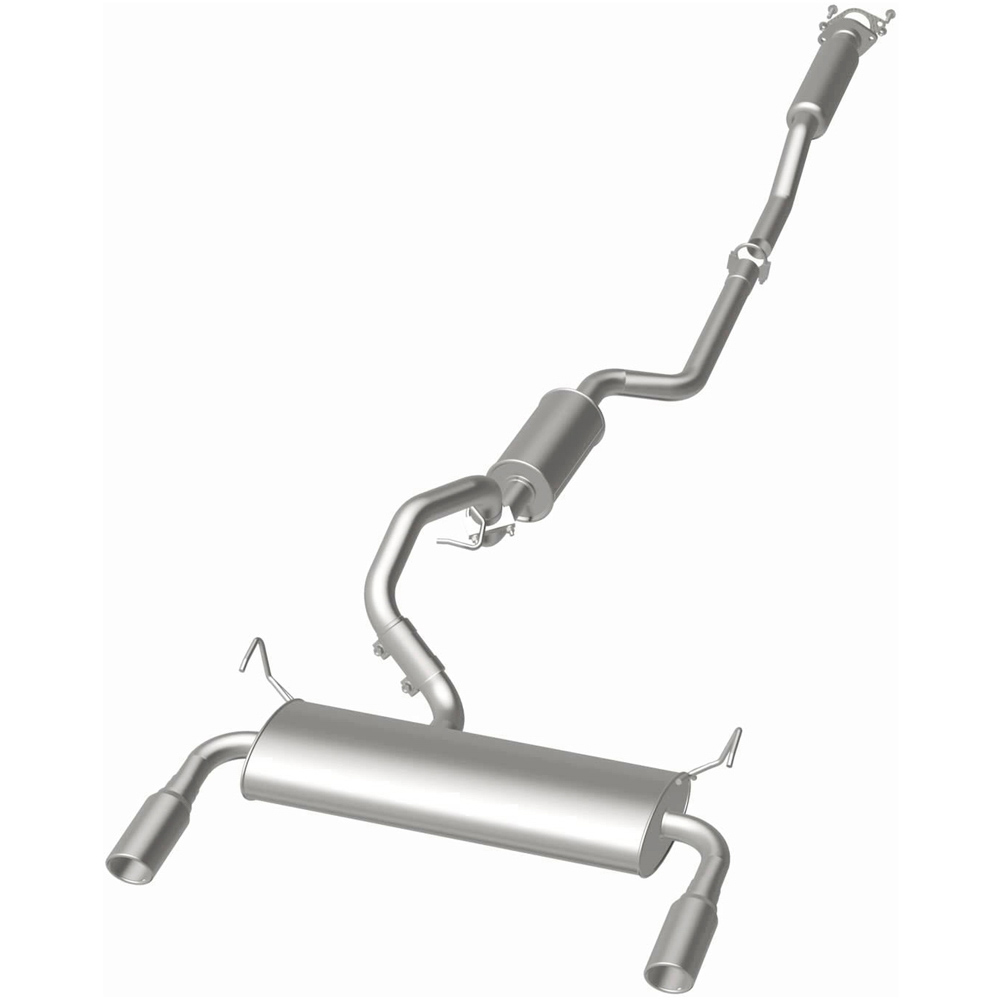

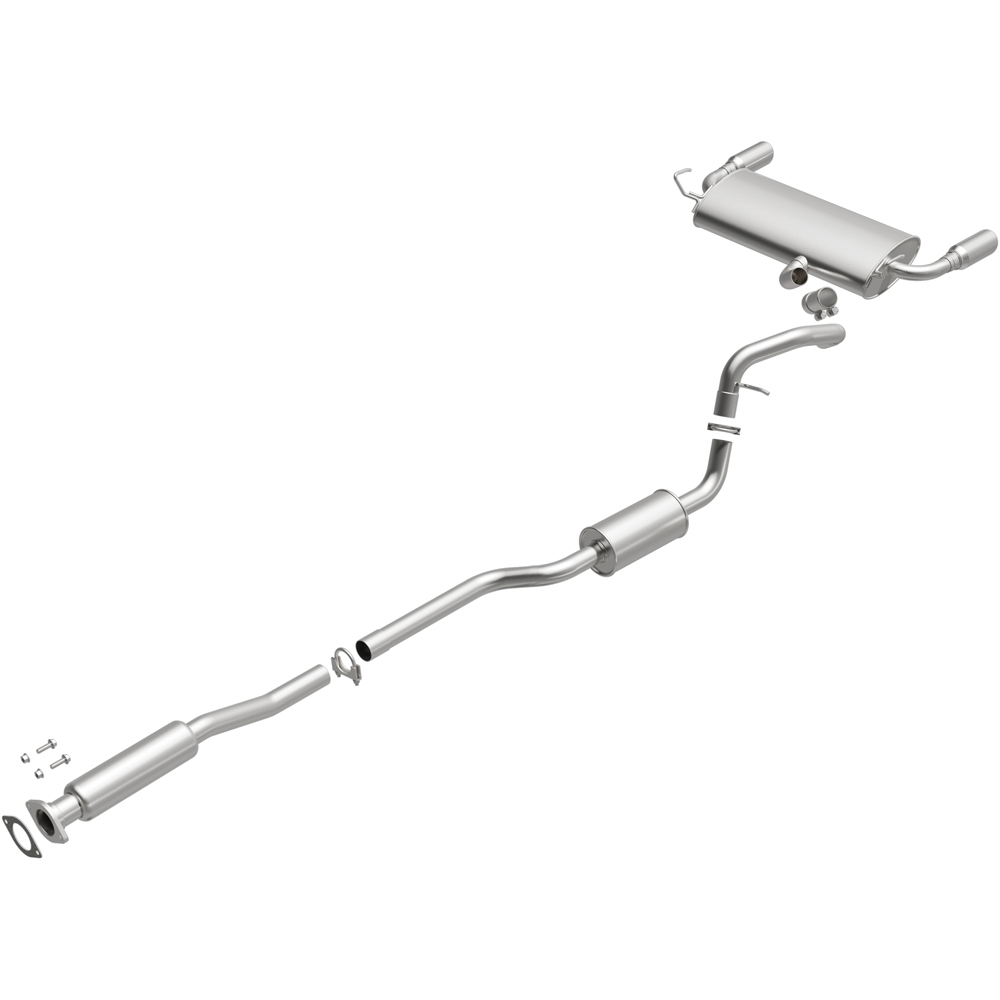

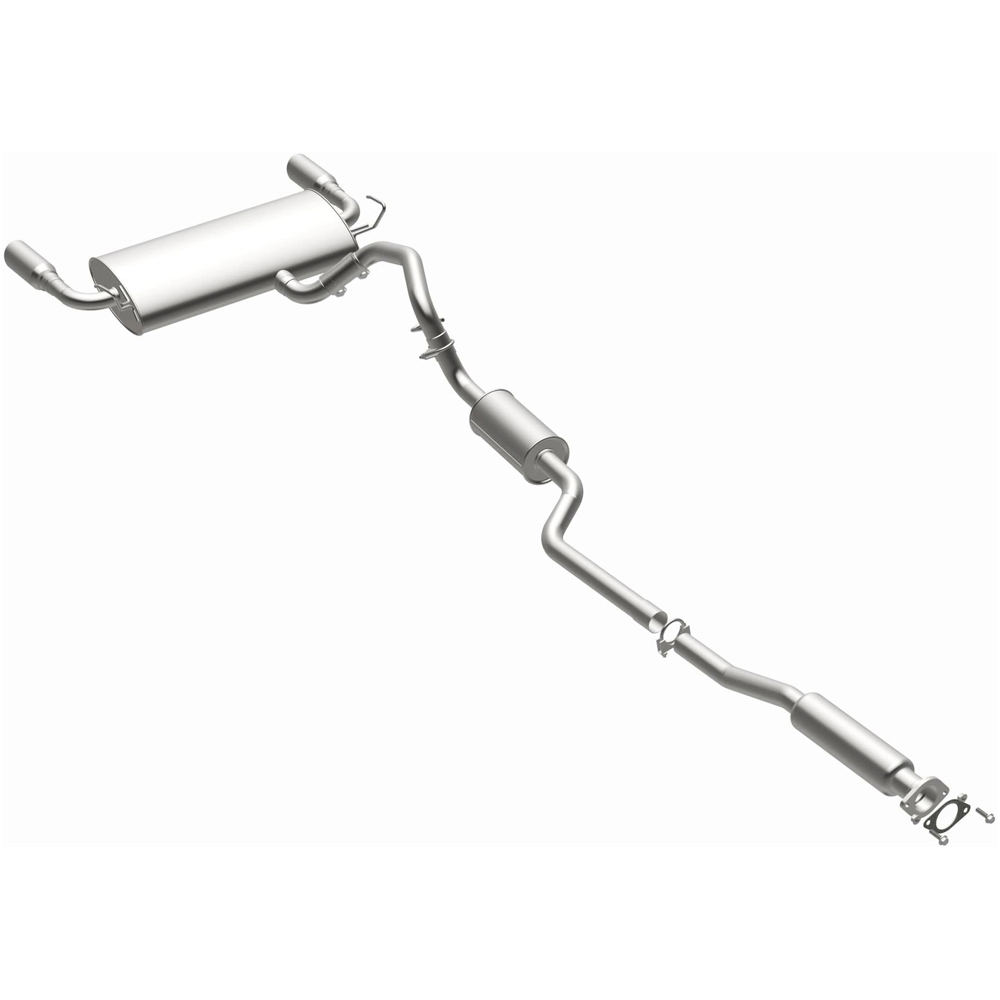

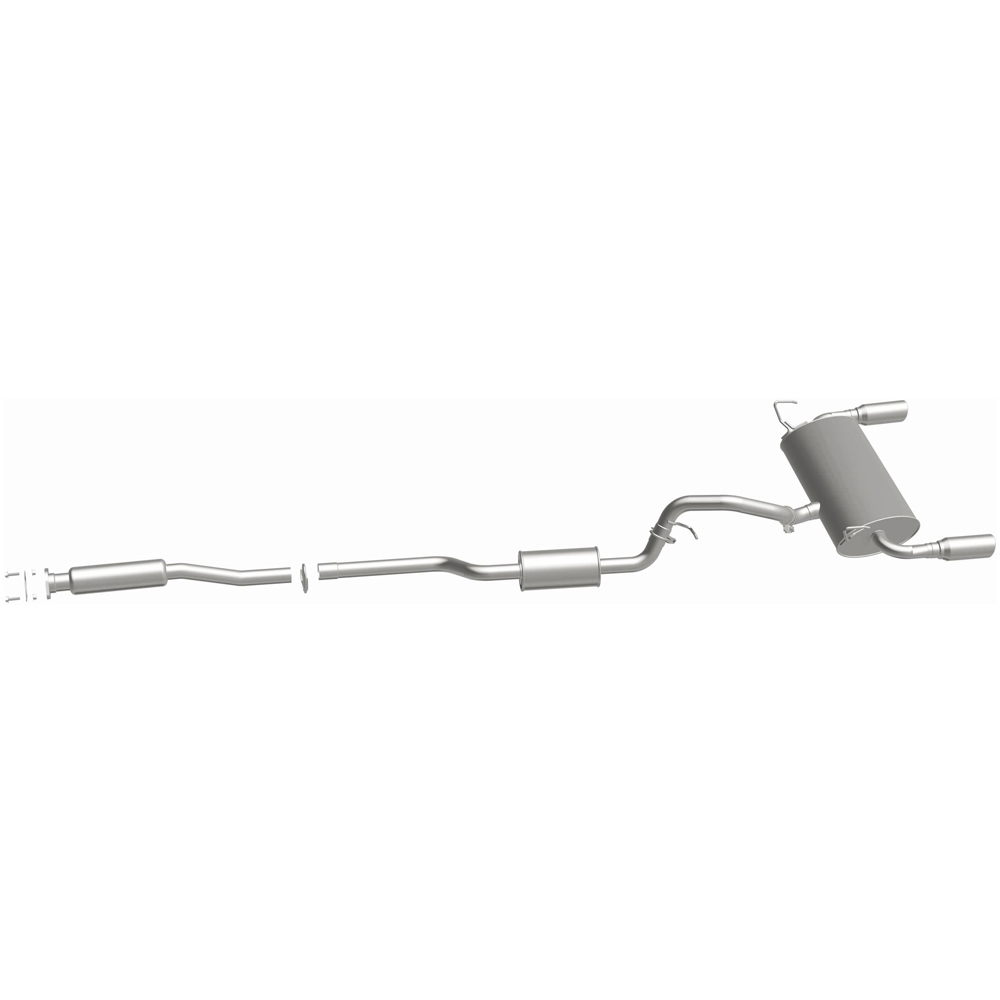

2016 Ford Escape
Exhaust System Kit

This is a BRExhaust Exhaust System Kit (Note: BRExhaust Replacement Exhaust System). This Exhaust System Kit is guaranteed to fit your 2016 Ford Escape . SKU number U8-40393-BRE

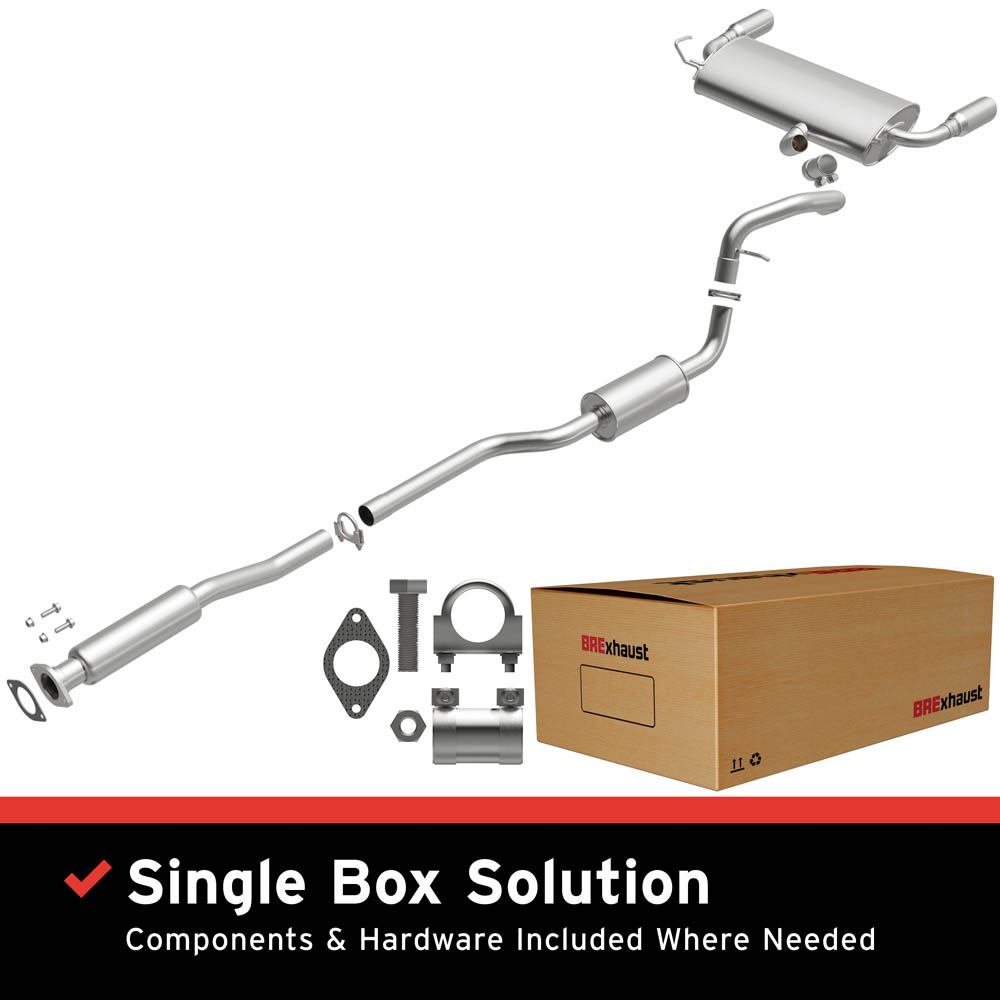

BRExhaust Direct-Fit Replacement Exhaust Kit 106-0504 takes the guesswork out of replacing your exhaust system while providing a reliable and high-quality alternative to the OEM exhaust. You will find all of the gaskets and clamps needed to get the job done in the carefully packaged box. 106-0504’s precision mandrel bent pipes facilitate superior exhaust flow compared to the crush-bent pipes commonly used in competing aftermarket replacement exhaust systems. The multi-piece, bolt-on design ensures the exhaust system is easy to install yourself and fits perfectly to help get you back on the road in no time. No bending or welding is required for installation. BRExhaust Direct-Fit Replacement Exhaust Kit 106-0504 includes (1) 2-Bolt Gasket, (2) 2.125in. U-Bolt Clamps, (1) 2.125in. Band Clamp, (2) Nuts, (2) Bolts and interchanges with OE parts CV6Z-5230-CJ, CV6Z-5230-Q, CV6Z-5230-S, CV6Z-5230-T, CV6Z-5230-X, CV6Z-5230-Y, CV6Z-5A289-C, CV6Z-5A289-D, CV6Z-5A289-E. BRExhaust Direct-Fit Replacement Exhaust Kit 106-0504 features durable Aluminized Steel construction and is covered by a 2 year warranty.

Catalytic Converter Included - No; Clamping Type - U Bolt; Clamps Included - Yes; Exhaust Tip Diameter - 3 in.; Exhaust Tip Finish - Polished; Exhaust Tip Material - Stainless Steel; Exhaust Tip Quantity - 2; Exhaust Tip Shape - Slant-Cut; Exit Style - OEM Location; Finish - Satin; Gasket Or Seal Included - Yes; Grade Type - Regular; Hangers Included - Yes; Hardware Included - Yes; Inlet Type - Bolt On; Main Piping Diameter - 2 in.; Mounting Bracket Included - No; Muffler (Center) Body Height - 5 in.; Muffler (Center) Body Length - 9.75 in.; Muffler (Center) Body Width - 5 in.; Muffler (Front) Body Height - 3.5 in.; Muffler (Front) Body Length - 12.25 in.; Muffler (Front) Body Width - 3.5 in.; Muffler (Rear) Body Height - 5 in.; Muffler (Rear) Body Length - 25.5 in.; Muffler (Rear) Body Width - 11 in.; Muffler Body Material - Aluminized Steel; Muffler Finish - Aluminized; Muffler Quantity - 3; Pipe Material - Aluminized Steel; Prop 65 Y/N - No; Spring Bolt Kit Included - Yes
