2017 Cadillac XTS

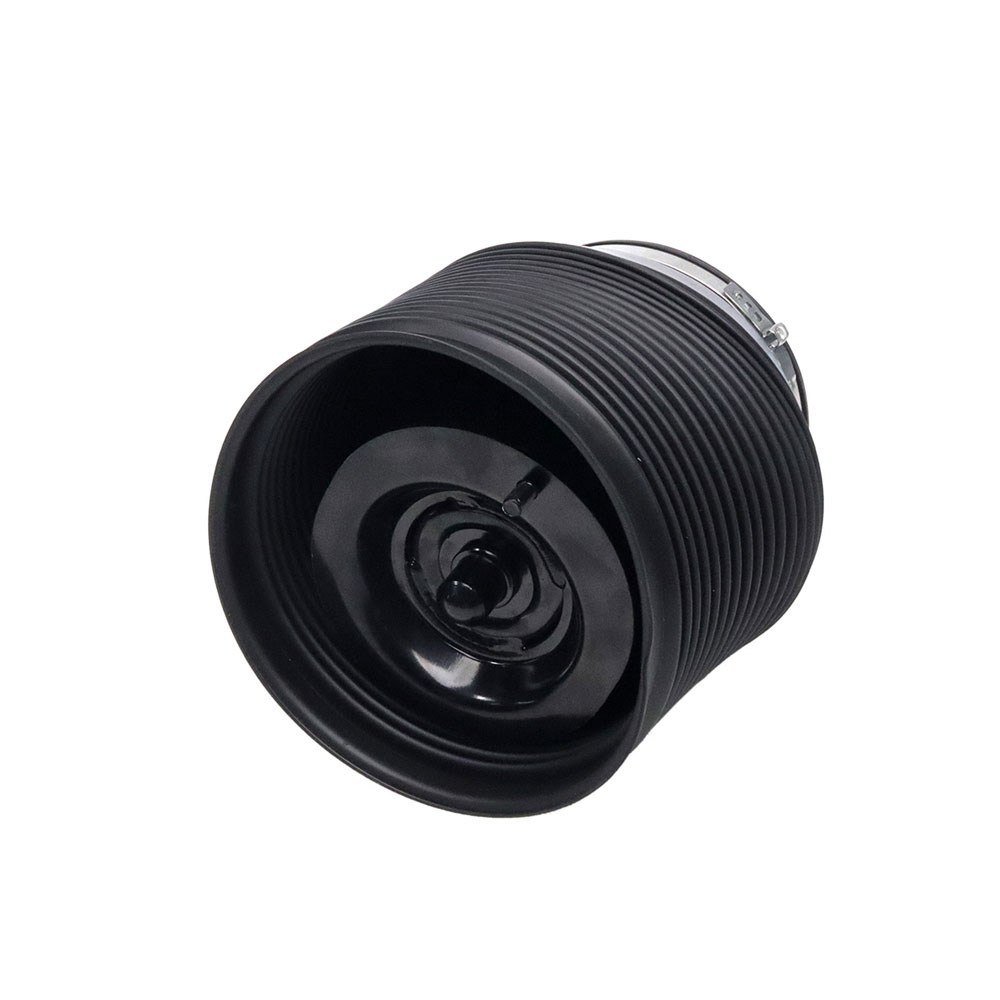

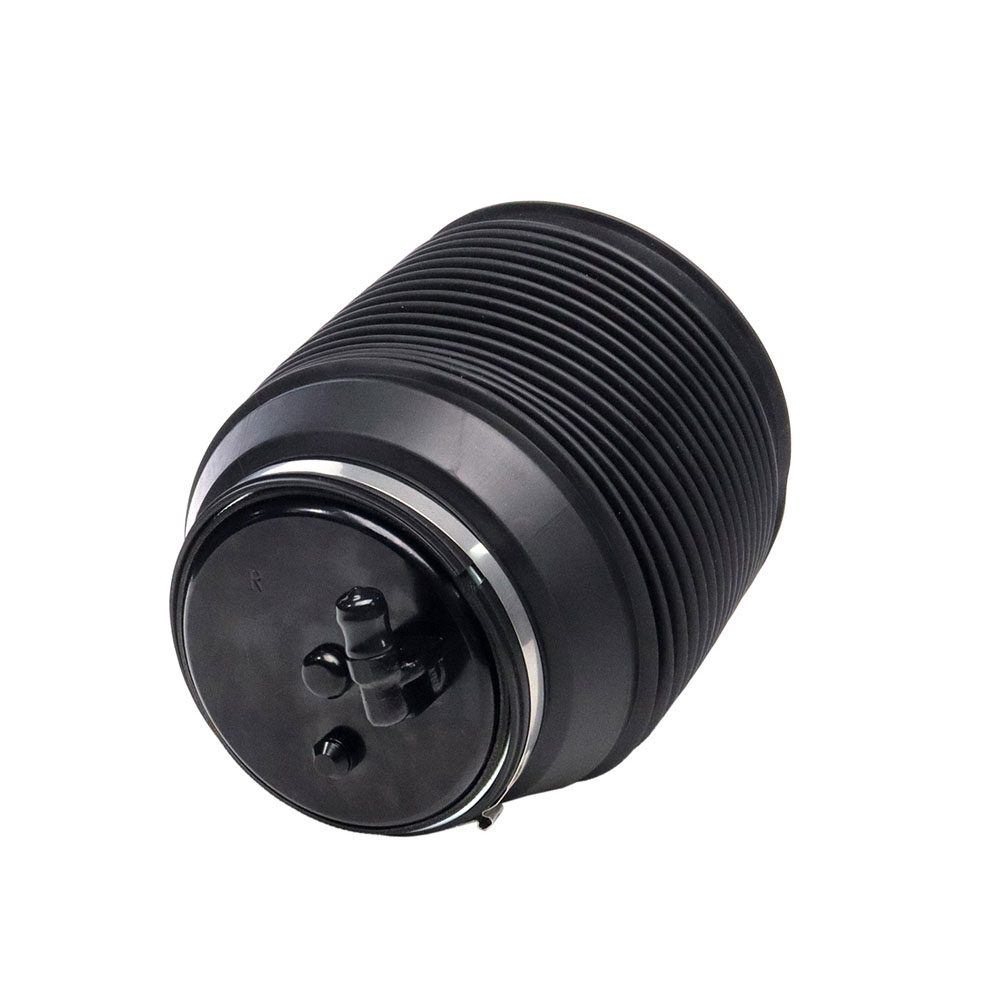

Air Spring

This is a Monroe Shocks & Struts Air Spring (Note: Monroe Shocks & Struts Brand). This Air Spring is guaranteed to fit your 2017 Cadillac XTS . SKU number 76-10565-BCZC

Designed to deliver a more comfortable ride while restoring original air ride functionality, Monroe® air springs give a high level of control. Adjust the ride height and firmness by inflating to a specific height and pressure to smooth out the bumps on the road.

Air Spring Type - Rolling Lobe; Bellows Color - Black; Bellows Material - Rubber; Bellows Material Thickness - 2.5 mm; Bellows Material Thickness - 0.098 in.; Bottom Plate Bolt Hole Quantity - 0; Bottom Plate Diameter - 137.5 mm; Bottom Plate Diameter - 5.416 in.; Grade Type - Premium; Maximum Height - 17.33 in.; Maximum Height - 440 mm; Minimum Height - 5.593 in.; Minimum Height - 142 mm; Mounting Hardware Included - No; Mounting Stud Quantity - 1; Piston Material - Steel; Top Plate Bolt Hole Quantity - 0; Top Plate Diameter - 142 mm; Top Plate Diameter - 5.593 in.
