2017 Land Rover Range Rover Sport
Strut

This is a Arnott Industries Strut (Note: Arnott Industries New). This Strut is guaranteed to fit your 2017 Land Rover Range Rover Sport . SKU number 75-26332-AI

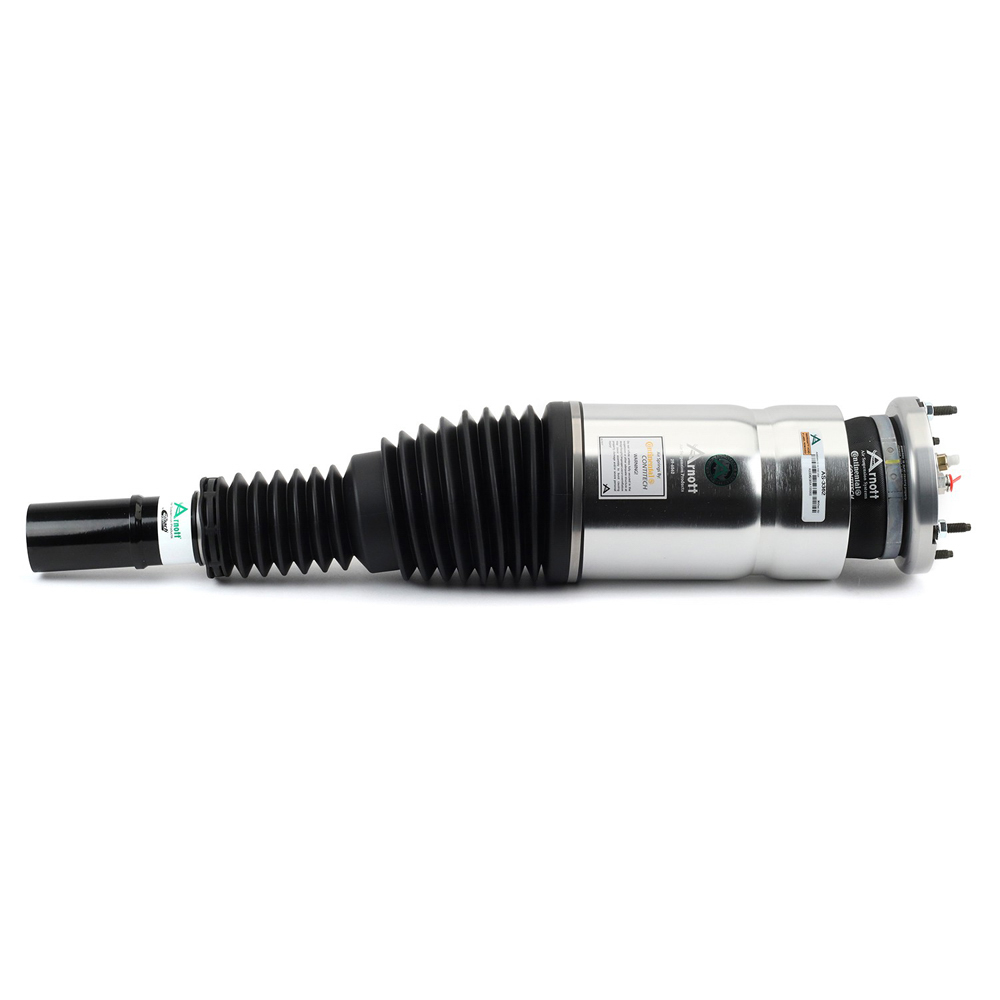

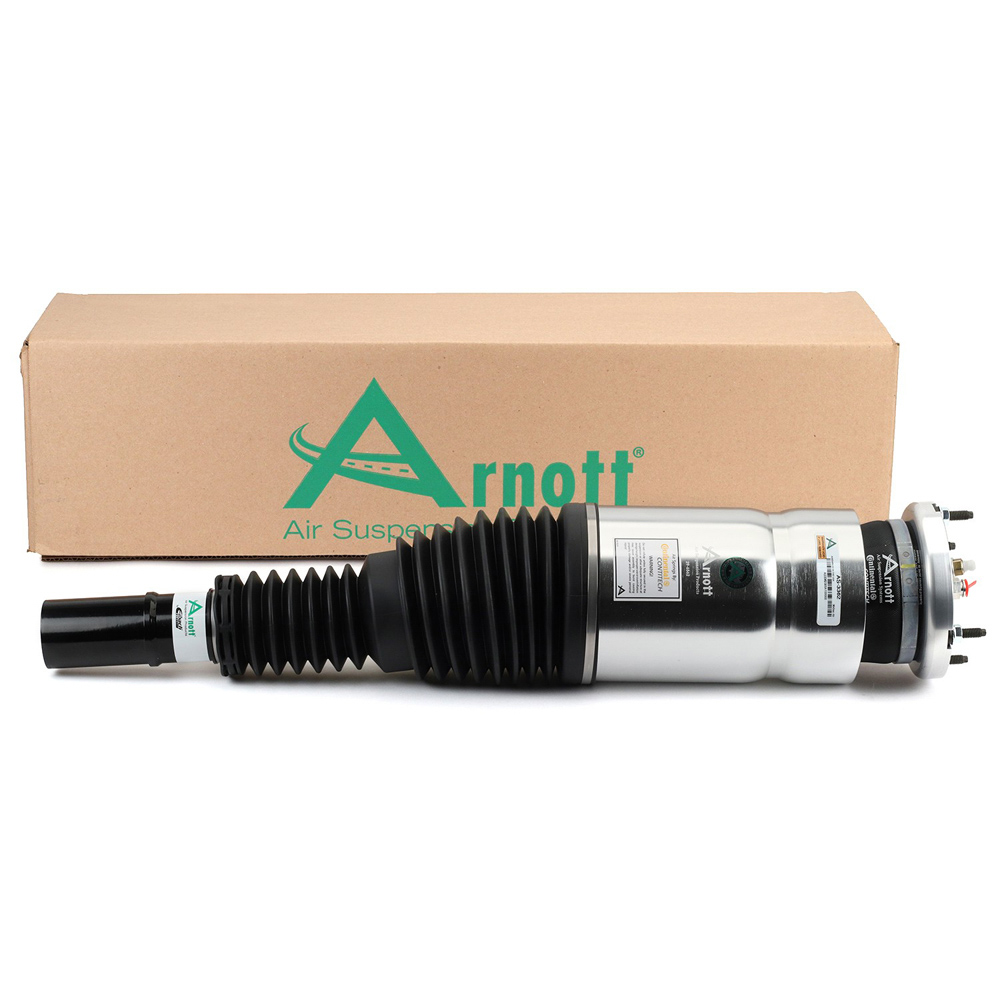

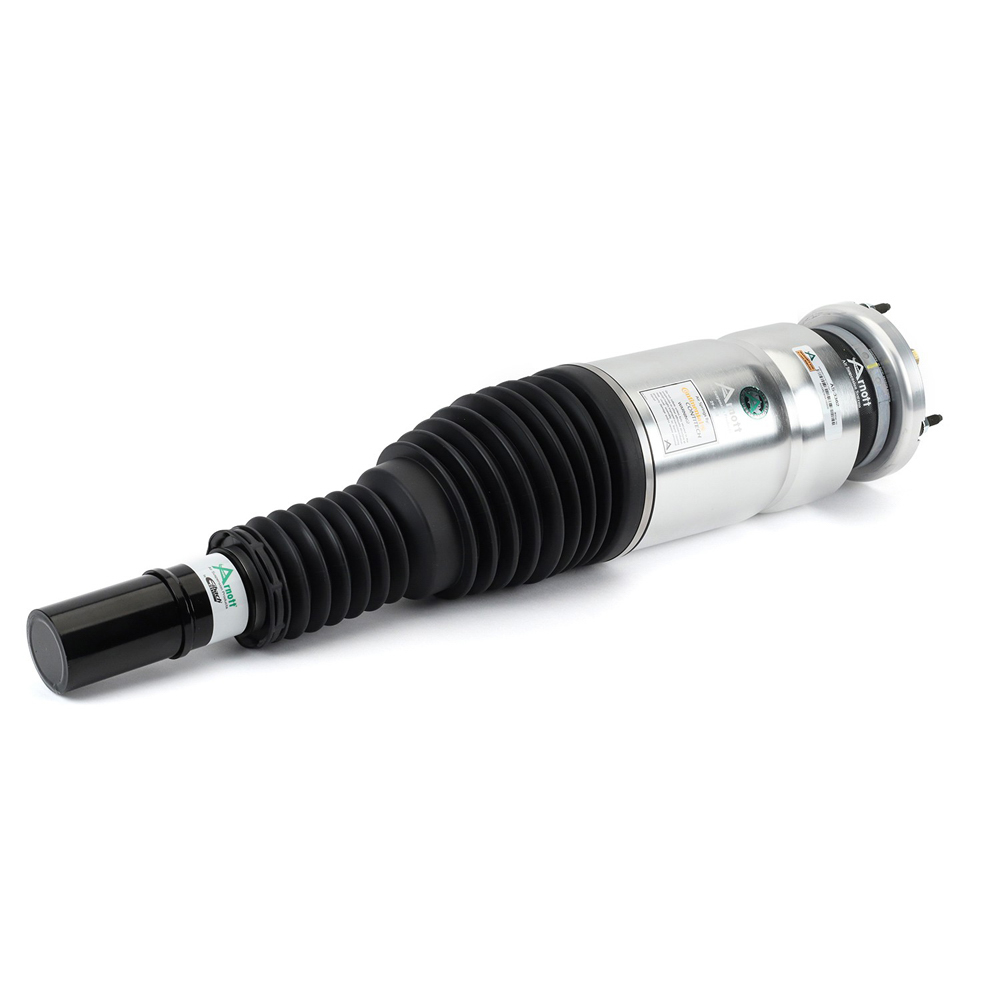

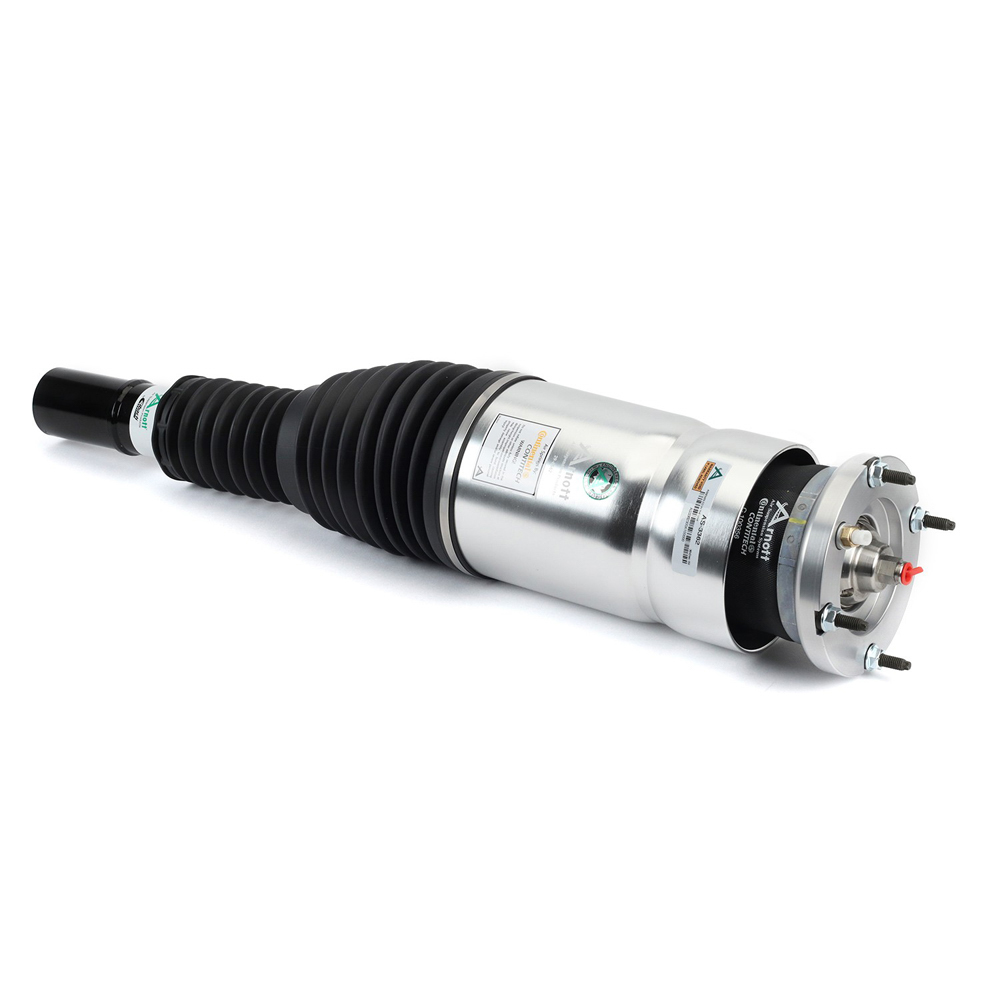

AS-3362 is a new, Arnott engineered, aftermarket air suspension strut for the front right or left side of the 2014-2022 Land Rover Range Rover Sport (L494 Chassis) without CVD. This assembly replaces the OE strut and features a new custom tuned shock absorber to provide an excellent ride and outstanding performance. The Arnott strut is assembled in the USA with a multi-ply Continental ContiTech air spring sleeve protected by an aluminum can along with an aluminum top mount. The new air strut is assembled in the USA with Arnott's long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, new air fitting and a dust boot to protect the strut.

Travel Length - 185 MM; Compressed Length - 474 MM; Extended Length - 659 MM; Contents - Air Shock Assembly; Mounting Hardware; Lower Mount Type - Base Cup; Boot Color - Black; Body End Measuring Point - Center Eye; Internal Damper Type - Hydraulic; Internal Construction Type - Monotube; Shock/strut Design - Monotube; Coil Over Springs Included - N/A; Dust Shield Material - N/A; Adjustable - No; Protective Aluminum Can - No; Spring Seat Included - No; Progressive Spring Rate - Progressive; Spring Rate Type - Progressive; Air Bladder Material - Rubber; Shock Absorber Rod End Measuring Point - Shoulder of Stud; Grade Type - Standard; Upper Mount Type - Stud; Air Adjustable - Yes; Air Bladder - Yes; Air Ride Suspension - Yes; Bearing Plate Included - Yes; Boot/dust Shield Included - Yes; Heavy Duty Crimping Rings - Yes; Mounting Hardware Included - Yes; Shock Spring Assisted - Yes; Spring Isolators Included - Yes; Springs Included - Yes; Upper Mounting Isolator Included - Yes
