2017 Toyota Tacoma Shock Absorber
(Bilstein B8 8100 (DSA) 25-294071 Bilstein)

Low Inventory – Order Soon.
This is a Bilstein Shock Absorber (Note: Bilstein). This Shock Absorber is guaranteed to fit your 2017 Toyota Tacoma . SKU number U8-13864-BBGL

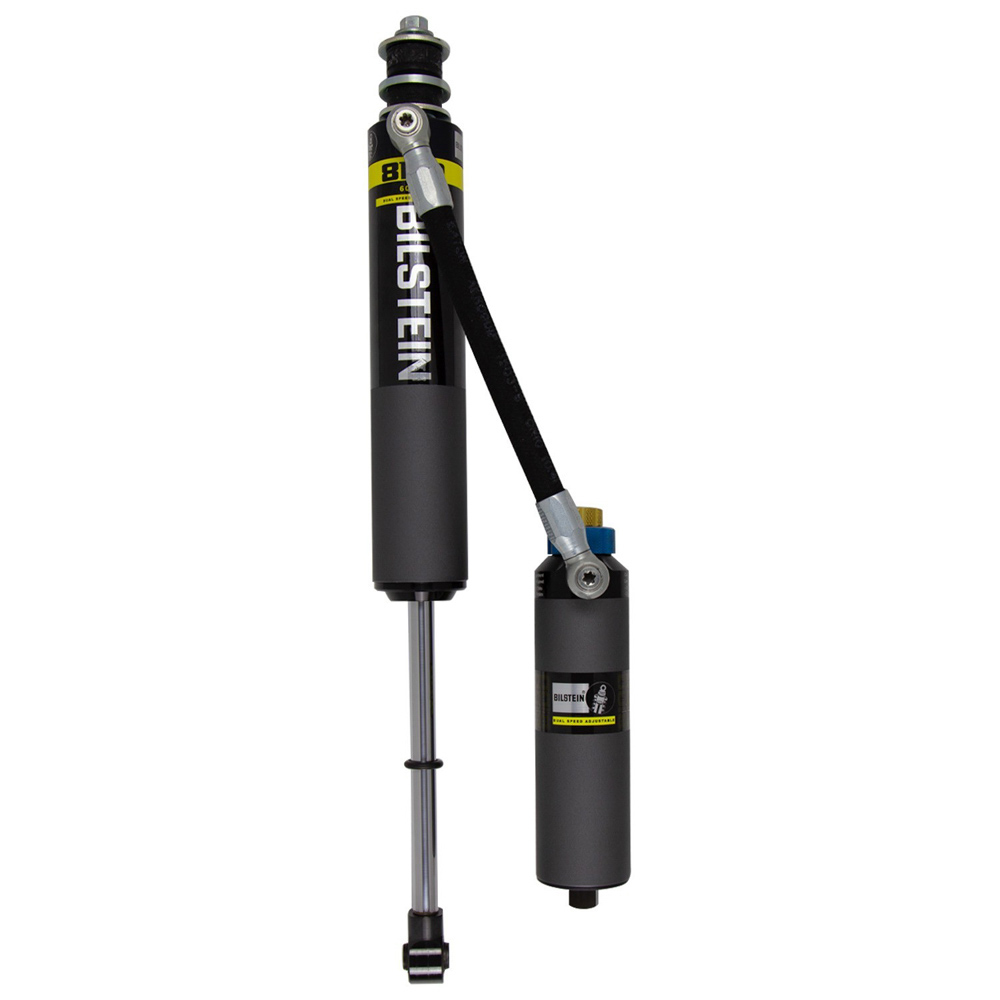

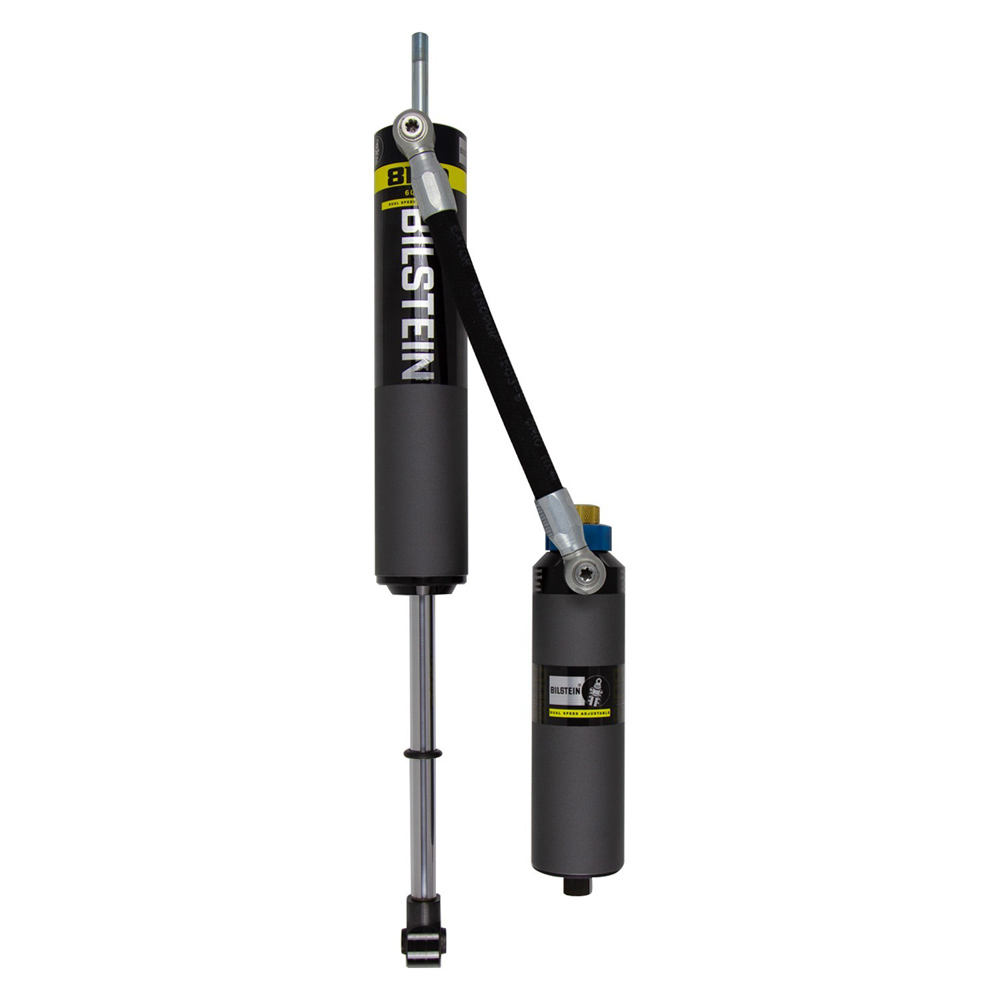

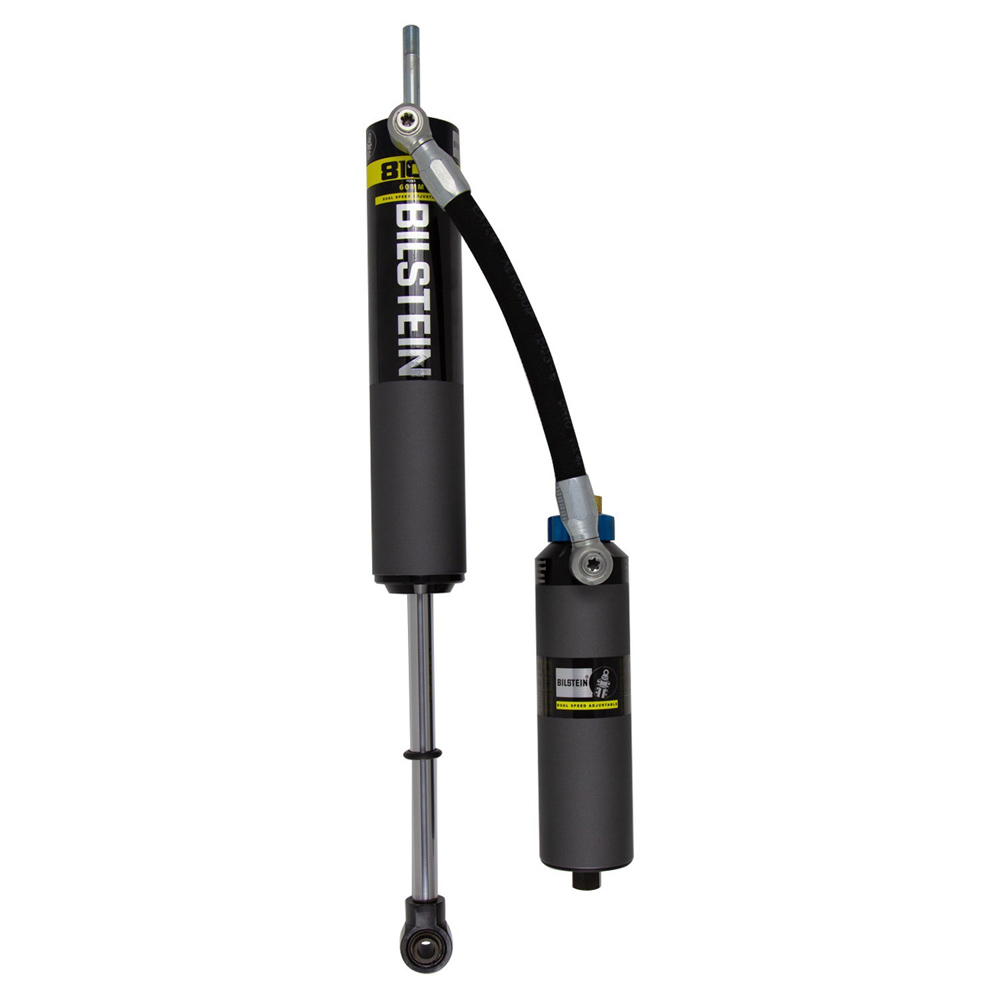

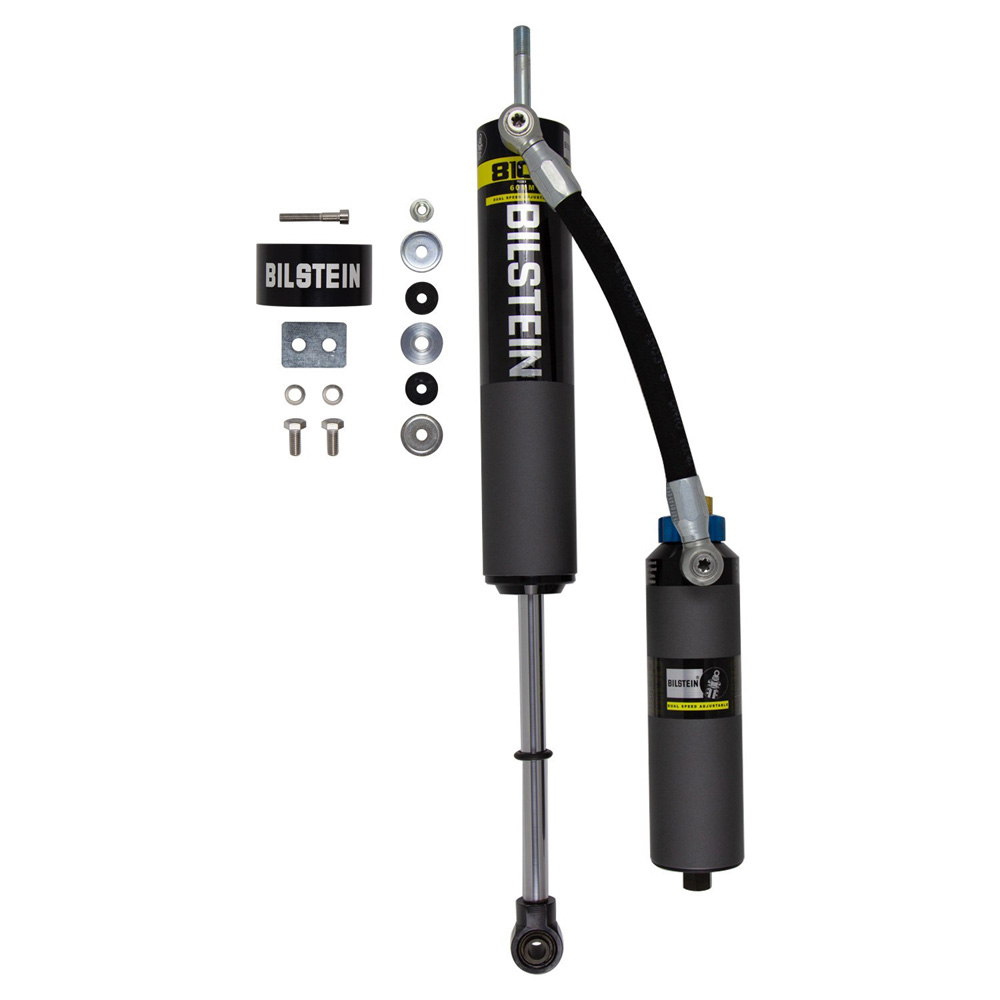

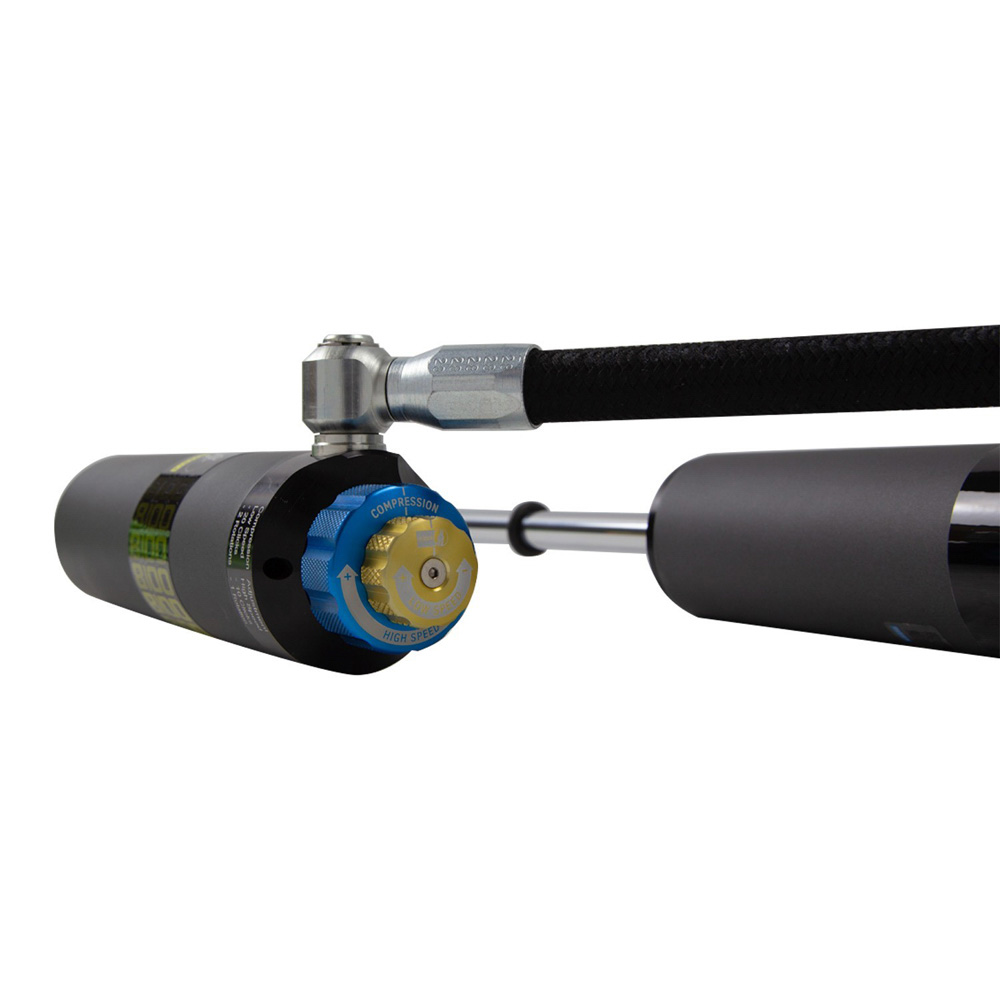

The Bilstein B8 8100 (DSA) reservoir shock absorber is an adjustable large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (DSA) will allow you to tame the terrain in comfort.
Adjustable Damping - Click Adjusters for High and Low Speed Compression; Body Design - Smooth Body (Non-Coilover); Body Diameter (ID) - 60mm; Boot Included - No; California Proposition 65 - WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov; Collapsed Length (IN) - 14.25; Collapsed Length (MM) - 362.0; Extended Length (IN) - 22.80; Extended Length (MM) - 579.0; Finish - EVO Grey; Internal Design - Monotube; Lower Mount Type - Eye 12mm; PartType - Shocks / Struts; Prop 65 (Y/N) - Y; Reservoir - Yes; Segment - Light Truck; Series - B8 8100 (DSA); Spring Seat Included - No; Upper Mount Type - Stem
| Specification | Description |
| Part Type | Shock Absorber |
| SKU | U8-13864 BBGL |
| Brand | Bilstein |
| Series | B8 8100 (DSA) |
| Part Number | 25-294071 |
| Type | Bilstein |
| Condition | New |
| Fit Type | Exact |
| Warranty | FREE 2 Year Unlimited Mileage Warranty More Information |
| Additional warranty options available.* View Options
2 Year
Unlimited Mileage Warranty
FREE
5 Year Extended Unlimited Mileage Warranty $176.05
Lifetime Unlimited Mileage Warranty $293.42
| |
| Weight | 18.65 Pounds |
| Box Dimensions |
Height: 6.00" Length: 32.00" Width: 14.00" |
| UPC | 651860908168 |
2005 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
2006 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
2007 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
Click Here for Full List
- 2008 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2009 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2010 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2011 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2012 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2013 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2014 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2015 Toyota Tacoma Base - 4WD - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2016 Toyota Tacoma Limited - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2018 Toyota Tacoma Limited - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2019 Toyota Tacoma Limited - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2020 Toyota Tacoma Limited - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2021 Toyota Tacoma Limited - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2022 Toyota Tacoma Limited - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2023 Toyota Tacoma Limited - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2021 Toyota Tacoma Nightshade - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2022 Toyota Tacoma Nightshade - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2005 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2006 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2007 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2008 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2009 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2010 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2011 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2012 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2013 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2014 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2015 Toyota Tacoma Pre Runner - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2016 Toyota Tacoma SR - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2017 Toyota Tacoma SR - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2018 Toyota Tacoma SR - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2019 Toyota Tacoma SR - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2020 Toyota Tacoma SR - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2021 Toyota Tacoma SR - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2022 Toyota Tacoma SR - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2023 Toyota Tacoma SR - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2016 Toyota Tacoma SR5 - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2017 Toyota Tacoma SR5 - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2018 Toyota Tacoma SR5 - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2019 Toyota Tacoma SR5 - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2020 Toyota Tacoma SR5 - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2021 Toyota Tacoma SR5 - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2022 Toyota Tacoma SR5 - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2023 Toyota Tacoma SR5 - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2021 Toyota Tacoma Trail - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2023 Toyota Tacoma Trail Special Edition - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2016 Toyota Tacoma TRD Off-Road - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2017 Toyota Tacoma TRD Off-Road - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2018 Toyota Tacoma TRD Off-Road - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2019 Toyota Tacoma TRD Off-Road - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2020 Toyota Tacoma TRD Off-Road - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2021 Toyota Tacoma TRD Off-Road - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2022 Toyota Tacoma TRD Off-Road - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2023 Toyota Tacoma TRD Off-Road - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2015 Toyota Tacoma TRD Pro - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2017 Toyota Tacoma TRD Pro - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2018 Toyota Tacoma TRD Pro - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2019 Toyota Tacoma TRD Pro - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2020 Toyota Tacoma TRD Pro - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2021 Toyota Tacoma TRD Pro - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2022 Toyota Tacoma TRD Pro - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2023 Toyota Tacoma TRD Pro - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2016 Toyota Tacoma TRD Sport - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2017 Toyota Tacoma TRD Sport - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2018 Toyota Tacoma TRD Sport - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2019 Toyota Tacoma TRD Sport - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2020 Toyota Tacoma TRD Sport - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2021 Toyota Tacoma TRD Sport - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2022 Toyota Tacoma TRD Sport - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
- 2023 Toyota Tacoma TRD Sport - w/ 0-1.5 in. Rear Lift - Requires Wheels w/ Maximum of 4.75 in. backspacing - Rear
