2021 Ford F Series Trucks
Cat Back Performance Exhaust

This is a MagnaFlow Exhaust Products Cat Back Performance Exhaust (Note: New Magnaflow xMOD Series Black Cat-Back System). This Cat Back Performance Exhaust is guaranteed to fit your 2021 Ford F Series Trucks . SKU number 46-62811-XM0

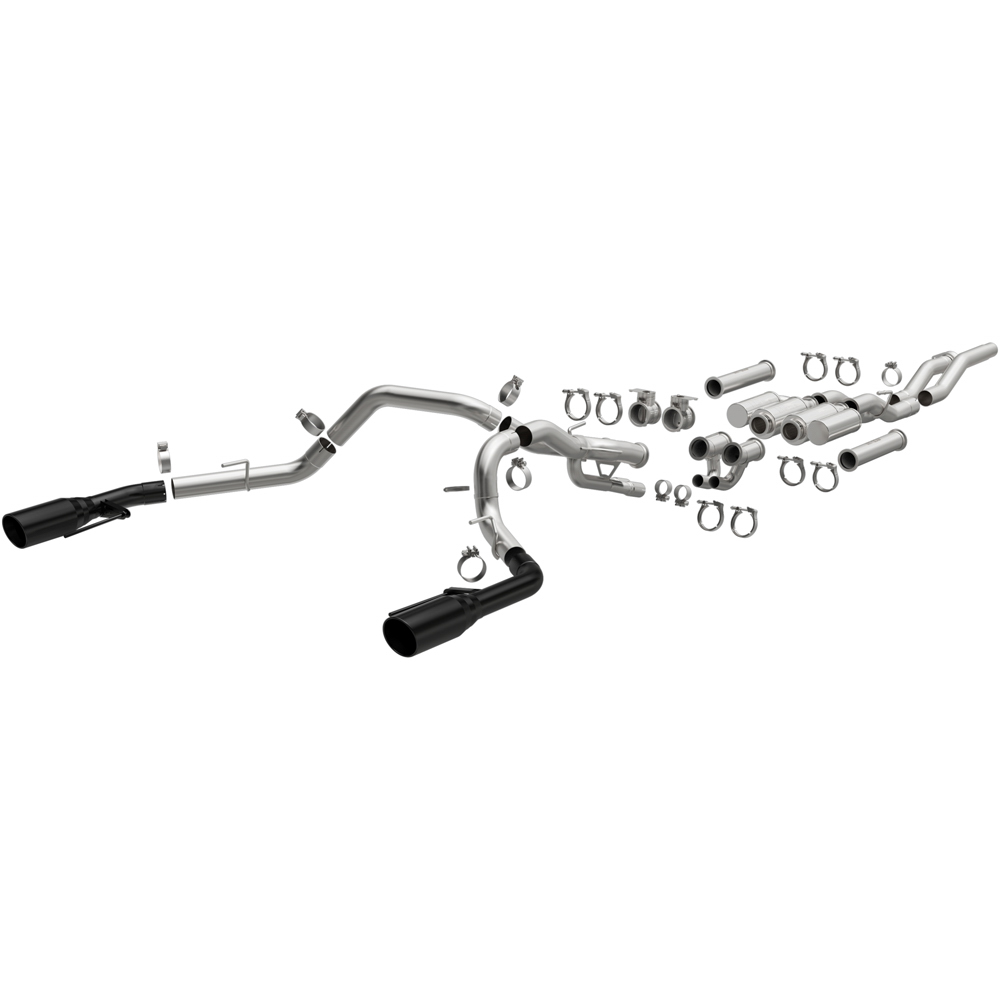

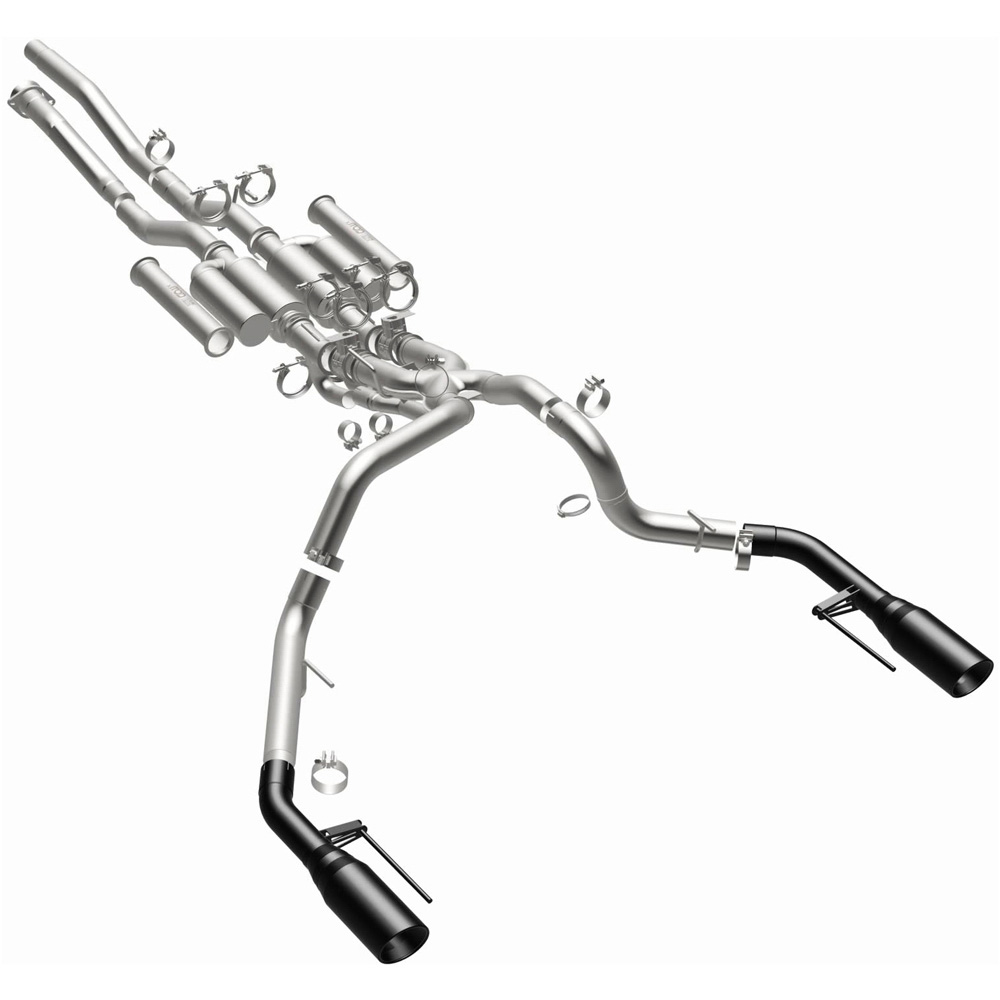

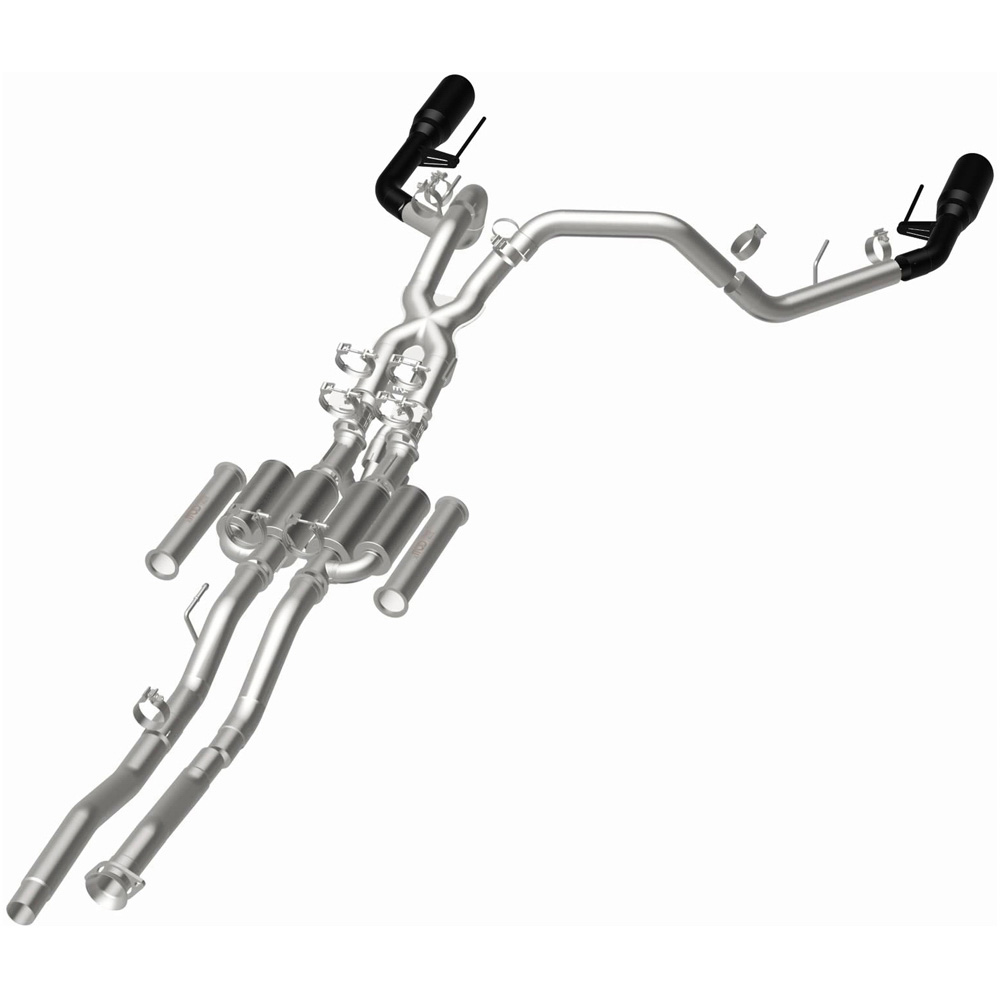

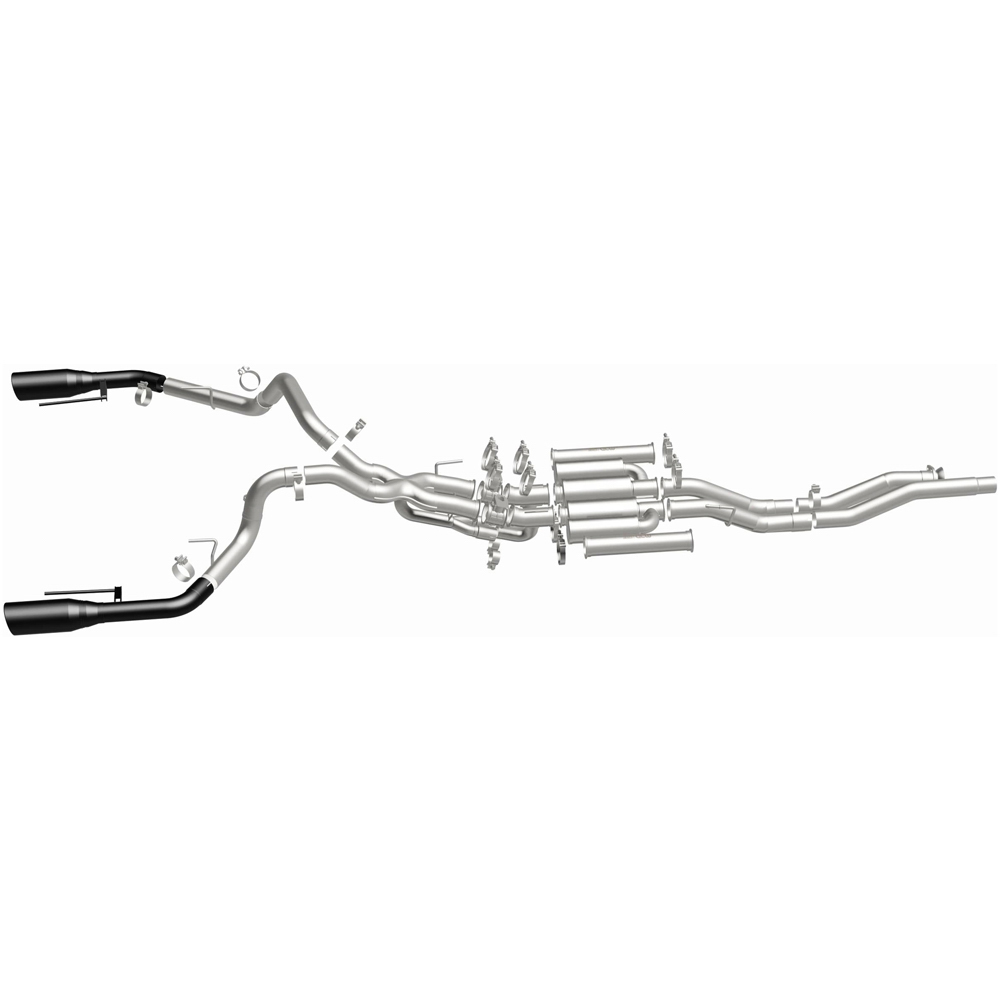

The MagnaFlow Ford F-150 Raptor R xMOD Series Cat-Back Performance Exhaust System is an ultimate exhaust upgrade that can be transformed to your liking to create the exact tone you’re looking for, all while empowering your Ford F-150 Raptor R with dyno-proven performance gains. This feat is accomplished while retaining the full functionality of your truck’s controllable exhaust valves. Exhaust kit #19651 features 3” mandrel bent main piping that replaces your OEM exhaust from near the catalytic converter on back. The piping passes through a set of either 11” NDT (No Drone Technology) muffler modules or 11” xTreme Delete straight pipe modules before passing through the controllable valves and an X-pipe with branch pipe mid-connection and terminating in a dual split rear exit with 5” double-wall angle cut rolled edge black coated tips. #19651 also includes front pipes that can be used to replace the factory front resonated pipes. The NDT muffler modules each include a round straight-through performance muffler connected to an 11” NDT reflection chamber that’s tuned to minimize the droning noises that can otherwise occur at cruising speeds. Meanwhile, the xTreme Delete modules turn your exhaust into a full-throated straight-pipe setup, perfect for track or off-road use. The xTreme Delete modules are the real deal though, so please check to ensure compliance with local noise regulations. This exhaust system is secured with racing-bred quick release V-band clamps, which facilitate easy installation and make swapping modules quick and hassle free. This performance exhaust system is made of durable stainless steel backed by MagnaFlow’s limited lifetime warranty.

Exhaust Tip Length - 14.25 in., Exhaust Tip Shape - Round, Muffler (Inside) Body Height - 4 in., Muffler (Inside) Body Length - 11 in., Muffler (Inside) Body Width - 4 in., Muffler (Outside) Body Height - 5 in., Muffler (Outside) Body Length - 11 in., Muffler (Outside) Body Width - 5 in., Muffler (Inside) Type - Straight-Through, Muffler (Outside) Type - Tuned Chamber, Exhaust Tip Quantity - 2, Exhaust Tip Diameter - 5 in., Exhaust Tip Finish - Black Coated, Exhaust Tip Material - Stainless Steel, Muffler Type - Straight-Through;Tuned Chamber, Clamps Included - Yes, Valve Type - Actuated, Type - Cat-Back, Gasket Or Seal Included - No, Pipe Material - Stainless Steel, Clamping Type - Round Band, Clamping Type - V Band, Hangers Included - Yes, Muffler Body Material - Stainless Steel, Muffler Quantity - 4, Inlet Type - Bolt-On;Clamp-On, Valve Included - Yes, Mounting Bracket Included - No, Exit Style - Dual Split Rear, Main Piping Diameter - 3 in., Exhaust Tip Connection - Welded-On, Exhaust Tip Wall - Double Wall, Exhaust Tip Cut - Angle Cut, Exhaust Tip Edge - Rolled Edge, Exhaust Tip Resonated - No, Exhaust Tip Intercooled - No, Muffler Finish - Brushed, Catalytic Converter Included - No, Muffler Body Height Position Inside - 4 in., Muffler Body Height Position Outside - 5 in., Muffler Body Length Position Inside - 11 in., Muffler Body Length Position Outside - 11 in., Muffler Body Width Position Inside - 4 in., Muffler Body Width Position Outside - 5 in., Muffler Type Position Inside - Straight-Through, Muffler Type Position Outside - Tuned Chamber, Prop 65 Y/N - No
