2021 Mercedes Benz S560
Strut

This is a Arnott Industries Strut (Note: Arnott Industries Remanufactured). This Strut is guaranteed to fit your 2021 Mercedes Benz S560 . SKU number 75-27286-RI

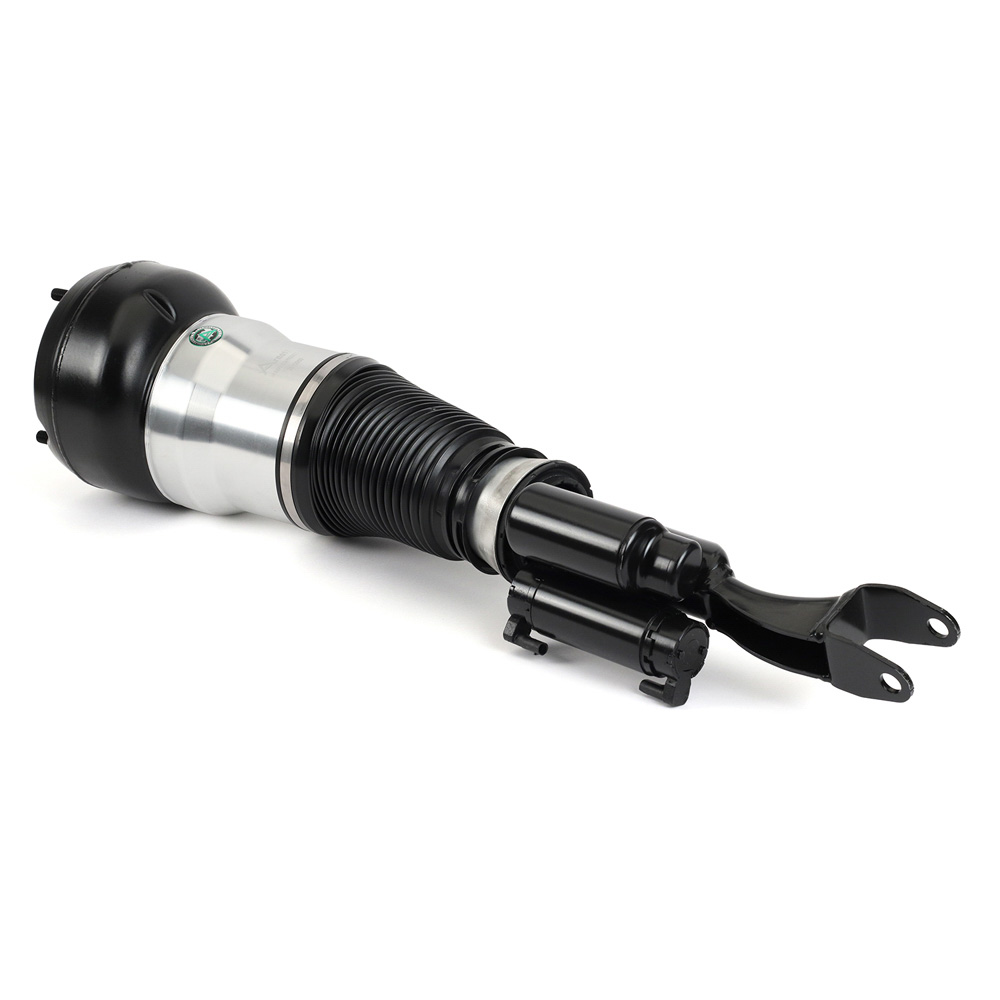

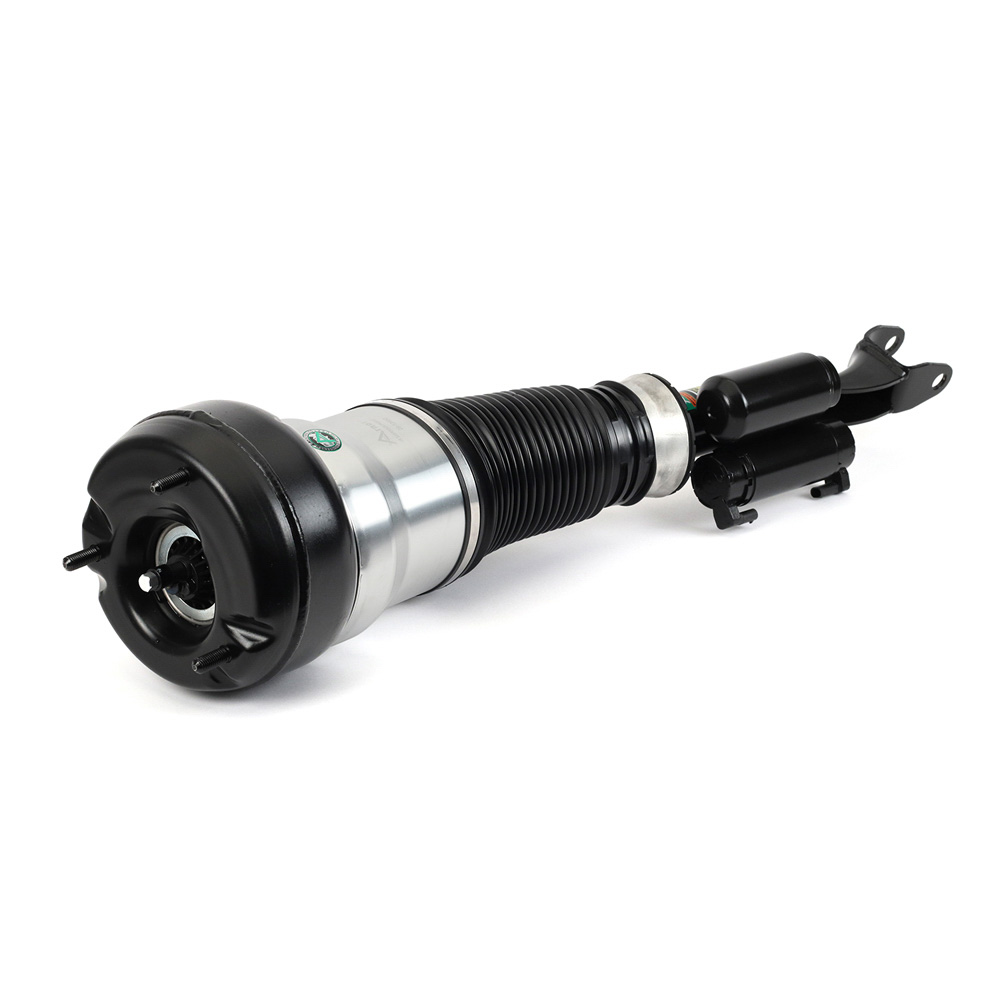

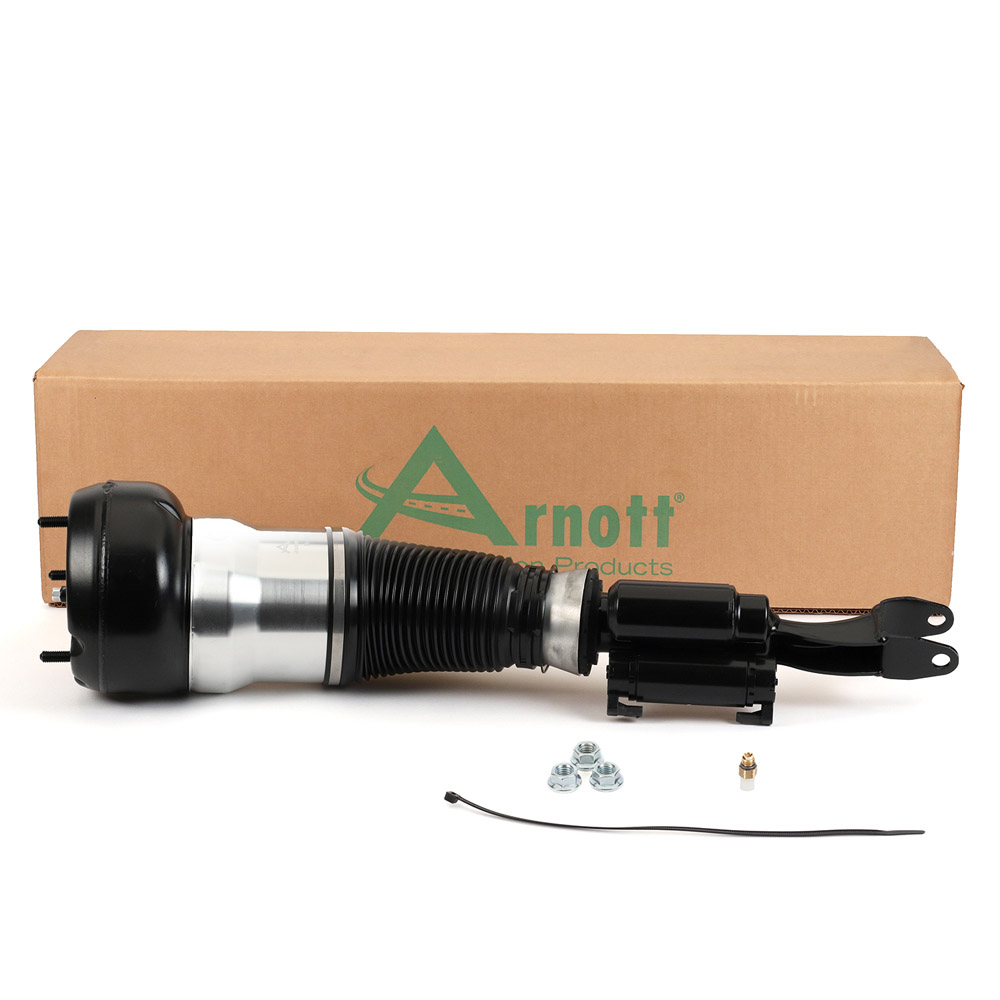

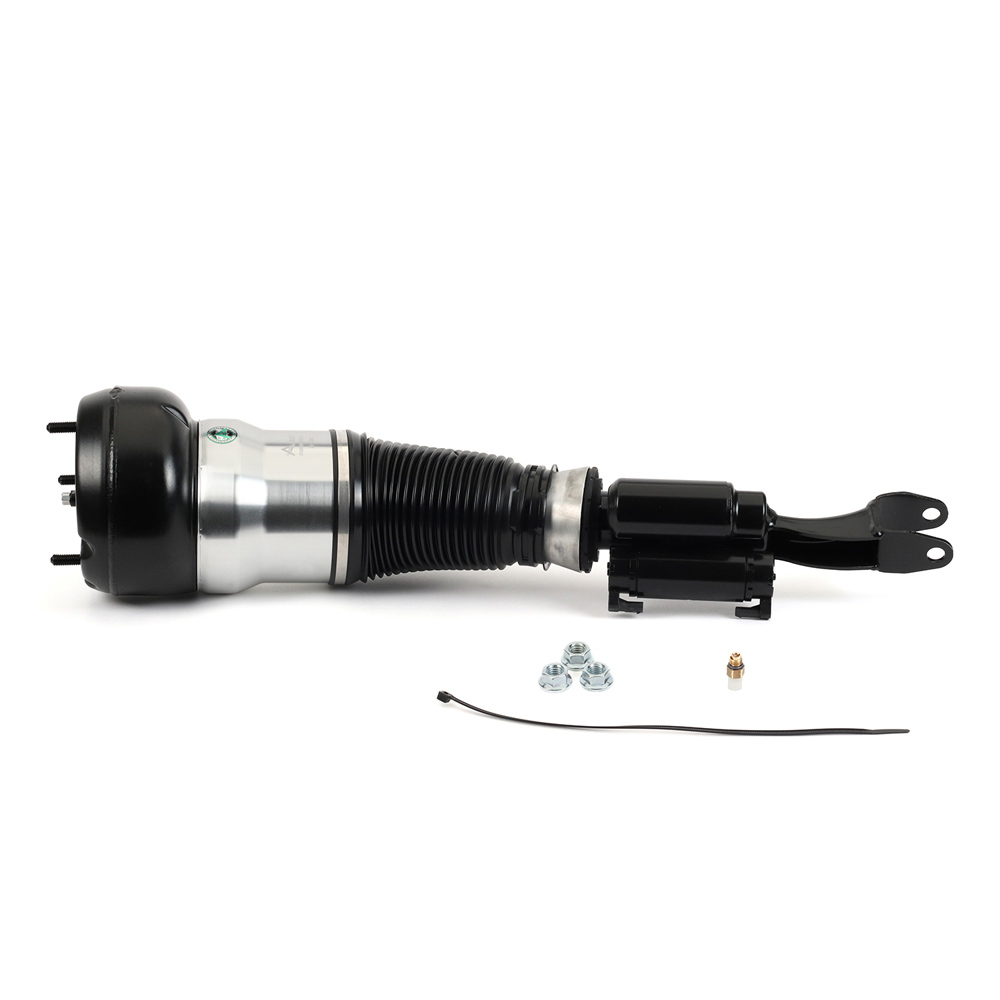

Arnott's AS-3366 is a completely remanufactured OE Mercedes-Benz Front Right air suspension strut for the 2014-2021 Mercedes-Benz S-Class (W222 Chassis) and Maybach with AIRMATIC and 4MATIC. The strut is inspected, steam cleaned, and media blasted to bare metal before the damper is recharged with new high-performance shock oil. Worn components, such as the piston and rod guides and seal pack are replaced. The damper and coil are dyno and functionally tested to assure OE performance. The Arnott remanufactured strut, which is painted with corrosion resistant paint, features a new multi-ply rubber air bladder manufactured by Continental ContiTech along with heavy-duty crimping rings, O-Rings, and new airline fitting. All Arnott remanufactured struts are designed to work with the vehicle's auto leveling and OE damping functionality.

Travel Length - 110.5 MM; Compressed Length - 482.6 MM; Extended Length - 593.1 MM; Contents - Air Shock Assembly; Boot Color - Black; Body End Measuring Point - Center Eye; Lower Mount Type - Clevis; Internal Damper Type - Hydraulic; Internal Construction Type - Monotube; Shock/strut Design - Monotube; Coil Over Springs Included - N/A; Dust Shield Material - N/A; Adjustable - No; Lower Mounting Isolator Included - No; Protective Aluminum Can - No; Spring Seat Included - No; Progressive Spring Rate - Progressive; Spring Rate Type - Progressive; Air Bladder Material - Rubber; Shock Absorber Rod End Measuring Point - Shoulder of Stud; Grade Type - Standard; Upper Mount Type - Stud; Adjustable Damping - Yes; Air Adjustable - Yes; Air Bladder - Yes; Air Ride Suspension - Yes; Bearing Plate Included - Yes; Boot/dust Shield Included - Yes; Heavy Duty Crimping Rings - Yes; Mounting Hardware Included - Yes; Shock Spring Assisted - Yes; Spring Isolators Included - Yes; Springs Included - Yes; Upper Mounting Isolator Included - Yes
