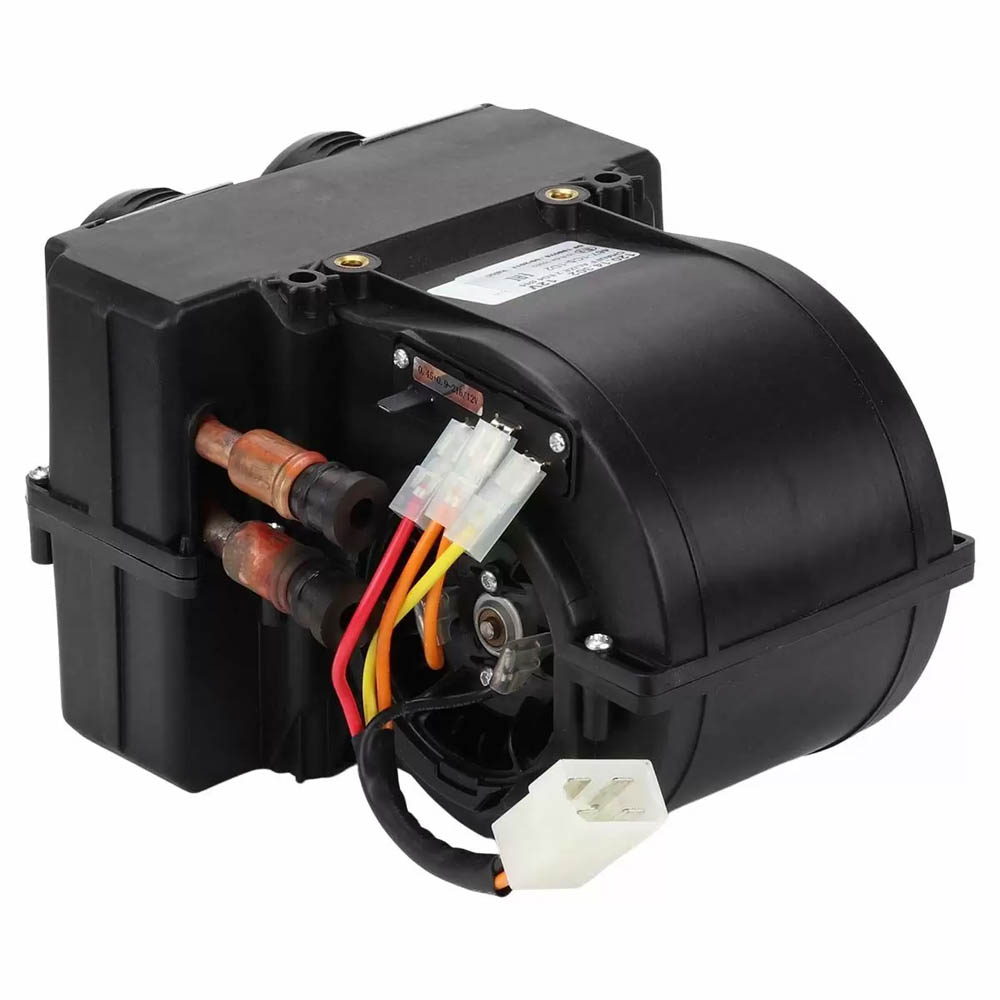

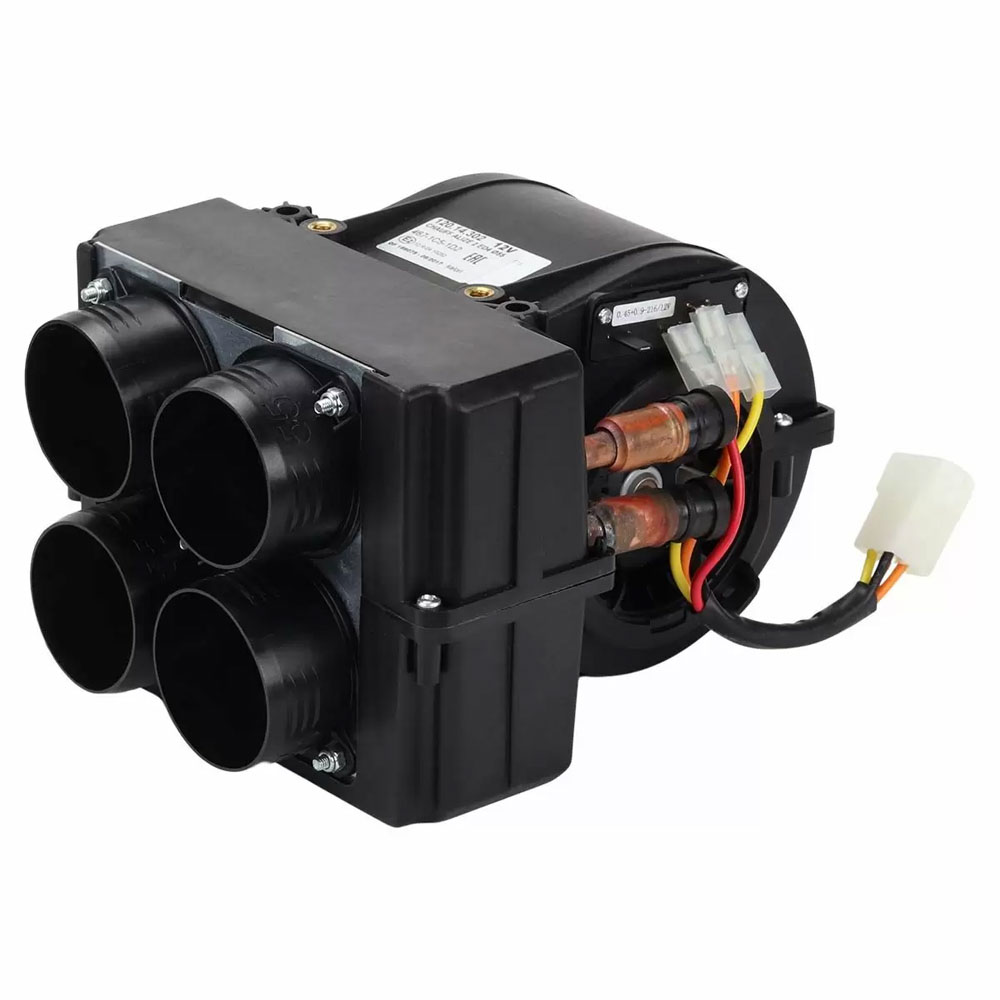

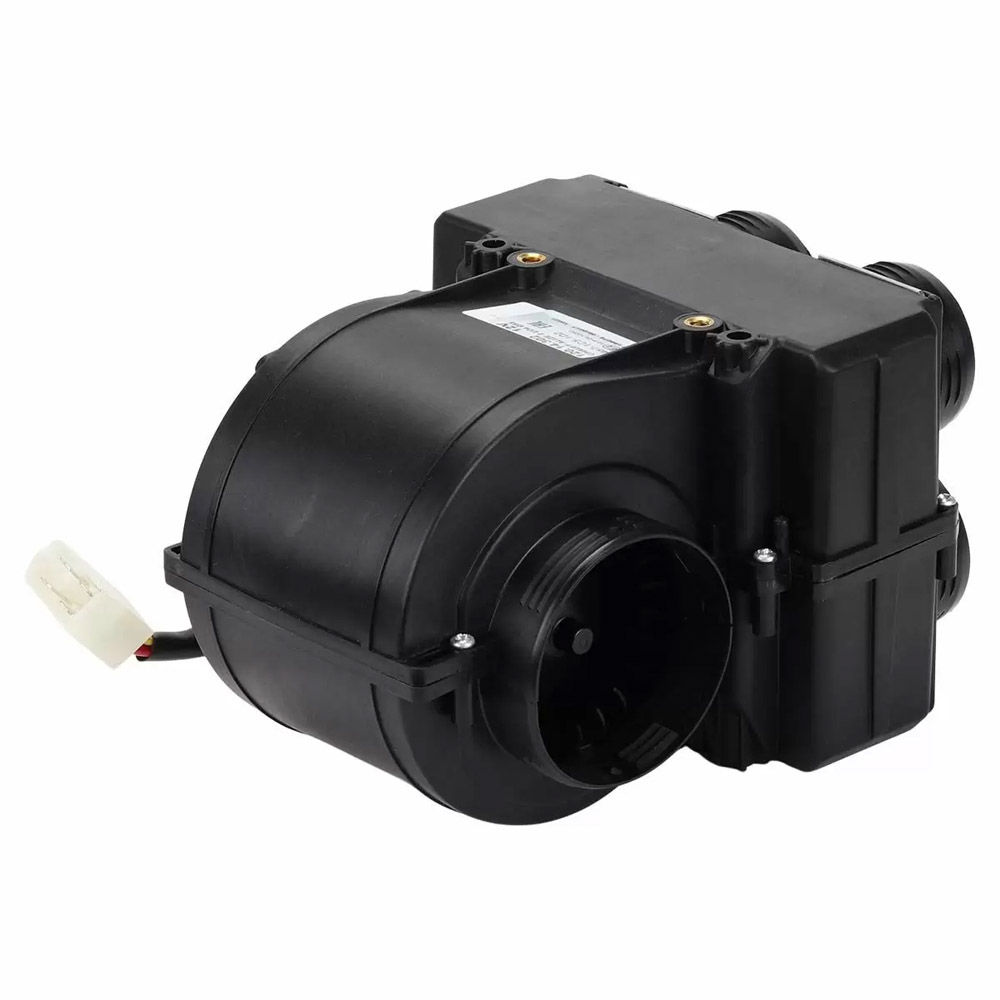

BuyAutoParts New Auxiliary Heater Assembly

This is a New BuyAutoParts Auxiliary Heater Assembly (Note: BuyAutoParts New). SKU number 3X-10002-AN

Kalori 3.4kw Alize 2 Ducted Water Heater, 24v Blower, 4x 55mm Outlets

A small heater that uses engine coolant for the heat source. Great for small cab trucks, custom cars, UTVs, or heavy equipment.

Air Outlet Hose - 55mm (2.17in.) dia. x4

Air Inlet - 100mm (3.94in.) x2

Fan Speeds - 3 Speed

Motor Type - Brushed

Water Hose Size - 16mm

Voltage - 24v DC

Power Consumption - 70w

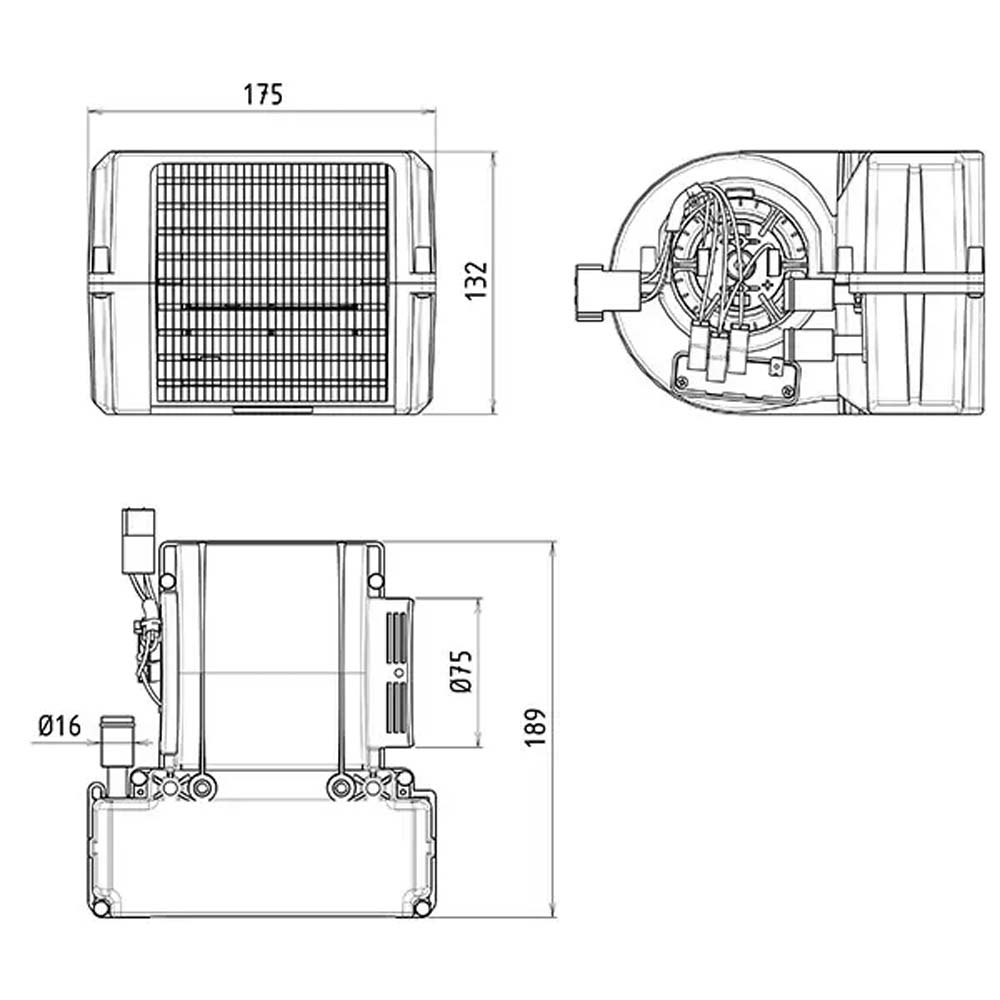

L x W x H - 8.42in. x 6.89in. 5.19in.

Manufacture - Kalori

This heater uses a 3 speed single wheel centrifugal blower using an onboard resistor pack. You will need to use a 4 position fan speed switch to operate the fan, sold separately.

Orange wire = +24v High Speed, Red wire = +24v Medium Speed, Yellow wire = +24v Low Speed, Black wire = Ground.

Please ensure your supply is fused appropriately, it is recommended to use a fuse twice that of the continuous running current and ensure your cable is rated to handle a higher capacity than the fuse.
