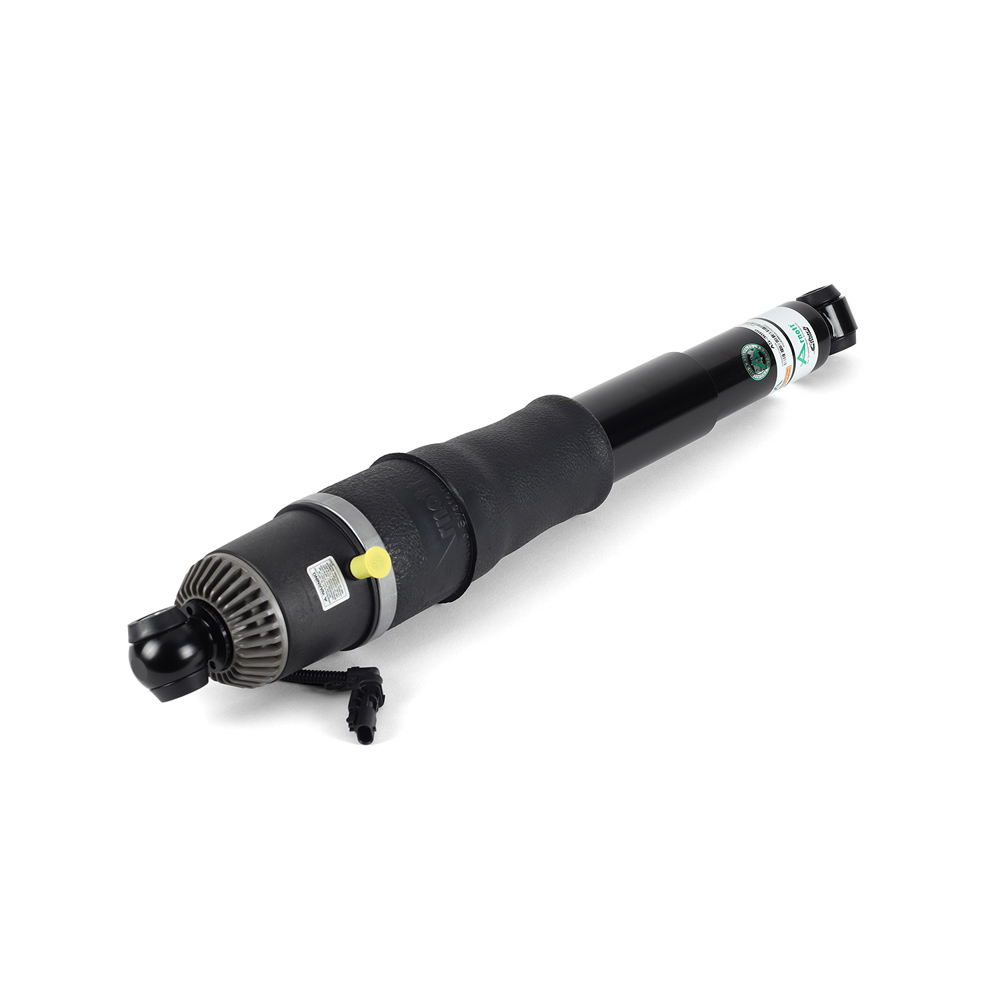

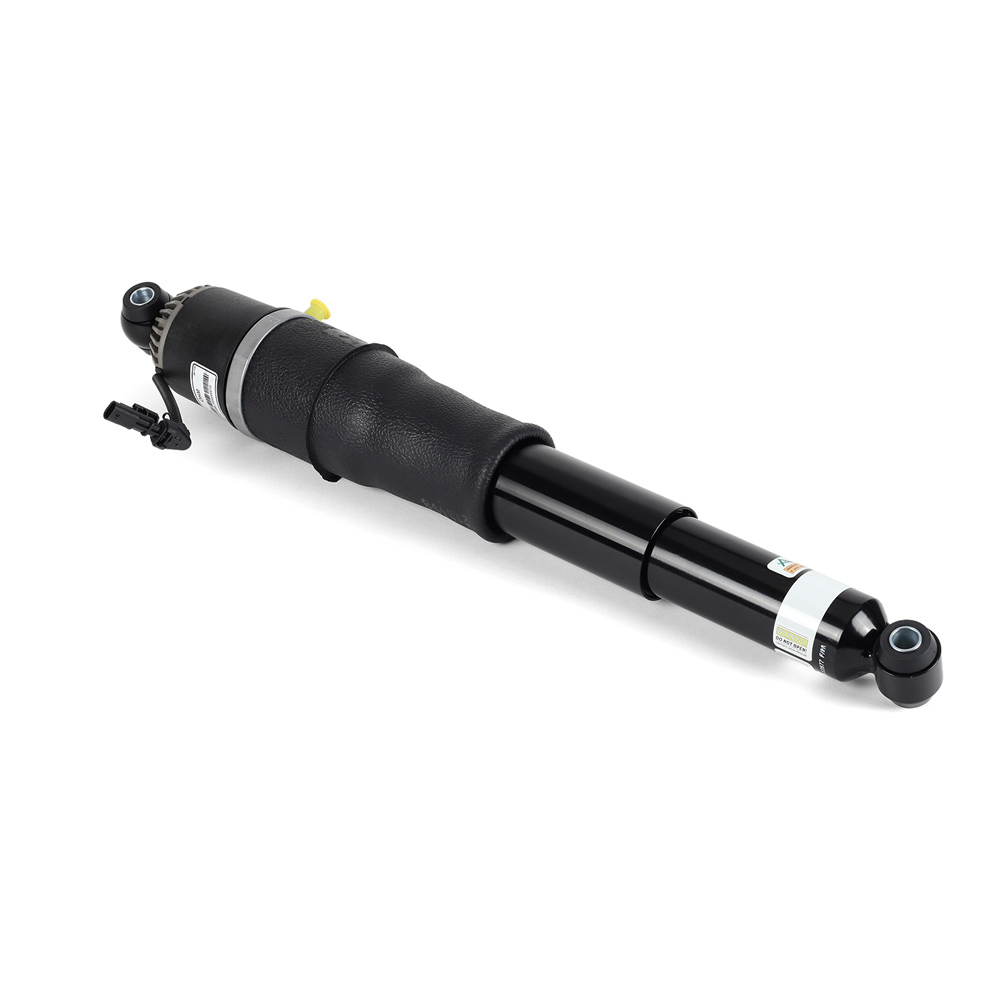

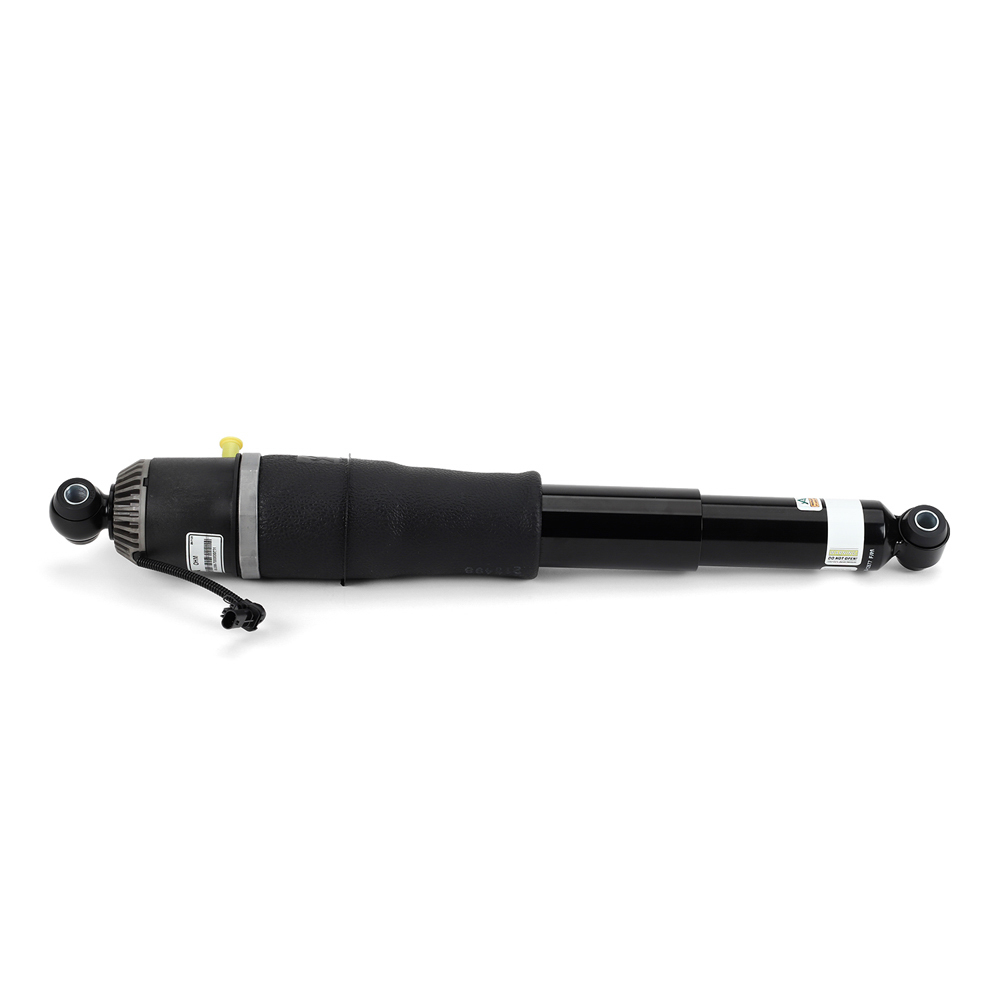

Arnott Industries New Shock Absorber

This is a New Arnott Industries Shock Absorber (Note: Arnott Industries New). SKU number 75-03103-AI

Arnott's rear air shock AS-3066 for 2015-2020 GM® trucks and SUVs (K2XX Chassis) equipped with MagneRide® is the ideal replacement for your failing rear air assisted shock. This Arnott air shock, which was engineered in the USA, includes a passive damper which has been custom tuned to deliver control, stability, and comfort. Arnott's new aftermarket rear monotube shock bypasses the vehicle's auto-damping system and incorporates a sensor which eliminates dash panel error messages._x000D_

Travel Length - 184 MM; Compressed Length - 374.3 MM; Extended Length - 558 MM; Contents - Air Shock Assembly; Mounting Hardware; Body End Measuring Point - Center Eye; Internal Damper Type - Hydraulic; Lower Mount Type - Loop/Eyelet; Upper Mount Type - Loop/Eyelet; Internal Construction Type - Monotube; Shock/strut Design - Monotube; Boot Color - N/A; Coil Over Springs Included - N/A; Dust Shield Material - N/A; Adjustable - No; Bearing Plate Included - No; Boot/dust Shield Included - No; Protective Aluminum Can - No; Spring Seat Included - No; Progressive Spring Rate - Progressive; Spring Rate Type - Progressive; Air Bladder Material - Rubber; Shock Absorber Rod End Measuring Point - Shoulder of Stud; Grade Type - Standard; Air Adjustable - Yes; Air Bladder - Yes; Air Ride Suspension - Yes; Heavy Duty Crimping Rings - Yes; Mounting Hardware Included - Yes; Shock Spring Assisted - Yes; Spring Isolators Included - Yes; Springs Included - Yes; Upper Mounting Isolator Included - Yes
