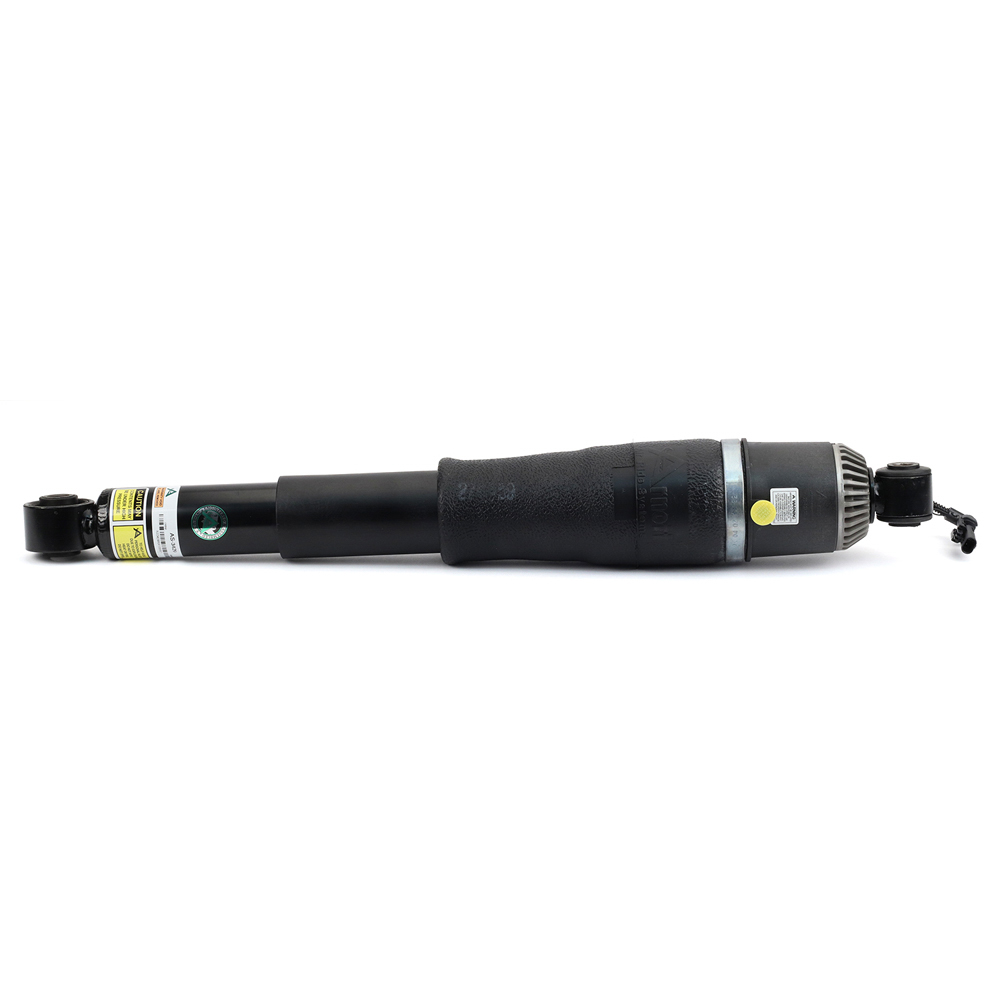

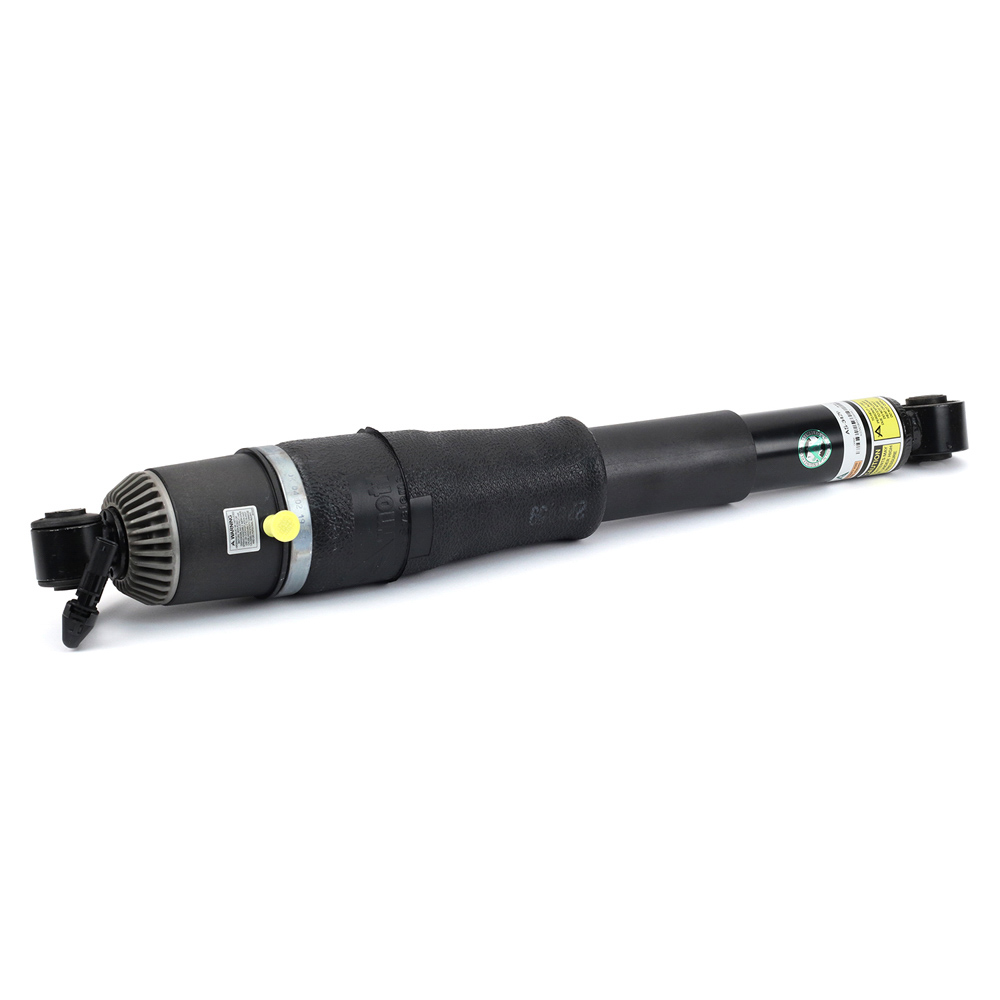

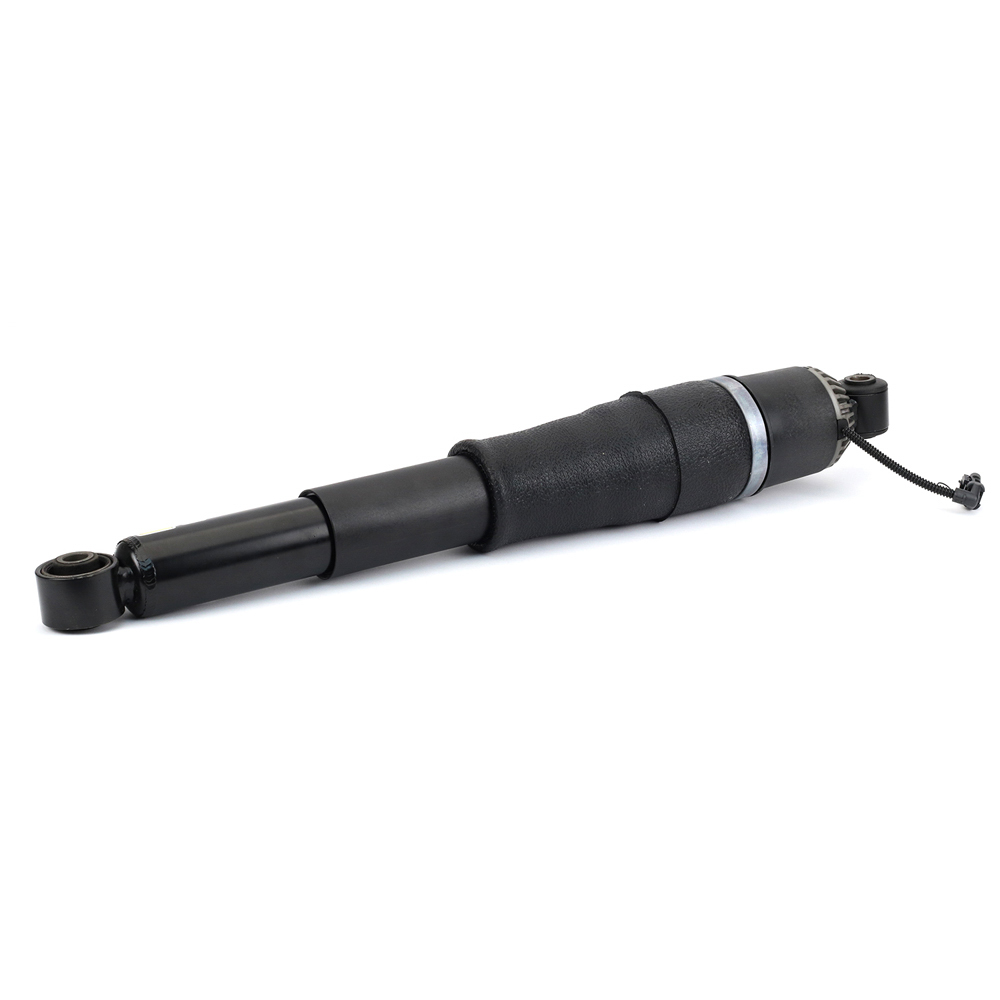

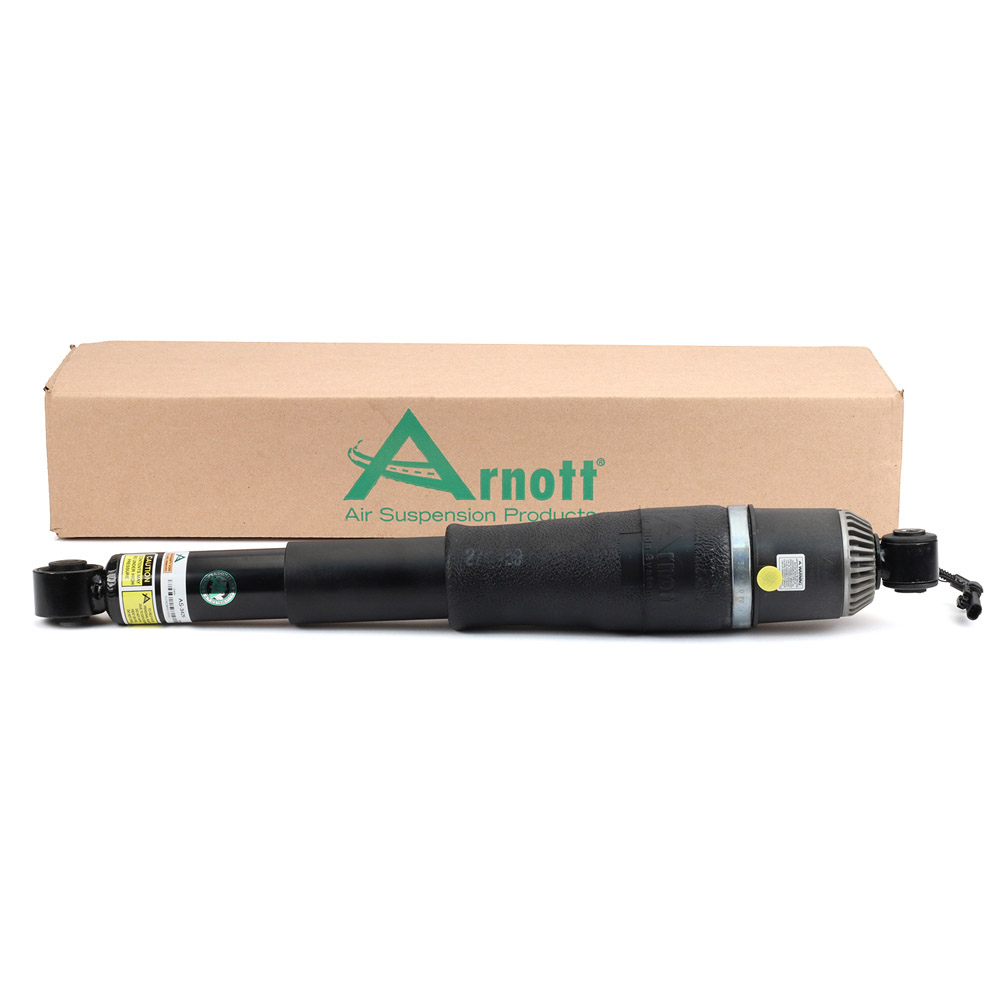

Arnott Industries New Shock Absorber

This is a New Arnott Industries Shock Absorber (Note: Arnott Industries New). SKU number U8-12775-AI

Arnott's rear air shock AS-3429 for 2015-2020 GM® trucks and SUVs (K2XX Chassis originally equipped with MagneRide) is the ideal replacement for your failing rear air assisted shock. This Arnott twin tube shock, which was engineered in the USA, includes a passive damper which has been custom tuned to deliver control, stability, and comfort. Arnott's new aftermarket rear shock bypasses the vehicle's auto-damping system and incorporates a sensor which eliminates dash panel error messages.

Travel Length - 157 MM; Compressed Length - 379 MM; Extended Length - 536 MM; Contents - Air Shock Assembly; Boot Color - Black; Body End Measuring Point - Center Eye; Internal Damper Type - Hydraulic; Lower Mount Type - Loop/Eyelet; Coil Over Springs Included - N/A; Cylinder Color - N/A; Dust Shield Material - N/A; Shock Stroke - N/A; Adjustable - No; Adjustable Damping - No; Mounting Hardware Included - No; Protective Aluminum Can - No; Spring Seat Included - No; Progressive Spring Rate - Progressive; Spring Rate Type - Progressive; Air Bladder Material - Rubber; Shock Absorber Rod End Measuring Point - Shoulder of Stud; Grade Type - Standard; Upper Mount Type - Stud; Internal Construction Type - Twin-tube; Shock/strut Design - Twin-tube; Air Adjustable - Yes; Air Ride Suspension - Yes; Bearing Plate Included - Yes; Boot/dust Shield Included - Yes; Heavy Duty Crimping Rings - Yes; Lower Mounting Isolator Included - Yes; Shock Spring Assisted - Yes; Spring Isolators Included - Yes; Springs Included - Yes; Upper Mounting Isolator Included - Yes
