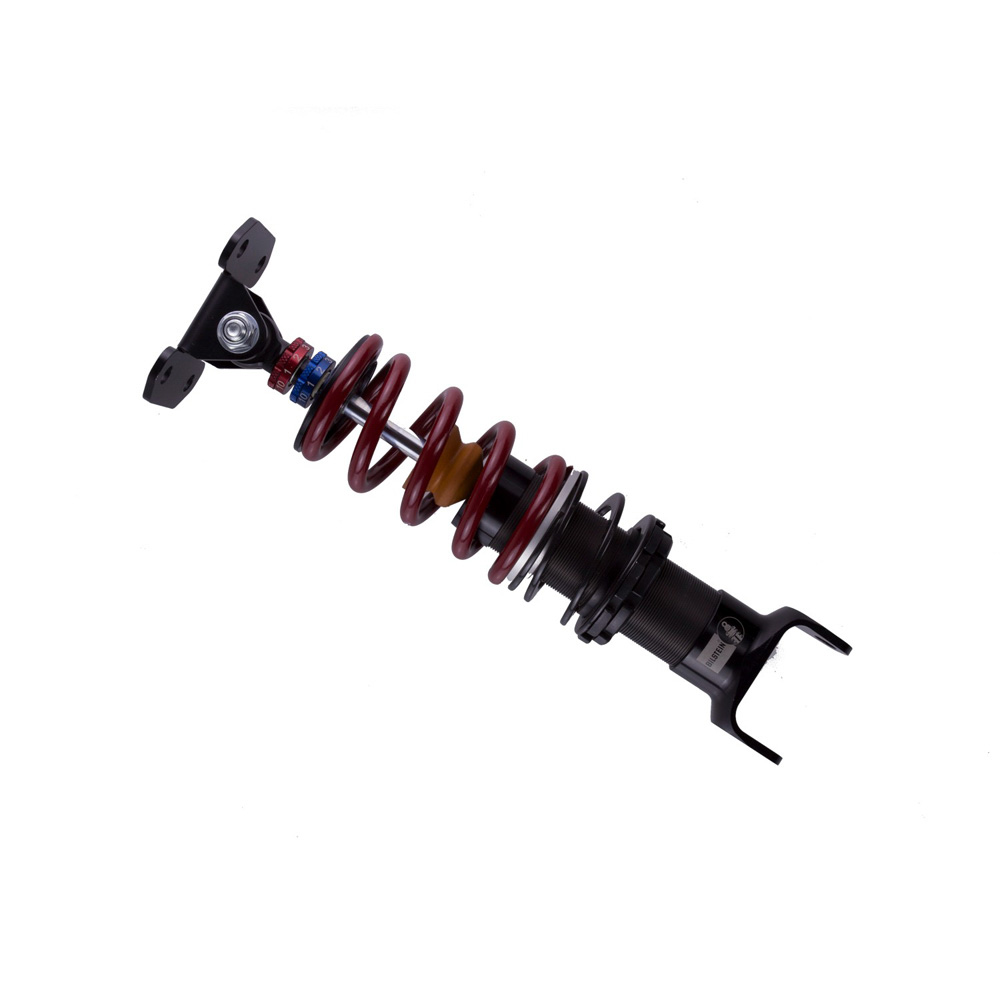

Bilstein New Shock Absorber

This is a New Bilstein Shock Absorber (Note: Bilstein). SKU number U8-14518-BBGL

Bilstein MDS (Modular Damping System) dampers are a premium motorsports product designed for professional road racing. The 2-way independent compression and rebound adjustment system provides 100 different setting variations for the ultimate in handling performance. The Easy Clip System (ECS) spring retainer system allows for rapid spring changes for easy at the track suspension tuning. MDS dampers are ideal for full-race car applications that demand exceptional versatility and fine tuning for track conditions. Bilstein MDS dampers provide proven performance and have taken many race cars to victory at races such as the 24 Hours of Le Mans and the 24 Hours of Nürburgring.

Position - Rear, Front Tender Spring Rate (lbs/in) - 228, Collapsed Length (mm) - 324.6, Upper Mount Type - 15mm Heim, Internal Design - Monotube, Body Material - Aluminum, Adjustable Damping - Double Adjustable – Compression and Rebound, Prop 65 - Short Label - WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov, Finish - Clear Anodized, PartType - Shocks / Struts, Title - Bilstein Shock Absorbers, Series - MDS, Body Design - Threaded Body (Coilover), Prop 65 (Y/N) - Y, Front Main Spring Type - Linear, Piston Type - Linear, Extended Length (mm) - 380.0, Stroke/Travel Length (IN) - 2.18, Collapsed Length (IN) - 12.78, Shaft Diameter - 14mm, Stroke/Travel Length (mm) - 55.4, Spring Hardware - N/A, Valving Identifier - N/A, Compression @0.52m/s - Adjustable, Rebound @0.52m/s - Adjustable, Boot Included - No, Extended Length (IN) - 14.96, Lower Mount Type - Clevis, Spring Seat Included - Yes, Piston Diameter - 46mm, Segment - Motorsports
