Arnott Industries New Strut
(Arnott Industries New)
Low Inventory – Order Soon.
This is a New Arnott Industries Strut (Note: Arnott Industries New). SKU number 75-20347-AI

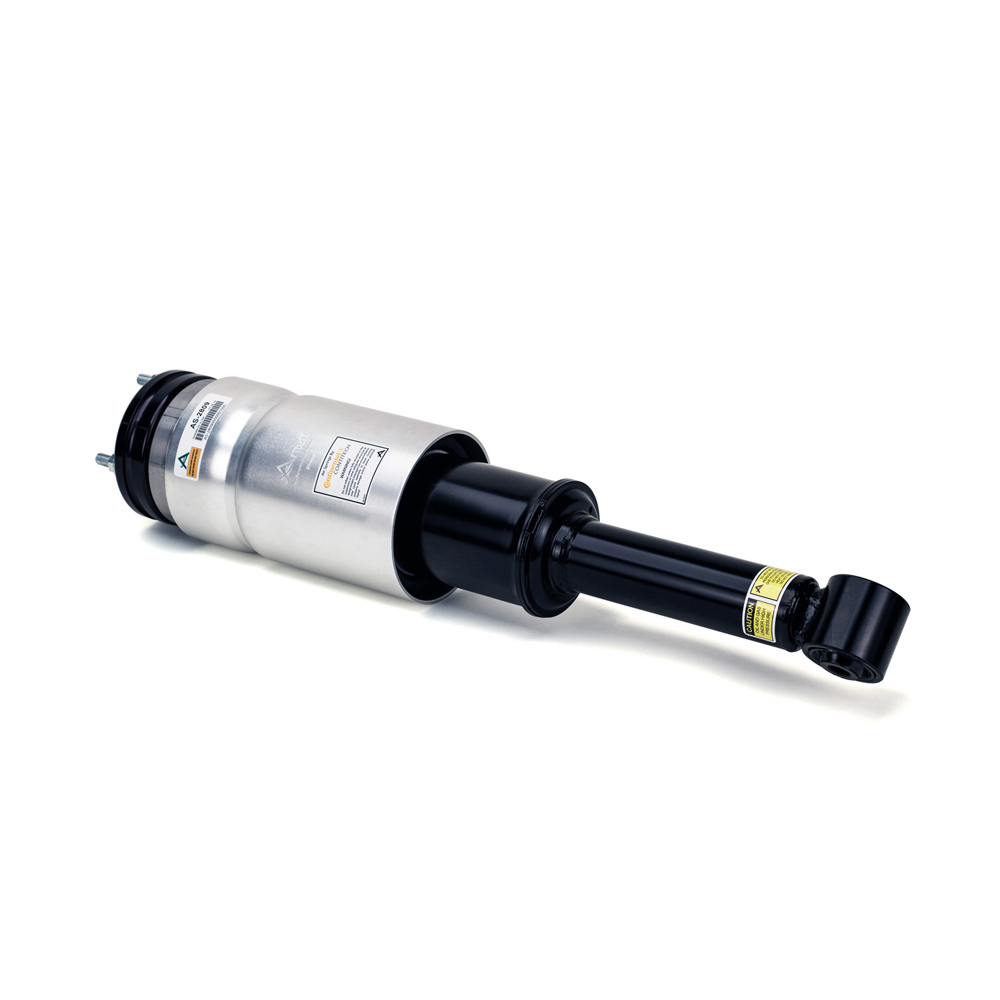

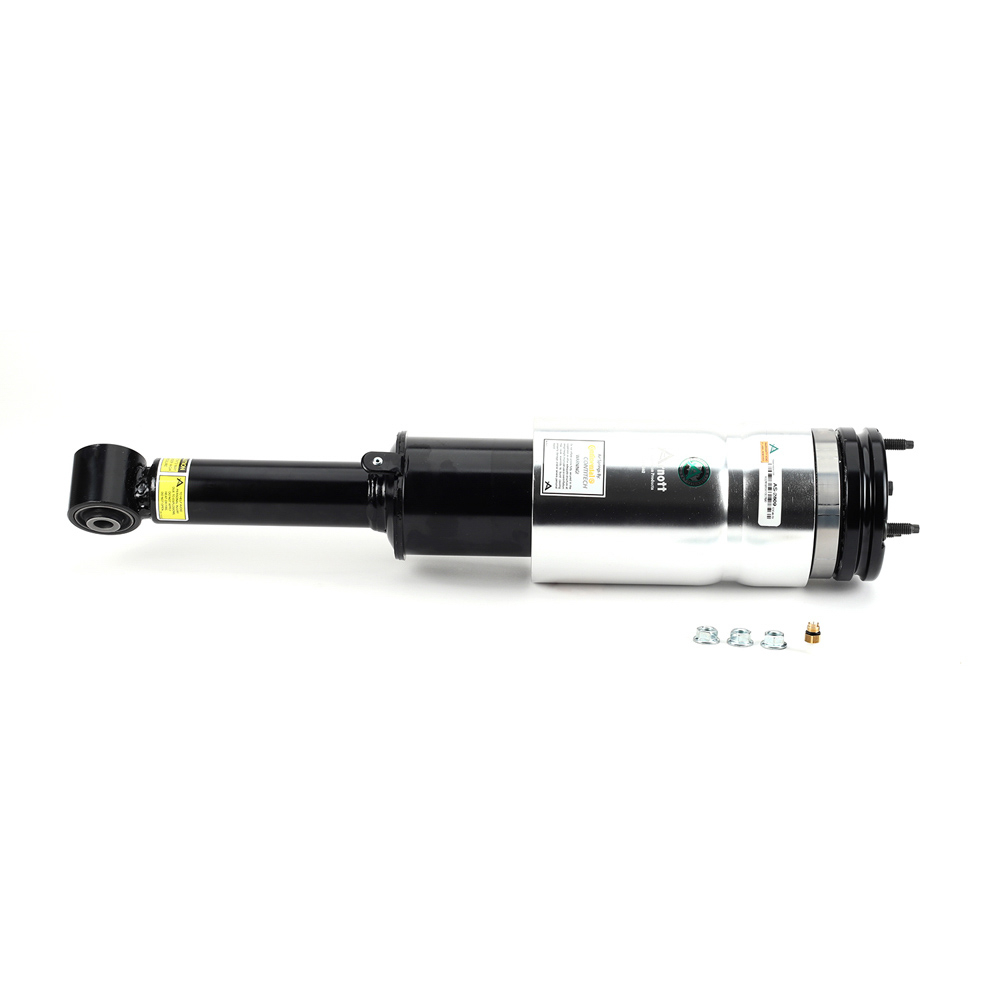

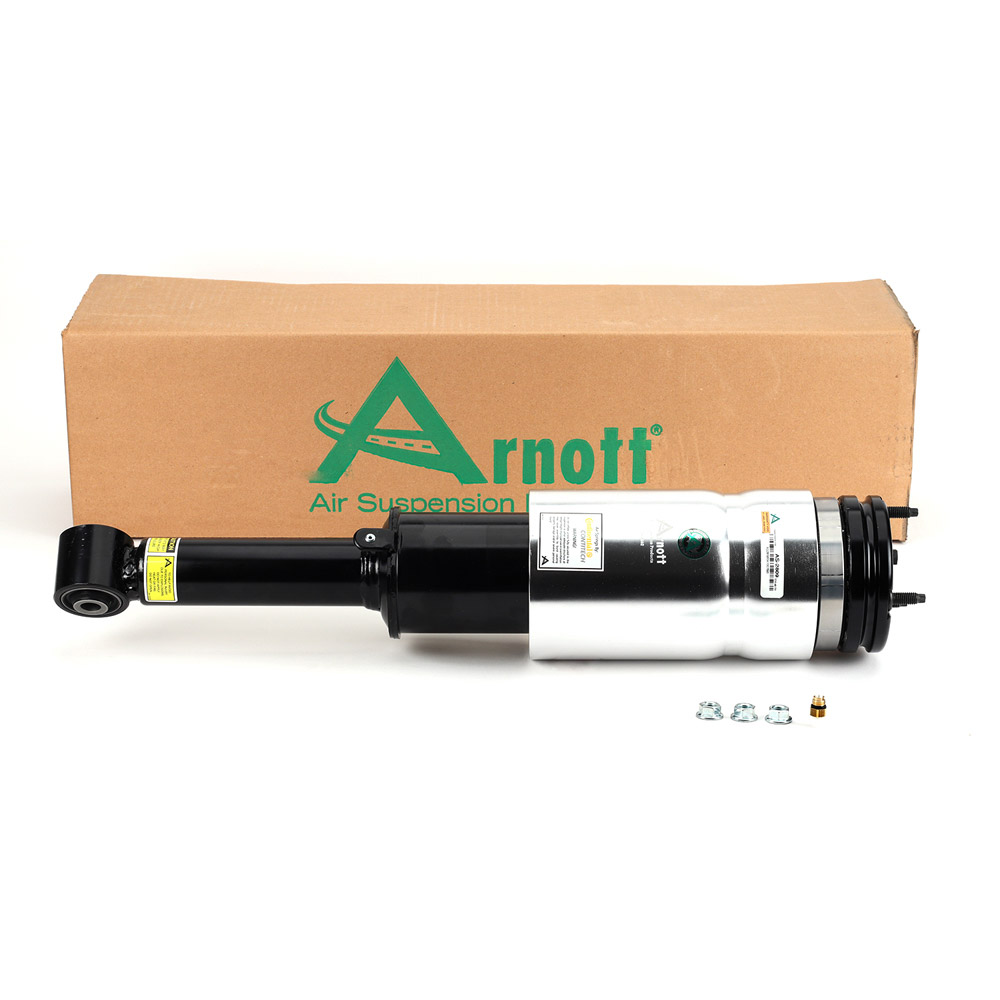

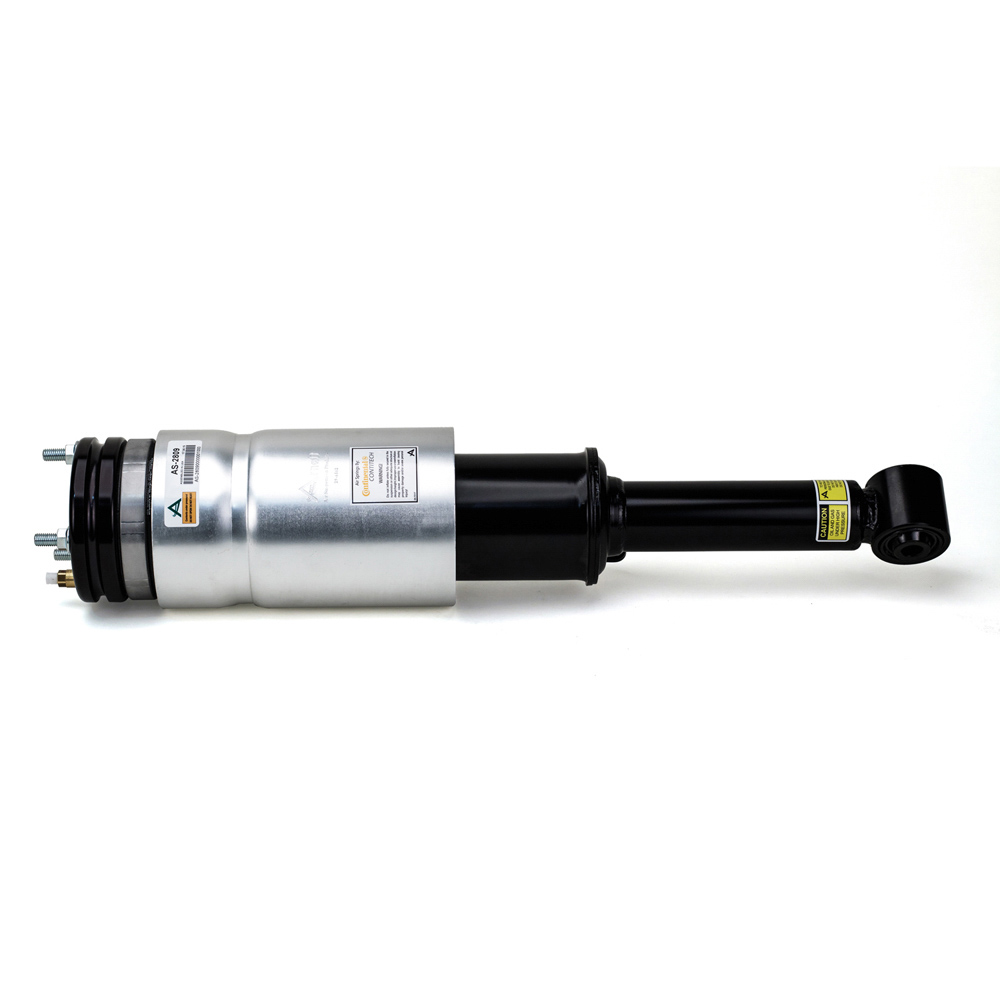

Arnott's front strut for the 2005-2009 Land Rover Discovery LR3/10-16 LR4 and 2006-2013 Range Rover Sport (including Supercharged), part AS-2809, is new and not remanufactured. This aftermarket Land Rover strut is designed and assembled in the USA. Arnott's exclusive design features a new custom-made and tuned twin tube shock absorber and is assembled with a multi-ply air spring bladder manufactured ContiTech. The strut assembly also features extra heavy duty crimping rings, new seals, air fitting and check valve, O-Rings and a black anodized aluminum top. Arnott protects the assembly with an aluminum can to keep out debris.
Travel Length - 90 MM; Compressed Length - 438 MM; Extended Length - 528 MM; Contents - Air Shock Assembly; Air Fitting; Boot Color - Black; Body End Measuring Point - Center Eye; Internal Damper Type - Hydraulic; Lower Mount Type - Loop/Eyelet; Coil Over Springs Included - N/A; Dust Shield Material - N/A; Adjustable - No; Adjustable Damping - No; Bearing Plate Included - No; Lower Mounting Isolator Included - No; Protective Aluminum Can - No; Spring Seat Included - No; Progressive Spring Rate - Progressive; Spring Rate Type - Progressive; Air Bladder Material - Rubber; Shock Absorber Rod End Measuring Point - Shoulder of Stud; Grade Type - Standard; Upper Mount Type - Stud; Internal Construction Type - Twin-tube; Shock/strut Design - Twin-tube; Air Adjustable - Yes; Air Bladder - Yes; Air Ride Suspension - Yes; Boot/dust Shield Included - Yes; Gas Charged - Yes; Heavy Duty Crimping Rings - Yes; Mounting Hardware Included - Yes; Shock Spring Assisted - Yes; Spring Isolators Included - Yes; Springs Included - Yes; Upper Mounting Isolator Included - Yes
| Specification | Description |
| Part Type | Strut |
| SKU | 75-20347 AI |
| Brand | Arnott Industries |
| Part Number | AS-2809 |
| Type | Arnott Industries New |
| Condition | New |
| Fit Type | EXACT |
| Warranty | FREE 2 Year Unlimited Mileage Warranty  More Information |
| Additional warranty options available.* View Options
2 Year
Unlimited Mileage Warranty
FREE
5 Year Extended Unlimited Mileage Warranty
$75.40
Lifetime Unlimited Mileage Warranty
$125.67
| |
| Weight | 22 Pounds |
| Box Dimensions | Height: 7.13" Length: 29.25" Width: 7.13" |
| UPC | 815710013635 |
2006 Land Rover LR3 With Air Suspension - Front Air Shock
2007 Land Rover LR3 With Air Suspension - Front Air Shock
2008 Land Rover LR3 With Air Suspension - Front Air Shock
Click Here for Full List
- 2008 Land Rover LR3 With Air Suspension - Front Air Shock
- 2009 Land Rover LR3 With Air Suspension - Front Air Shock
- 2015 Land Rover LR4 Front
- 2016 Land Rover LR4 Front
- 2010 Land Rover LR4 With Air Suspension - Front Air Shock
- 2011 Land Rover LR4 With Air Suspension - Front Air Shock
- 2012 Land Rover LR4 With Air Suspension - Front Air Shock
- 2013 Land Rover LR4 With Air Suspension - Front Air Shock
- 2014 Land Rover LR4 With Air Suspension - Front Air Shock
- 2010 Land Rover Range Rover Sport Excluding Supercharged - Front Air Shock
- 2011 Land Rover Range Rover Sport Excluding Supercharged - Front Air Shock
- 2012 Land Rover Range Rover Sport Excluding Supercharged - Front Air Shock
- 2013 Land Rover Range Rover Sport Excluding Supercharged - Front Air Shock
- 2014 Land Rover Range Rover Sport Excluding Supercharged - Front Air Shock
- 2006 Land Rover Range Rover Sport Without ACE Suspension - Front Air Shock
- 2007 Land Rover Range Rover Sport Without ACE Suspension - Front Air Shock
- 2008 Land Rover Range Rover Sport Without ACE Suspension - Front Air Shock
- 2009 Land Rover Range Rover Sport Without ACE Suspension - Front Air Shock
Interchange Part Numbers
