Arnott Industries New Strut

This is a New Arnott Industries Strut (Note: Arnott Industries New). SKU number 75-23691-AI

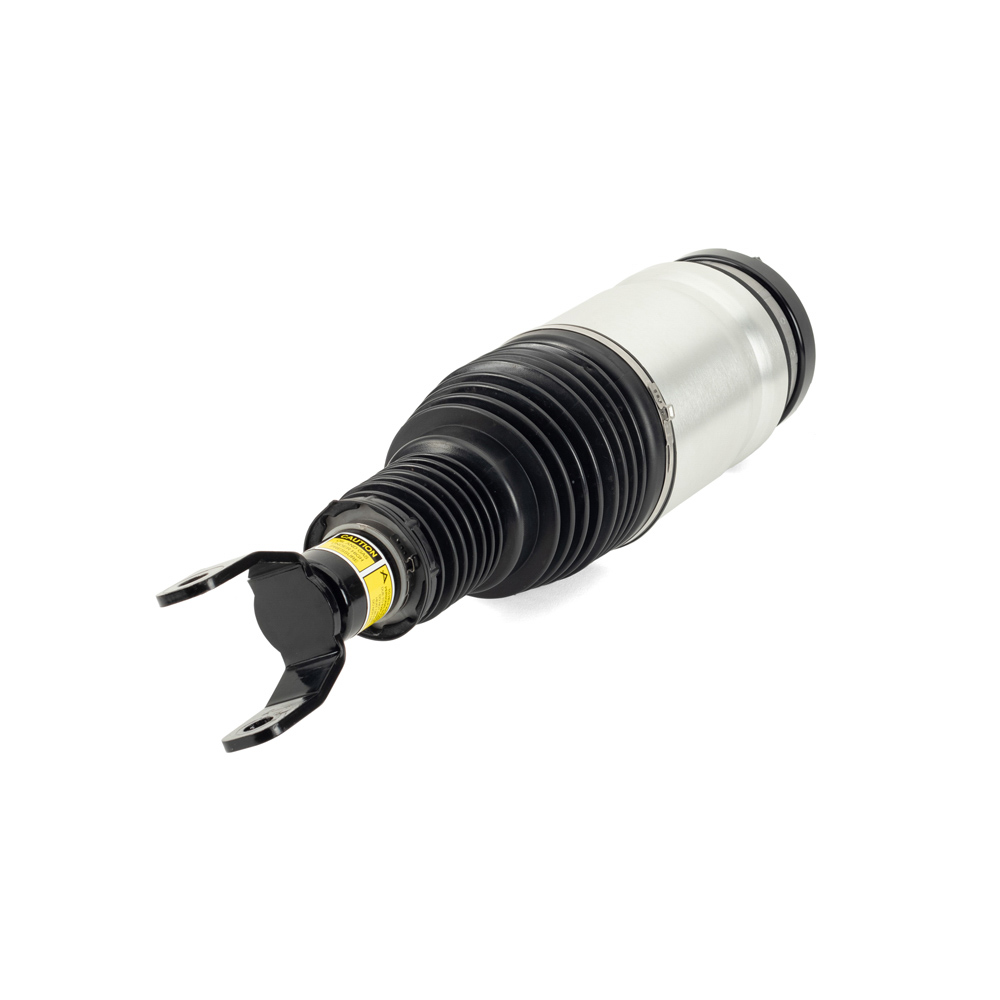

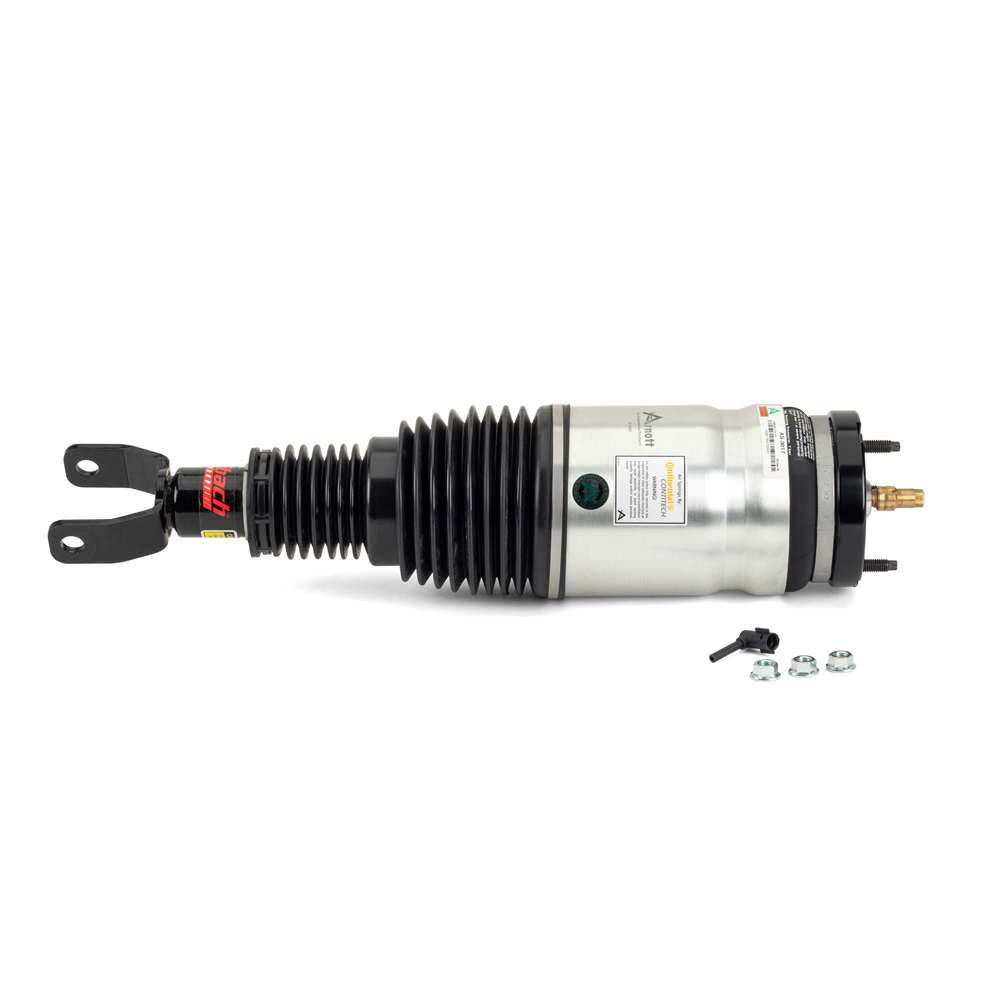

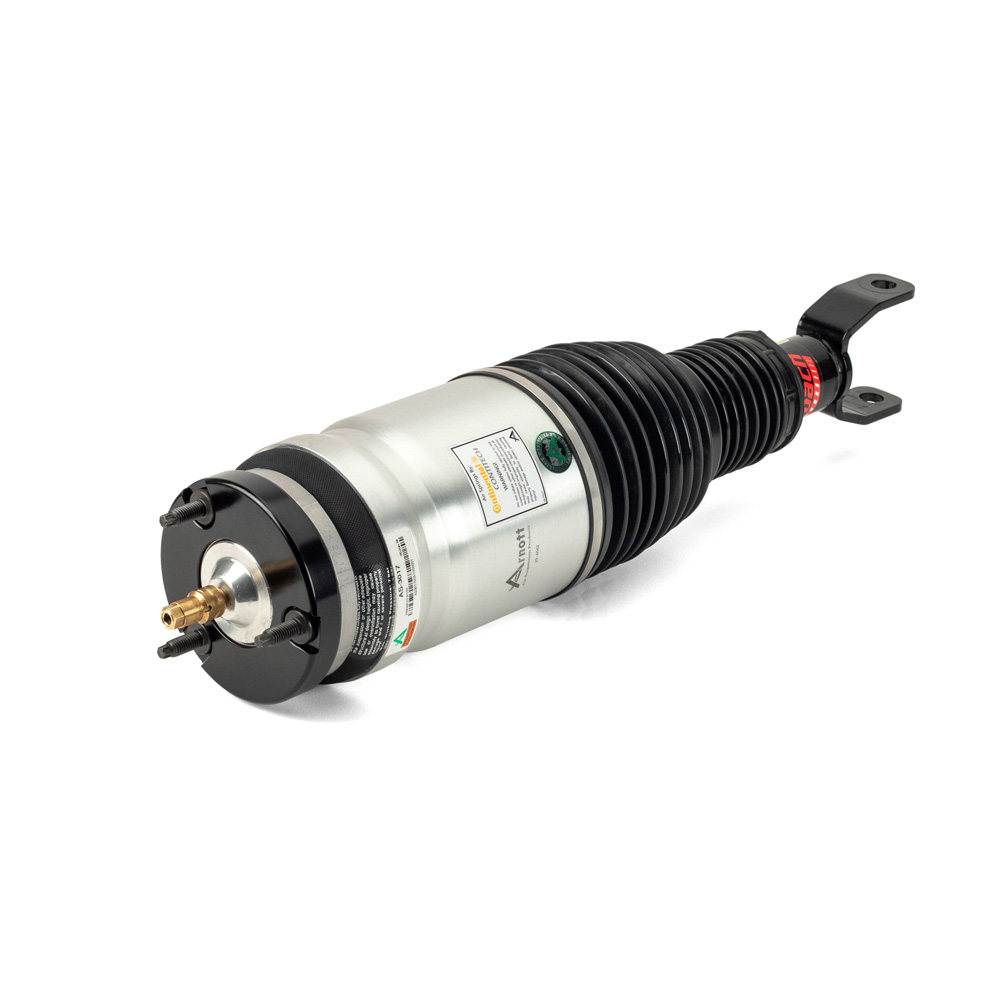

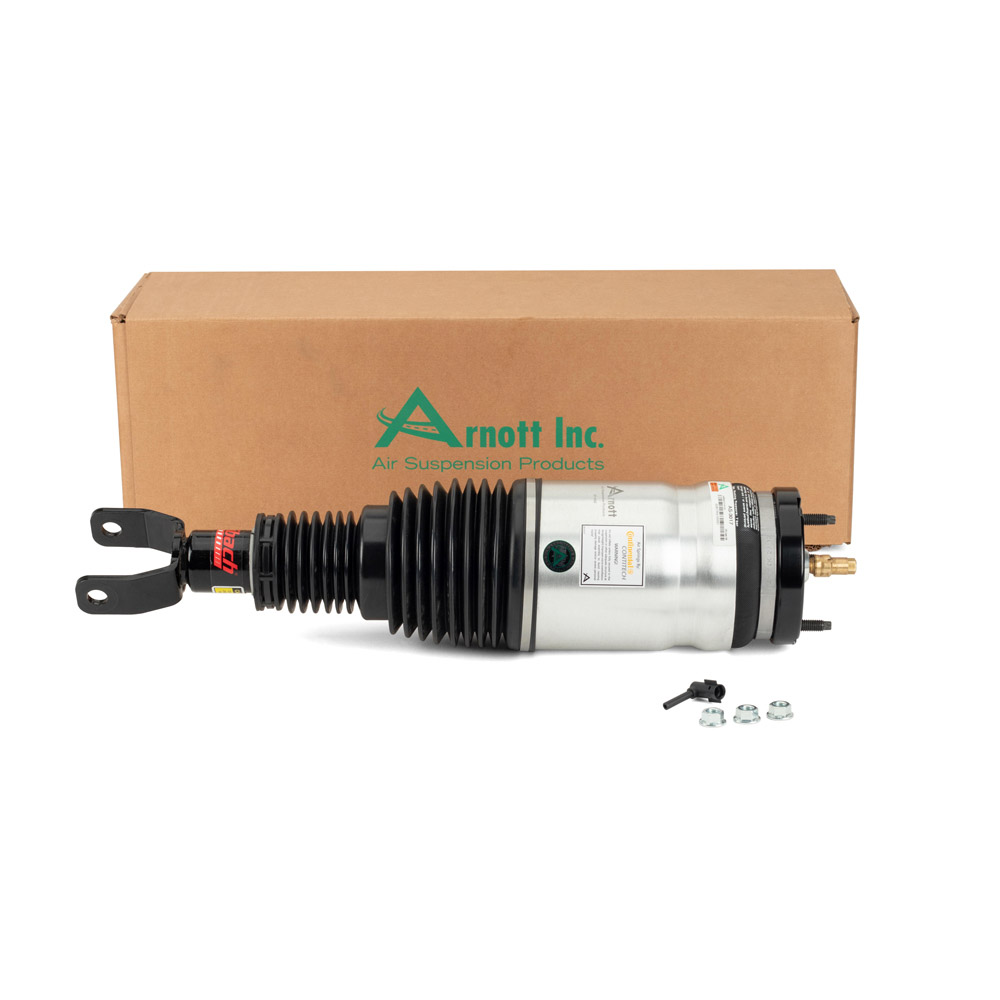

The Arnott designed new Front air suspension strut AS-3017 for the 2013-2018 Dodge Ram 1500 (DS) is new and not remanufactured. Arnott's exclusive design fits both the left and right sides of the vehicle and features a new custom-made and tuned shock absorber valved to ride like the OE. The Arnott strut is assembled in the USA with a multi-ply air spring bladder manufactured by ContiTech and features heavy duty crimping rings, new seals, air fitting and check valve along with a CNC machined aluminum top.

Travel Length - 138.5 MM; Compressed Length - 361.5 MM; Extended Length - 500 MM; Contents - Air Shock Assembly; Mounting Hardware; Boot Color - Black; Body End Measuring Point - Center Eye; Lower Mount Type - Clevis; Internal Damper Type - Hydraulic; Internal Construction Type - Monotube; Shock/strut Design - Monotube; Coil Over Springs Included - N/A; Dust Shield Material - N/A; Adjustable - No; Lower Mounting Isolator Included - No; Spring Seat Included - No; Progressive Spring Rate - Progressive; Spring Rate Type - Progressive; Air Bladder Material - Rubber; Shock Absorber Rod End Measuring Point - Shoulder of Stud; Grade Type - Standard; Upper Mount Type - Stud; Air Adjustable - Yes; Air Bladder - Yes; Air Ride Suspension - Yes; Boot/dust Shield Included - Yes; Heavy Duty Crimping Rings - Yes; Mounting Hardware Included - Yes; Protective Aluminum Can - Yes; Shock Spring Assisted - Yes; Spring Isolators Included - Yes; Springs Included - Yes; Upper Mounting Isolator Included - Yes
