Sanden AC Compressor Cylinder Head Porting Guide



7 SD R134a COMPRESSOR SERIES



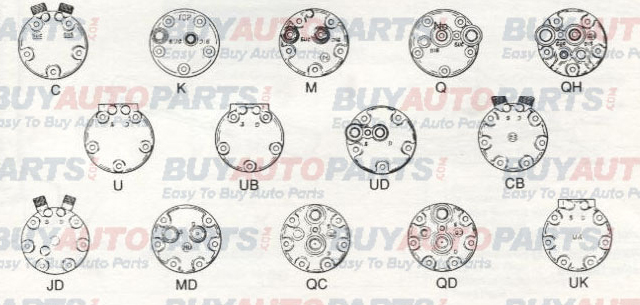

Sanden AC compressor units come in many shapes and sizes for numerous applications: the 5H15, 7H13, 7H15 and 7H15HD/SHD which will each have a specific flow and pressures. Regardless of the type of the AC compressor, it performs the same function. The compressor compresses the low-pressure gaseous refrigerant and sends it to the AC condenser. This central component should be installed carefully as suggested in the owner's manual. The Sanden AC compressor cylinder head porting guide below gives the suction/discharge port dimension types, position on the cylinder head and other information for the proper mounting of the AC compressor.



For SD5H14, SD7H13, SO7H15 and SD7H15HD/SHD Units:



Hose Port Information SD Compressor Series
Sanden Service
Kit Part No.
Name Position on
Cyl. Head
Suction Port
Dimension/Type
Discharge Port
Dimension/Type
TPS or
Switch?
5H14 7H13 7H15 7H15
HD/SHD
9580-9630 C Vertical 1*- 14 Rotolock Tube-O 1"- 14 Rototock Tube-O No
TBD FL Vertical #10 Tube-O (7/8* thd.) #8 Tube-O (3/4* thd.) No
9034-9630 K Horizontal #10 Tube-O (7/8* thd.) #8 Tube-O (3/4* thd.) No
9699-9630* M Horizontal 1*- 14 Rotolock Tube-O 1*- 14 Rotolock Tube-O No
9150-9630* Q Horizontal GM Pad, 3/8" - 24 Bolt GM Pad, 3/8* - 24 Bolt No
9695-9630* QH Horizontal GM Pad, 3/8" - 24 Bolt GM Pad, 3/8* - 24 Bolt Yes
9298-9630* U Vertical Pad-M10 x 1 Bolt Pad-M10 x 1 Bolt No
9517-9630* UB Vertical Pad-M10 x 1.25 Bolt Pad-M10 x 1.25 Bolt No
9516-9630* UD Horizontal Pad-M10 x 1.25 Bolt Pad-M10 x 1.25 Bolt No
7412-9630 CB Vertical 1*- 14 Rotolock Tube-O 1"- 14 Rotolock Tube-O No
7832-9630 JD Vertical #10 Tube-O (7/8* thd.) #8 Tube-O (3/4* thd.) No
7863-9630 JE Vertical #10 Tube-O (7/8* thd.) #8 Tube-O (3/4* thd.) No
7862-9630 KG Horizontal #10 Tube-O (7/8* thd.) #8 Tube-O (3/4* thd.) No
7406-9630* MD Horizontal 1*- 14 Rotolock Tube-O 1"- 14 Rotolock Tube-O No
7433-9630 QC Horizontal GM Pad, 3/8" - 24 Bolt GM Pad, 3/8" - 24 Bolt No
7484-9630 QD Horizontal Pad-M10 x 1.25 Bolt Pad-M10 x 1.25 Bolt No
7200-9631 UK Vertical Pad-M10 x 1.25 Bolt Pad-M10 x 1.25 Bolt No



A.) Sanden R134a compressors do not offer the option of charging valves on the compressor.



B.) *Indicates that a compressor featuring this cylinder head should not be mounted with the suction port at the bottom.
