How To Install Disc Brake Conversion Kit (BuyAutoParts Part # 71-20010)

The basic process for a disc brake conversion is very straight forward, but there are always small steps that can be missed. The best way to avoid these small steps is to have a step-by-step installation guide and a mechanic who knows the process. The following article explains how to install a Ford 9" rear end disc brake conversion kit:

FORD 9" REAR END DISC BRAKE CONVERSION KIT



How to install brake conversion kit

Parts included:

Parts Included with this kit:
PART #DESCRIPTIONQUANTITY
BR9ASETcontains (2) BR9A bracket and (2) FL9A1 bag
BR9BSETcontains (2) BR9B bracket and (2) FL9B1 bag
BR9CSETcontains (2) BR9C bracket and (2) FL9C1 bag
CSB9Caliper Bracket2
HWIC9Hardware Kit1 bag
HSDBK-10mmBrake hose2
EBK-9Emergency Brake Kit1 bag
BHC92 brake hose mounts and 2 clips1 bag
NR172/NR173Left & Right brake caliper1 box
5560Rotors2
Performance upgrade parts:
5560-10LX/RXCross Drilled & Slotted Rotors2
HSDBK-SS-10mmStainless Steel Braided Hoses2
Not included parts required for proper operation:
PV4Disc/Disc Proportioning Valve1
1 1/8" Bore Master Cylinder1
We also strongly suggest replacing the Axle Shaft Seals during installation of this kit.
Optional parts (not included with basic kit):
Power Booster
Master Cylinder
Proportioning Valve Kit
Vacuum Hose & Fittings

Preparing:

Preparing your vehicle to install your brake system upgrade

1- Rack the vehicle.

2- If you don't have a rack, you must take extra safety precautions.

3- Choose a firm level ground to raise the vehicle.

4- Check the front wheels.

5- Once the vehicle is raised, jack stands should be used for support.

6- The transmission will be placed in park (reverse, if manual transmission).

7- The wheels should be allowed to hang free to relieve tension from the springs.

IMPORTANT: NEVER rely on jacks to support a vehicle! Always test the steadiness of your stands before attempting to work on a raised vehicle!

Components to inspect, replace or upgrade during installation of disc conversion kits:

Shocks and hardwareProportioning ValveProportioning valves
Brake linesStainless steel brake linesStainless steel hardware

Suggestions:

- Take time to identify any suspect parts that are not included in the kit.

- Make upgrades such as converting to polyurethane bushings, performance springs, etc.

- Plan the installation of the replacement parts during the conversion install process.

- Check for the interference with the exhaust system before installation.

- Check for the proper master cylinder bore size.

Slide Hammer ToolDrum brake toolFlare wrench setWheel chocks
3.18" ratchet drive set3/8" Allen wrench or socketJack standsBrake spring pliers
Box end wrench setDifferential FluidTire ironBrake bleeder wrench
PliersScrewdriverSnips
Brake FluidLine bending tool
555-80086
Disc brake quietWheel bearing grease
Caliper slide greaseBrake cleanerHand cleaner

Instructions:

Note: The rear axles must be removed to install this kit!

1. Prior to disassembly, spray nuts and bolts with a penetrant.

2. Remove the rear tires.

3. Disconnect the brake lines from the old drum brakes.

4. Remove the old brakes and backing plates. The "T" bolts must be removed first.

brake conversion kit

5. Now, pull the rear axles out of the rear end housing by using an axle puller. This will ensure that no damage is done to the axle flange or bearings.

6. Now you can remove the drum backing plate and disconnect the emergency brake.

7. Clean the rotors using brake cleaner first, then with soap and water. Dry with a clean towel.

8. Check to make sure that the axle flange is 61/8" in diameter or smaller. (Trial fit the rotor to the axle flange.) This will ensure that the rotor will mount flush to the axle flange. (If the axle flange is larger than 6 1/8", you will need to machine it down to the proper size.) If you have aftermarket axles, consult the manufacturer before machining them.

9. Clean the axle housing flanges and where the axle bearing seats.

10. Now, you will need to determine which set of spacers and brackets you require for your car. Each set has been individually bagged for ease of identification. The easiest way to identify which set you will use is to check the holes in the spacer plate (in bags labeled A, B, and C) to see if they align with the holes in your axle housing.

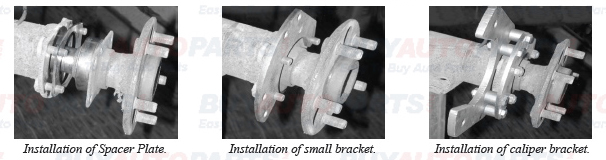

11. Once you have determined the proper bracket set, install the axle spacer plate followed by the axle. (The spacer plate will take the place of the backing plate.).

brake conversion kit 1

12. Install the primary bracket so that the calipers will be mounted up and toward the rear of the car.

13. Now, re-install and tighten the bearing retainer nuts.

14. Take the supplied bolts, and install them on the primary bracket. Use the spacers that are also provided, and install them onto the bolts. (See Figure 1).

brake conversion kit 2

15. Bolt the secondary bracket to the primary bracket and tighten the nylock nuts.

16. IMPORTANT: Check to be sure the axle retaining "T" bolt heads clear the edge of the secondary bracket! If the "T" bolts interfere with the secondary bracket, it will be necessary to trim the bolt head to allow it to seat properly.

17. Install the new rotor onto the axle flange. (Note: Use two or three wheel nuts to hold the rotor in place so you can complete the installation. Only hand tighten the wheel nuts so that you will not damage or warp the rotor.) Now, rotate the rotor and check that the rotor runs true. You also want to be sure that nothing is interfering with the rotation. To be sure that the rotor is flush to the axle flange and is all the way over the axle center pilot, insert some strips of paper between the back of the rotor and the axle flange. If you cannot pull the paper out easily, then the rotor is all the way on.

18. The installation of the rear caliper has three steps:

A. Physically installing the caliper.

B. Physically setting up the emergency brake.

C. Emergency brake adjustment.

19. With the rotor and caliper bracket installed, locate the two metal slider sleeves that the mounting bolts go through (Fig. 2).

brake conversion kit 3

20. With your thumbs, press the slider sleeves flush against their tabs to allow the caliper to be installed into the caliper bracket smoothly. (Fig. 3) Prior to inserting the caliper into the bracket, you need to make sure that the pads are installed correctly.

brake conversion kit 4

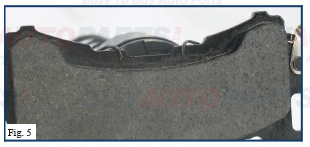

21. The inboard pad has a special clip (Fig. 4) that snaps over the caliper piston and rests in a groove on the piston. The pad has notches into which the tabs of the clips fit. (Fig. 5).

brake conversion kit 5
brake conversion kit 6

22. Now, insert the caliper, with the pads installed, into the caliper bracket. The bleeder screws and springs should be at the top with the caliper on the rear of the axle.

23. It may be necessary to retract the caliper piston to allow the brake pads to clear the rotor.

24. To retract the piston, remove the spring on the emergency brake. Be sure to note the position of the spring. Next, remove the nut and its lever. Be sure to note the position of the lever.

25. Move the piston in or out, as needed, by turning the shaft with the wrench positioned on the integrated hex nut. You may also use the lever to adjust piston depth.

26. Re-install the bracket, spring, and pads. Install the caliper into the caliper bracket, and press the slider sleeves up against the caliper bracket and tighten down the 2 mounting bolts using an Allen wrench. If needed, install the bracket shims between the axle and the caliper bracket in order to center the caliper over the rotor.

27. Test spin the rotor, and once it is centered, tighten down the bracket.

28 Proceed to setting the emergency brake.

29. If you have not already done so, remove the original drum brake cables from the vehicle.

30. You will be using the front and middle sections of the original drum cable setup.

31. Next, feed the end of the new cable through the spring and locate, but do not install the cable into the notch on the lever yet.

32. Now, take the clip provided with the kit and stake it over the emergency brake cable to steady the cable against the caliper. Save the old emergency brake clip so you can check the new brake clips for the proper size.

33. With the system physically assembled, proceed to the adjustment of the E-brake setup.

34. Attach the flexible brake hose to the caliper and then to the hard line. Now attach the E-brake cable to the caliper. The parking brake cables are supplied to bring you to a central point. It is the customers' responsibility to tie the cables into the system!

35. Bleed the brakes and test for a full pedal. If the back wheels skid before the front you should install a proportional valve to reduce the pressure to the rear brakes.

Caliper Adjustment:

Rear caliper adjustment:

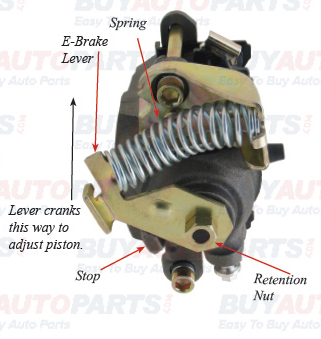

When installing rear disc brakes with calipers that have an internal parking brake, you must adjust or set the calipers when installing. Failure to do so will prevent you from getting a firm pedal and you will have no rear brake function. Only do this adjustment with the caliper and rotor installed on the vehicle. You must set the parking brake every time you park to keep the calipers adjusted.

brake conversion kit 7

Initial adjustment:

1. Remove the spring.

2. Crank the lever or turn the retention nut to actuate the lever forward.

3. After cranking the lever forward as far as it will go, rotate it back the other way until you hit the stop. You may need to use a long screwdriver to lever the lever back into place.

4. The rear caliper should now be correctly adjusted.

5. Re-install the spring.

IMPORTANT: You must use the parking brake mechanism on a regular basis to set the self adjusting calipers. Failure to use the rear parking brake will result in rear brake loss!

Booster & master cylinder installation (If purchased with kit):

1. Disconnect the old master cylinder lines (Remember, if operating around painted surfaces, avoid brake fluid to paint contact). Remove any valves that are installed in the drum system and discard them. If the vehicle has a pressure differential switch, it must also be removed. Remove the old master cylinder.

2. When changing from a manual brake system to a power system, the clevis assembly that attaches the push rod to the brake pedal must be removed and lowered one inch. If two holes are in the pedal, use the lower hole for the power booster rod attachment. If only one hole exists from the manual system, a second hole must be drilled one inch lower. Remove the clip and pin that attaches the clevis to the brake pedal and retain them. If the lower hole does not already exist, one must be drilled. Screw the clevis assembly onto the new push rod on the booster about 1/2”.

3. Mount the booster to the fire-wall with the existing studs or bolts. Place the clevis assembly into the lower hole in the pedal and install the pin and clip.

4. Install the proper fitting into the intake manifold for vacuum. Connect the vacuum hose from the engine to the power booster. YOU WILL NEED AT LEAST an 18” VACUUM TO OPERATE A BOOSTER.

5. Bench bleed the master cylinder with the supplied bleeder kit.

6. Install the master cylinder onto the booster.

7. Mount the combination valve to the supplied bracket and attach the bracket and lines as shown in fig. 4.

8. You will now need to run two lines from the supplied combination valve to the frame. Tie the lines into the existing front and rear lines with the brake line couplers. You may run two separate lines from the combination valve to each front wheel or you may plug one outlet to the front, run one line and then split it to each front wheel.

Proportioning Valve:

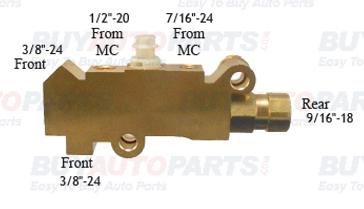

Install lines as shown in diagram:

The most common proportioning valve plumbing is shown. An alternative plumbing method is to plug off the top front line and have the bottom front line go to a "T" fitting. From the 't' fitting, the front lines are then split off to the left and right calipers.

brake conversion kit 8

Testing the proportioning valve for proper operation:

1. Use a test light by attaching a clip to a positive contact on the vehicle and touch the point of the tester to the electrical connection of the combination valve. If the light does not come on, the valve system is operating correctly and no further testing is required.

2. If the light does come on, this indicates that the pressure differential valve is stuck in the front or rear position.

3. Bleed the brake system to determine if the front or rear lines are blocked off. Set up one front wheel and one rear wheel for bleeding at the same time. Crack both bleeder screws and gently pump the pedal a few times. The blocked side will trickle fluid out when the bleeder screw is cracked and the pedal pressed. An unblocked line will squirt fluid out of the bleeder.

4. The lines that are clear must be left open, and the blocked lines should have the bleeder screws tight to cause pressure to build up on that side. Be sure to use the standard bleeding procedures to prevent air from entering the system.

5. Slowly press the pedal with steady pressure a number of times until the light goes out; this will center the differential valve. You may also hear a pop come from the proportioning valve. This is the metering valve returning to its equalized position. When the light goes out, close the bleeder screw.

What to do if you suspect your booster is not working?

It is rare that one of our kits will contain a defective power booster, but if you suspect that your booster is not functioning correctly perform the following tests:

Basic test:

1. With the engine off, depress and release the brake pedal several times to eliminate vacuum from the power section.

2. Depress the pedal and hold down with light pressure of 15 to 25 pounds.

3. Start the engine.

4. If the power unit is operating, the pedal will drop slightly. Less pressure will be needed to hold the pedal down.

Brake Booster Issues:

If the booster is not operating (hard brake pedal):

1. Disconnect the vacuum hose from the booster check valve and check the vacuum level at this point with the engine running with a vacuum gauge. You should have at least an 18” vacuum. Anything lower will begin to give a hard pedal. If the vacuum level is below 18", you may be able to tune the engine and bring the vacuum level up to that level. If the vacuum level is around 16”, the addition of a vacuum reserve canister will improve the braking. If the vacuum level is below 16”, you will need to add an electric vacuum assist pump to supplement the engine vacuum.

2. If the vacuum level at the check valve is 18", check if the booster check valve is working. Disconnect the vacuum hose at the check valve and attach a piece of tubing. Blow into the valve. If air passes through the valve, it is defective and must be replaced. Remember to look into the hose attachment neck on the check valve and be sure there is no obstruction inside the valve.

3. Check your booster for a vacuum leak. With everything hooked up, run the engine at moderate speed. Release the accelerator and turn the engine off. Wait for 90 seconds and apply the brakes. If the brake applications are power assisted, there is no leak. If there is no power assist, the booster is defective and must be replaced.

If the booster is operating but the pedal is still hard:

1. Your combination valve may have tripped, shutting off fluid flow to the front or rear brakes. This condition will produce a very hard pedal. Check that fluid passes through the valve to both the front and rear by cracking a bleeder screw and observing a good flow of fluid. If one half of the system does not have flow, re-center the valve.

2. You may have frozen rear wheel cylinders or frozen caliper pistons. If these components freeze, you can get a very hard pedal.

3. Your pedal ratio may be too low. The pedal ratio must be in between 4:1 to 5:1. Some of the older cars that had power brakes used a ratio of almost 1:1. If you add a vacuum booster to this type of car, you will have a very hard pedal. Typically, we are talking about cars of the late 1950s . Adjust the ratio as necessary.

brake conversion kit 9

4. Your booster may be undersized for the weight of the vehicle or the bore size of the master. If you try to use a small diameter booster, such as a 7” street rod booster for a heavy car, you will get a very hard pedal. Compounding the problem is an attempt to use a large bore master (1-1/4” or larger) on a small booster.

Brakes grab and pedal is sensitive:

1. Your pedal ratio may be too high. Power brakes will require a 4:1 to 5:1 ratio. If your ratio is around 6:1, you are getting too much mechanical advantage, making the brakes extremely sensitive. Adjust the ratio to the correct level.

2. The booster may be too large for the weight of the vehicle. Lightweight vehicles with large boosters give you "touchy brakes". This effect may be dampened somewhat by going to a larger bore master.

3. Too large a booster for front drum brakes: Drum brakes do not require as much pressure as disc brakes (500 psi vs. 1,000 psi). If your booster is very large (11”) and you have drum brakes, you are over-boosted. Do a pressure test to determine what you have.

4. The booster has a cracked internal hub: When there is a crack in the phenolic hub inside the booster, it will be either totally on or totally off. Any slight pressure to the pedal will cause the brakes to lock up and the booster must be replaced.

Poor Brake Pedal:

TEN REASONS FOR A POOR BRAKE PEDAL

CAUSE

REASON

Bleeder screws on calipers not on top.The bleeder screws on calipers must be at the 1200 position on the caliper to allow all the air to escape during bleeding. A very common mistake installers will make is to reverse the side the caliper goes on giving you a situation where the caliper bleeder screw is facing down. Ifs also common to use the wrong caliper on a bolt on disc kit giving a situation where the bleeder hole is shifted from the 12:00 position producing a pocket of air at the top of the caliper bore which can not be dislodged. Check your bleeder hole orientation.
A defective master cylinder which does not hold pressure.If brake fluid bypasses a pressure seal on a master cylinder you will get a pedal that fades. To test for this obtain two inverted flare plugs at an auto parts store and plug both master cylinder outlets. Try your pedal. If the pedal is high and firm the master is good. If the pedal fades the master is bad. Replace master as necessary.
No residual pressure valve to rear drums.Drum brakes require the use of a 10 lb residual pressure valve in the line This residual pressure counter balances the drum brake spring tension keeping the shoes close to the drums. This results in a higher firmer pedal. You can test this by clamping off the rear hose removing the rear drums from the system. Now test your pedal. If the pedal gets better you will need to splice a 10 lb residual pressure valve into the rear line.
Hard line that loops up.Hard brake line that loops up and then back down will tend to trap air. It doesn't take much air to cause problems so check your lines carefully.
Incorrect roaster cylinder.If the bore size of the master cylinder is too small for the fluid requirements of the system you will get a very poor pedal This will happen most frequently with four piston calipers and with four wheel disc brakes. The only solution for this is to install a larger bore master cylinder or a true four wheel disc master.
Incorrectly bled or adjusted rear calipers.Rear calipers that have an internal parking brake with a lever can be troublesome. These calipers must be adjusted so that the piston is moved out and the pads are close to the rotor. If this initial adjustment is not made the pistons will trawl outward during activation but no squeezing of the rotor will occur. This can be checked by clamping off the rear hoses and checking if the pedal gets better. Adjust as necessary.
Incorrect booster pin length.The booster pin that pushes on the master cylinder must almost be touching the master cylinder piston face. A gap larger than 1/32" will begin to introduce a spongy pedal Adjust as necessary.
Silicone brake fluid.While silicone fluid is great because it does not attack paint it also aerates very easily and can give a spongy pedal.
Rear wheel cylinders too large.Rear drum wheel cylinders that are too large will give a poor pedal. Check as in step six above.
Loose from wheel bearings.Loose front wheel bearings will cause rotor wobble. This will cause the caliper pistons to retract too far into the caliper giving a spongy pedal every time you hit the brakes. Check and adjust as necessary.

Disc Brake Checklist:

UNIVERSAL FRONT DISC BRAKE CHECKLIST
Spindle properly secured to ball joints and tie rods with castle nut and cotter pin.
All mounting bolts properly tightened.
Wheel beatings property packed with grease.
Inner bearing must be installed before grease seal.
Rotor I bearings slide onto spindle with ease.
Washer, castle nut properly torqued and cotter pin installed.
Calipers installed and properly torqued.
Spin rotor and check for any interference. (If any interference is found, resolve problem before driving vehicle.)
Flex lines are properly installed with no interference.
Power booster (if applicable) installed properly.
Master cylinder bench bled according to the instructions.
All brake lines are properly tightened and free of leaks.
Turn wheels lock to lock and check for any interference.
Place wheel onto vehicle and spin the wheel to make sure there is no interference between the brakes and wheel.



UNIVERSAL REAR DISC BRAKE CHECKLIST

All bolts on base bracket properly tightened.
All caliper mounting bolts properly tightened.
Rotor slides onto axle with ease.
No interference with rotor and any other parts (splash shield, brackets, etc.).
Caliper is centered over the rotor (because of difference in axle lengths, you may have to shim caliper in or out).
No interference with caliper and rotor.
All brake lines are tight with no leaks.
Parking brake is properly adjusted and not dragging, with vehicle on ground.
Adjustable proportioning valve installed (if applicable).
Distribution block modification made (if applicable).
Brake system properly bled.



IMPORTANT: With every new set of rotors and pads, you should give your vehicle 200 - 250 miles of easy driving to properly seat the pads to the rotors. Do not take the vehicle up to 60 mph and jam on the brakes before the first 200 - 250 mile break-in period is over, or you will glaze the pads and rotors.

Disclaimer: This is not an official install or instructional guide and BuyAutoParts.com is not responsible for any damage or injury that can occur during these procedures. It is always recommended that all parts be installed by a licensed mechanic.
